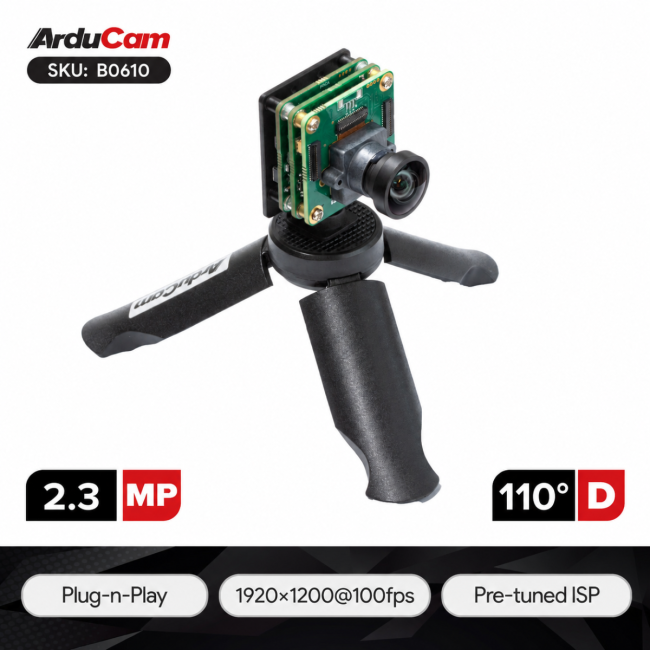

Arducam 2.3MP Color Global Shutter USB3 UVC Camera Module with Onboard ISP for Robotics and Machine Vision
SKU
B0610
- [Global Shutter] Features the selected global shutter sensor for imaging of fast-moving objects.
- [High Frame Rate] Delivers 1920x1200@100fps streaming for latency-sensitive applications
- [Plug & Play] USB3.0 UVC, out of box use is guaranteed.
- [Onboard ISP] Contrast, Saturation, Auto White Balance, Gain, Exposure (Manual/Auto)
- [High Resolution] 2.3MP (1920×1200) resolution delivers crisp detail for precision machine vision tasks
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
This plug-and-play camera module adopts global shutter image sensor (2.3MP, 1920×1200) with USB3.0 UVC compliance, ensuring zero-driver compatibility across Windows/Linux platforms. Pre-calibrated with M12 wide-angle lenses for wider field of view and precision alignment, the kit delivers motion-blur-free data for robotics navigation or other precision measurement. The onboard ISP enables real-time tuning of exposure, gain, and auto white balance, while the USB3.0 interface (5Gbps bandwidth) guarantees low-latency streaming—ideal for rapid prototyping or scalable deployment in machine vision applications.
Applications
- [Humanoid] Various of humanoid robotics applications
- [Machine Vision Inspection] Detecting defects, labels, or alignment in manufacturing lines
- [Robotic Navigation] Visual guidance for mobile robots and AGVs (Automated Guided Vehicles)
- [Barcode/QR Code Scanning] High-speed decoding in logistics and packaging systems
- [Pick-and-Place Systems] Real-time object tracking for automation arms
- [Other Robotics related applications]
Industrial & Robotics
Features
- Global Shutter Technology: Designed for capturing high-quality images of fast-moving objects, ensuring clarity and precision in dynamic environments.
- Pre-Calibrated M12 Lens: Equipped with an M12 wide-angle lens, the camera is ready for various application scenarios. Customizable alternative M12 Lenses are available.
- Plug & Play Functionality: USB3.0 UVC Support. Ensures out-of-the-box usability, allowing for easy integration without extensive setup.
- Onboard Image Signal Processing (ISP): Features adjustments for contrast, saturation, auto white balance, gain, and exposure (both manual and automatic) to optimize image quality.
- High-Res & Frame Rate: 2.3MP(1920x1080) High resolution among Global shutter cameras, the camera delivers 1920x1200@100fps streaming for latency-sensitive applications
- Long Term Supply & Long Term Support: Arducam offers long-term support for the deployment in proof of concept (PoC) or mass production. Not just production, but also with services.
Specifications
| Image Sensor | |
| Sensor | 2.3MP Color Image Sensor |
| Still Resolution | 2.3 Megapixels |
| Color Filter Type | Color |
| Shutter Type | Global Shutter |
| Optical Size | 1/2.6" |
| Output Format | MJPG/YUYV |
| Pixel Size | 3 µm x 3 µm |
| Sensor Active Area | 1920(H)×1200(V) |
| Frame Rate (USB 3.0) | MJPG:
1920x1200@100fps, 1920x1080@120fps;
1280x720@120fps, 640x480@100fps;
YUYV:
1920x1200@60fps, 1920x1080@60fps;
1280x720@120fps, 640x480@100fps; |
| Frame Rate (USB 2.0) | MJPG: 640x480@10fps |
| Lens | |
| Focus Type | Fixed Focus |
| FOV(DxHxV) | 110°(D)×98°(H)×75°(V) |
| Lens Mount | M12 Mount |
| F.NO | F2.4±5% |
| E.F.L | 2.8±5% mm |
| Default Focus Range | 0.3m to INF |
| IR Sensitivity | Integrated 650nm IR filter |
| TV-Distortion | <-1.3% |
| USB Interface | |
| Interface | USB 3.2 Gen 1 device, backward compatible with USB 2.0 hosts |
| Connector | Type-C reversible interface connector |
| UVC Compliant | No additional drivers required |
| Functionality and Compatibility | |
| Supported OS | Windows, Linux |
| Recommend Sample Application | PotPlayer for Windows, qv4l2 for Linux |
| UVC Controls | Contrast, Saturation, White Balance (Auto/Manual), Gamma, Gain, Sharpness, Backlight Compensation, Exposure (Manual/Auto) |
| Electrical and Mechanical | |
| Operating Voltage | 5 V +/- 5% |
| Power Requirements | Max: 2W |
| Camera Board Size | 34mm x 34mm |
| Overall Weight (Net) | 41.8g |
| Standard and Certifications | |
| Temperature range (Storage) | -4°F-167°F (-20°C to +85°C) |
| Temperature range (Operating) | 32°F-122°F (0°C to +50°C) |
| Certification | RoHS, CE |
Package Including
- 1 x Arducam 2.3MP Color Global Shutter USB3 UVC Camera Module
- 1 x 1m USB3 Type-C cable
Note
- This camera module supports the development of external trigger mode, frame rate, ROI, etc.. If you need these functions, please contact arducam for customization.
Documentation
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
