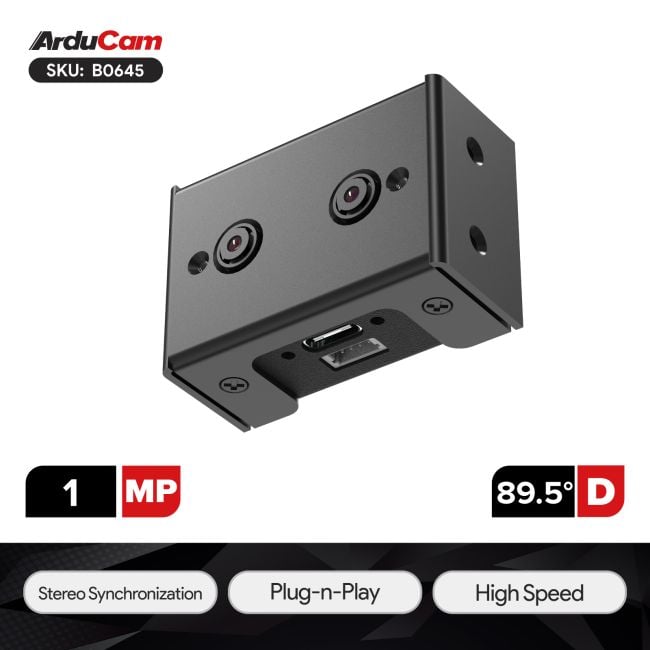

Arducam RoAD.B 1MP Color Global Shutter Synchronized Stereo Camera - 20mm Short Baseline USB2 Kit with Enclosure
SKU
B0645
- 1MP Color Global Shutter: High-speed color imaging without motion jelly effect —perfect for moving targets.
- 20mm Short Baseline: Optimized for close-range depth sensing and small-scale robotic vision.
- Hardware Synchronized: Microsecond-level frame alignment for highly accurate stereo data.
- Compact Industrial Enclosure: Rugged, pre-calibrated housing protects sensors and simplifies mounting.
- USB2 Type-C & Trigger Port: Plug-and-play UVC compatibility with customizable external trigger for system-wide sync.
- Arducam RoAD Reliability: Guaranteed long-term supply and professional B2B technical support.
$84.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
The Arducam RoAD.B 1MP Color Global Shutter Kit is a specialized binocular vision system designed for short-range spatial awareness. Featuring an ultra-compact 20mm baseline, this camera excels at providing depth data for objects very close to the lens—an area where wider stereo cameras often lose focus or accuracy. Its combination of color fidelity, global shutter performance, and a protective industrial enclosure makes it a "ready-to-deploy" solution for intricate robotic tasks. As part of the Arducam RoAD family, this kit is built for the entire product lifecycle—from initial POC to mass production. We understand the needs of industrial clients, offering guaranteed long-term supply and dedicated technical support. Arducam provides the stability and flexibility required to integrate high-performance binocular vision into your professional ecosystem.
Applications
- Small-Scale Robotics: Precise navigation and obstacle avoidance for tabletop or indoor micro-AMRs.
- Close-up Manipulation: Depth-aware vision for robotic grippers and pick-and-place systems.
- Medical & Laboratory AI: Compact stereo imaging for automated sample handling or surgical assistance.
- Object Dimensioning: Accurate 3D measurement of small packages or components in logistics.
- Gesture Control: High-speed, close-range hand tracking for immersive human-machine interfaces.
Features
- 20mm Baseline for Macro Depth: Standard stereo cameras typically have a 55mm-65mm baseline, which is unsuitable for close-range work. The 20mm baseline of this RoAD.B kit allows the software to calculate depth much closer to the camera, making it the perfect choice for "macro" 3D vision and small robotic platforms.
- Color-Accurate Global Shutter: While many depth cameras are monochrome, this kit uses color sensors. This allows your AI models to perform object classification, color detection, and depth sensing simultaneously—all while the global shutter ensures zero "jello effect" or motion blur.
- Robust "Ready-to-Use" Enclosure: The sensors are housed in a sturdy industrial enclosure that maintains the 20mm baseline calibration even under vibration or light impact. This eliminates the need for users to design their own mounts or recalibrate the stereo pair frequently.
- Advanced Synchronization Options: Beyond the UVC-compliant USB-C connection, the customizable trigger port allows the camera to be hardware-synced with external strobes or other robotic sensors. This ensures your visual data is perfectly timed with the rest of your system's telemetry.
- The Arducam RoAD Advantage: Choosing this kit means choosing industrial-grade reliability. We provide extensive documentation, long-term product availability, and the ability to customize hardware (such as lenses or baseline variations) to meet the specific requirements of your deployment.
Specifications
| Camera | |
| Image Sensor | Dual 1MP Color Image Sensor |
| Optical Size | 1/4'' |
| Color Filter Type | Color |
| Shutter Type | Global Shutter |
| Sensor Active Area | 1280(H) x 800(V) |
| Max Resolution | 2560(H) x 800(V) = 2MP |
| Pixel Size | 3 µm x3 µm |
| Output Format | YUYV/MJPG |
| Frame Rate(YUYV) | 2560x800@10fps, 1280x400@30fps; 640x200@60fps; |
| Frame Rate(MJPG) | 2560x800@30fps, 1280x400@100fps; 640x200@100fps; |
| Lens | |
| Focus Type | Fixed Focus |
| FOV | 89.5°(D) x 80°(H) x 55°(V) |
| Lens Mount | Stock Lens |
| F.NO | F2.0±5% |
| E.F.L | 2.35mm |
| Default Focus Range | 50cm-INF |
| Distortion | -38.00% |
| Weight | 1g |
| IR Sensitivity | Integral 650nm IR Filter |
| USB Interface | |
| Interface | USB 2.0 Device |
| Connector | B4B-ZR JST |
| UVC Compliant | No additional drivers required |
| Functionality and Compatibility | |
| Supported Cable Length | 1m by default, 3m USB Cable Supported |
| Supported OS | Windows, Linux |
| Recommend Sample Application | Amcap for Windows, qv4l2 for Linux |
| UVC Controls | Brightness, Contrast, Gamma, Sharpness, Backlight Compensation, Gain, Exposure(Auto/Manual). |
| Electrical and Mechanical | |
| Operating Voltage | 5 V +/- 5% |
| Power Consumption | Max: 1.2W |
| Overall Weight (Net) | 62g |
| Binocular Baseline | 20mm |
| Overall Size | 48.6x32.5x20.7mm |
| Standard and Certifications | |
| Temperature range (Storage) | -4°F-167°F (-20°C to +85°C) |
| Temperature range (Operating) | 32°F-122°F (0°C to +50°C) |
| Certifications | RoHS |
Package Including
- 1 x Arducam RoAD.B 1MP Color 20mm Baseline USB2 Camera Module
- 1 x 1m USB Type-C to USB-A Cable
Notes
- This module supports customized resolution, frame rate, external trigger, and ROI, etc..
- To ensure stable imaging, please try to avoid using this product in complex lighting environments (such as complex outdoor scenes).
Documentation
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
