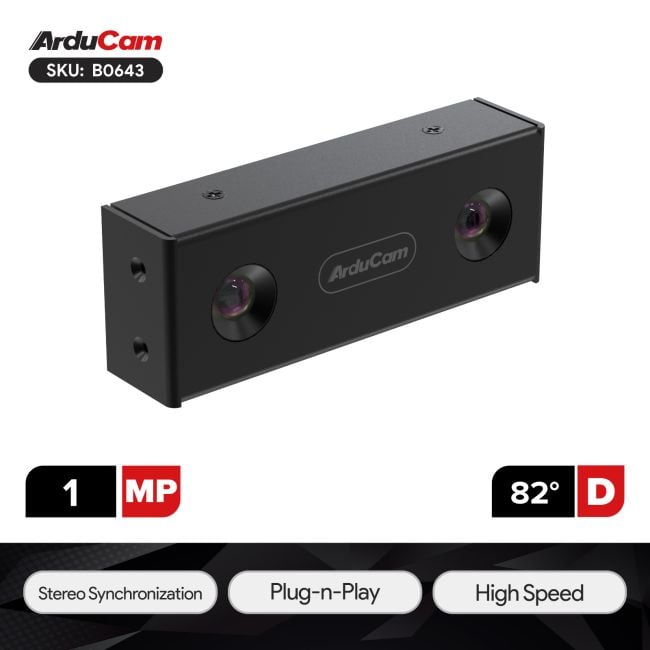

Arducam RoAD.B 1MP Mono Global Shutter Synchronized Stereo Camera - 55mm Baseline USB2 Kit with Enclosure
SKU
B0643
- 1MP Mono Global Shutter: High-speed monochrome sensors eliminate motion jelly effect.
- 55mm Fixed Baseline: Standardized stereo spacing optimized for mid-range depth sensing and spatial mapping.
- Hardware Synchronized: Precise frame-level alignment ensures accurate raw data for stereo vision.
- Industrial Enclosure: Rugged, pre-assembled housing designed for easy mounting and sensor protection.
- USB2 Type-C & Trigger Port: Plug-and-play connectivity with customizable external trigger for advanced system sync.
- Arducam RoAD Reliability: Guaranteed long-term supply and industrial-grade technical support.
$79.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
The Arducam RoAD.B 1MP Mono Global Shutter Kit is a purpose-built binocular vision system for robotics and machine vision. Featuring a 55mm baseline and perfectly synchronized monochrome sensors, it is designed to provide high-contrast, distortion-free data that enhances the performance of SLAM, obstacle avoidance, and gesture tracking.
The integrated industrial enclosure makes it a "ready-to-deploy" solution for both desktop development and field deployment. As part of the Arducam RoAD family, this kit is engineered for professionals who require consistency.
We offer long-term supply availability and deep technical support, ensuring that your vision hardware remains stable throughout your product's lifecycle. Whether you are building a prototype or scaling a fleet, Arducam provides the reliability and flexibility needed for successful industrial integration.
Applications
- Visual SLAM: Accurate environment mapping using high-contrast monochrome feature points.
- Obstacle Avoidance: Reliable depth perception for small to mid-sized autonomous robots.
- Gesture Recognition: High-speed tracking of hand movements for human-machine interfaces.
- Volume & Distance Measurement: Precise spatial calculations for logistics and warehouse automation.
- Laboratory Automation: Synchronized high-speed monitoring of mechanical processes.
Features
- Monochrome Precision for AI: The monochrome sensors in this kit capture more light and provide sharper edges than color sensors. This is critical for stereo matching algorithms (like Block Matching or SGBM) and feature-based tracking, resulting in faster and more accurate depth maps.
- Zero-Distortion Global Shutter: Designed for motion, the global shutter captures the entire frame at once. This prevents the "jello effect" or skewed images when the robot is moving quickly, ensuring that the geometric relationship between the two cameras remains perfectly consistent.
- Standardized 55mm Baseline: The 55mm baseline provides a balanced depth range, making it ideal for indoor robotics and close-to-medium range spatial awareness. The fixed mechanical alignment within the enclosure saves hours of calibration time.
- External Trigger & Synchronization: Beyond USB connectivity, the customizable trigger port allows the camera to be synced with external hardware, such as IR illumination or other sensors. This ensures the vision system is perfectly timed with the rest of your robotic stack.
- Industrial-Ready Deployment: The RoAD.B solution is more than a module—it is a complete kit. With its rugged enclosure and USB-C interface, it can be mounted directly onto robotic chassis or laboratory equipment, providing a professional look and durable performance in industrial environments.
Specifications
| Camera | |
| Image Sensor | Dual 1MP Mono Image Sensor |
| Optical Size | 1/4'' |
| Color Filter Type | Monochrome |
| Shutter Type | Global Shutter |
| Sensor Active Area | 1280(H) x 800(V) |
| Max Resolution | 2560(H) x 800(V) = 2MP |
| Pixel Size | 3 µm x3 µm |
| Output Format | YUYV/MJPG |
| Frame Rate(YUYV) | 2560x800@10fps, 1280x400@30fps; 640x200@60fps; |
| Frame Rate(MJPG) | 2560x800@30fps, 1280x400@100fps; 640x200@100fps; |
| Lens | |
| Focus Type | Fixed Focus |
| FOV | 82°(D) x 70° (H) x 55°(V) |
| Lens Mount | M12*P0.5 |
| F.NO | F2.8 |
| E.F.L | 2.8mm |
| Default Focus Range | 50cm-INF |
| Distortion | -1.50% |
| Weight | 4g |
| IR Sensitivity | NoIR, Sensitive to IR Light |
| USB Interface | |
| Interface | USB 2.0 Device |
| Connector | B4B-ZR JST |
| UVC Compliant | No additional drivers required |
| Functionality and Compatibility | |
| Supported Cable Length | 1m by default, 3m USB Cable Supported |
| Supported OS | Windows, Linux |
| Recommend Sample Application | Amcap for Windows, qv4l2 for Linux |
| UVC Controls | Brightness, Contrast, Gamma, Sharpness, Backlight Compensation, Gain, Exposure(Auto/Manual). |
| Electrical and Mechanical | |
| Operating Voltage | 5 V +/- 5% |
| Power Consumption | Max: 1.2W |
| Overall Weight (Net) | 68.7g |
| Binocular Baseline | 55mm |
| Overall Size | 86.5x31.4x20.2mm |
| Standard and Certifications | |
| Temperature range (Storage) | -4°F-167°F (-20°C to +85°C) |
| Temperature range (Operating) | 32°F-122°F (0°C to +50°C) |
| Certifications | RoHS |
Package Including
- 1 x Arducam RoAD.B 1MP Mono 55mm Baseline USB2 Camera Module
- 1 x 1m USB Type-C to USB-A Cable
Notes
- This module supports customized resolution, frame rate, external trigger, and ROI, etc..
- To ensure stable imaging, please try to avoid using this product in complex lighting environments (such as complex outdoor scenes).
Documentation
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
