[Discontinued] Arducam OG02B10 2MP Global Shutter USB Camera Evaluation Kit - 1/2.9-inch Color M12 Camera Module with USB3.0 Camera Shield Plus
SKU
B0351
Discontinued, check alternative item EK031.
$249.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
To help customers evaluate the cameras or build a prototype with your own circuits without dealing with fine pin pitch flex cable or soldering balls, Arducam released the evaluation kit with camera breakout boards and Arducam USB2/USB3 camera shield without writing a single line of code.
The Arducam OG02B10 color global shutter supports embedded systems such as PC and Raspberry Pi well, and can also provide customized support TK/TX boards for Odroid, Beaglebone Black, and Nvidia JETSON.
Applications
- Augmented and virtual reality
- Drones
- 3D imaging
- Machine vision
- Industrial bar code scanning
- Industrial automation
Features
- Sensor: Color global shutter OG02B10
- Pixel Size: 3 μm x 3 μm
- Active array size: 1600H×1300V
- Optical Size: 1/2.9 inch
- Output formats: 8/10-bit BW RAW
- Frame Rate: 1600×1300@60fps; 1600×1080@80fps; 1280×720@120fps
- Lens: M12 lens mount, focal length of 2.8mm±5%, F/2.8±5%, 110 degrees horizontal field of view (HFoV)
- IR Sensitivity: Integral IR filter, visible light only
- Board Size: 40mm x 40mm
Documentation
OG02B10 MIPI Camera with USB3.0 Camera Shield Plus
1.Introduction Arducam USB3 camera Shield board is the latest super high-speed USB camera expansion board, which provides improved performance and enhanced functions than the previous USB2.0 camera expansion board. It not only supports high resolution and high frame rate image sensors but also supports stereo camera and IRCUT control functions. Using a given camera profile, […]
Video

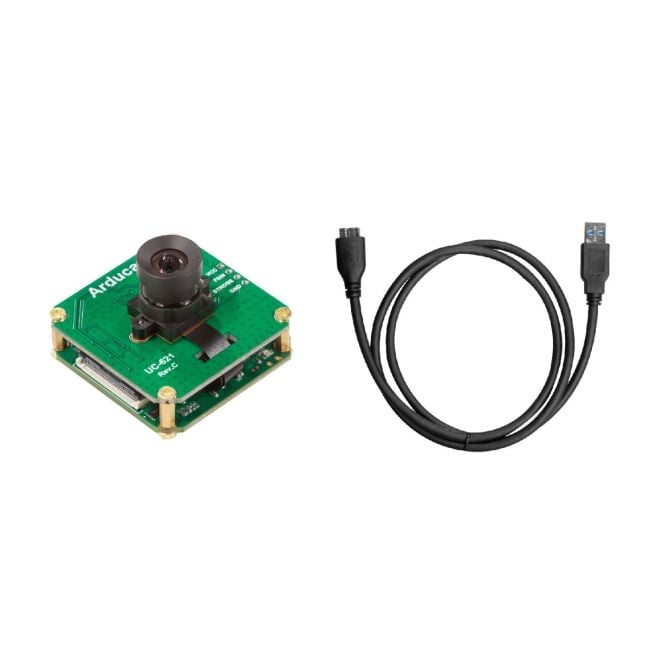

Package Including
- 1 pcs Arducam OG02B10 1/2.9-inch Color M12 Camera Module
- 1 pcs Arducam USB3.0 Camera Shield Plus
- 1 pcs USB3 Cable
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
