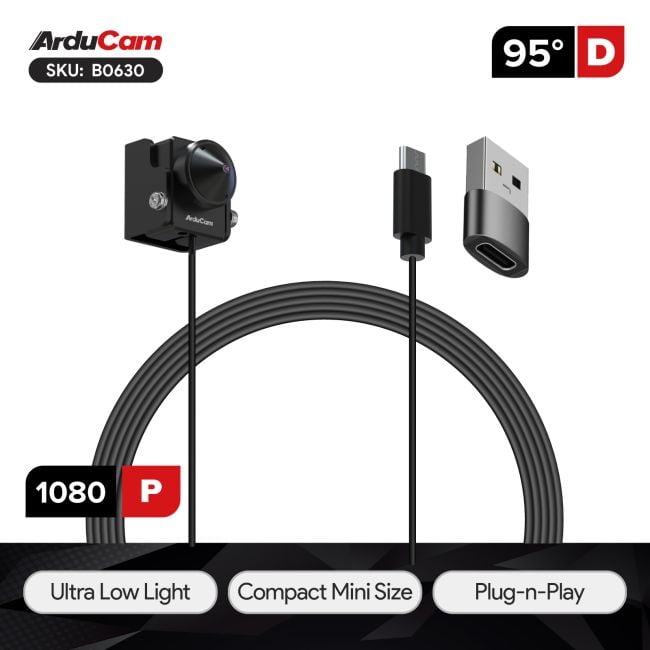

Arducam inVisCam 1080P Ultra Low Light Mini Size USB2 UVC Camera Module
SKU
B0630
- [Miniature Form Factor] Features an ultra-compact 19.5×15×17.3 mm mini size for seamless and hidden embedding.
- [STARVIS 2 Low Light] Leverages premium Sony STARVIS™ 2 technology for brilliant starlight-level clarity in near-dark environments.
- [Low Power Consumption] Engineered with an energy-efficient architecture, minimizing power draw and reducing heat generation.
- [1080P Full HD] Delivers crisp, detailed high-definition video at smooth frame rates for reliable monitoring.
- [UVC Plug-and-Play] Driverless USB2 interface guarantees effortless integration across Windows, Linux, and Android.
- [OEM/ODM] Customization options available.
$64.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
The Arducam inVisCam is a revolutionary 1080P ultra-low light mini USB2 UVC camera designed for tight, space-constrained installations. Measuring just 19.5×15×17.3 mm, this ultra-compact device features advanced STARVIS™ 2 starlight technology, capturing exceptionally clear and bright video where standard mini cameras see only darkness. Beyond its stealthy size and exceptional night-vision performance, it boasts remarkably low power consumption, making it ideal for continuous, long-term deployments. With driverless UVC setup, it offers a perfect balance of micro-sizing, high-sensitivity imaging, and effortless cross-platform integration.
Applications
- Hidden & Discreet Surveillance: Perfect for covert security monitoring and undercover operations where cameras must remain completely unnoticed.
- ATM and Kiosk Integration: Fits effortlessly into slim bezels of self-service kiosks, ticketing machines, and automated banking systems.
- Medical Equipment Inspection: Ideal for micro medical imaging systems, dental cameras, or diagnostic devices with strict space limitations.
- Portable & Wearable Devices: Excellent for compact body-worn tech, dashcams, or handheld battery-operated instruments requiring low power.
Features
- [Ultra-Compact Mini Design] With a miniature housing of only 19.5×15×17.3 mm, the inVisCam can be easily concealed or embedded into extremely narrow, space-critical applications without compromising performance.
- [Next-Gen STARVIS™ 2 Sensitivity] Powered by cutting-edge starlight sensor technology, it significantly enhances near-infrared sensitivity and light intake, providing vibrant, low-noise Full HD visuals under challenging lighting.
- [Eco-Friendly Low Power Draw] Optimized for high efficiency, its low-power architecture prevents overheating during prolonged operation, making it ideal for battery-powered systems or enclosed setups with limited ventilation.
- [Crisp Full HD 1080P Capture] Delivers exceptionally sharp, distortion-free 1080P high-definition video streams with high dynamic range, ensuring precise facial identification and fine detail recognition in real-time.
- [Instant UVC USB Plug-and-Play] Fully driverless and compliant with UVC specifications, it works immediately upon connection, ensuring seamless and hassle-free compatibility with modern operating systems and vision frameworks.
Specifications
| Camera | |
| Still Resolution | 2 Megapixels |
| Color Filter Type | Color |
| Shutter Type | Rolling |
| Optical Size | 1/2.8" |
| Output Format | MJPG/YUY2/H.264 |
| Pixel Size | 2.9μm x 2.9μm |
| Sensor Active Area | 1920(H) x 1080(V) |
| Frame Rate (MJPG/H.264) | 1920×1080@30fps, 1280×720@30fps; 800×600@30fps, 640×480@30fps, 320×240@30fps; |
| Frame Rate (YUV) | 640×480@30fps, 320×320@30fps; 320×240@30fps; 128×128@30fps; 96x96@30fps |
| Lens | |
| Focus Type | Fixed Focus |
| FOV | 95°(D) ×82° (H)×66°(V) |
| Lens Mount | M12-S |
| F.NO | F2.5 |
| E.F.L | 3.7mm |
| IR Sensitivity | Integral 650nm IR Filter |
| Default Focus Distance | 100cm~INF |
| Distrotion | <-13% |
| USB Features | |
| Interface | USB 2.0 Device |
| Connector | USB Type-C |
| UVC Compliant | No additional drivers required |
| Functionality and Compatibility | |
| Supported OS | Windows, Linux, Android and MacOS |
| Recommend Sample Application | Amcap for Windows, qv4l2 for Linux |
| UVC Controls | Brightness, Contrast, Gamma, Gain, Sharpness, Backlight Compensation, Lowlight Compensation, Exposure (Manual/Auto) |
| Electrical and Mechanical | |
| Operating Voltage | 5 V +/- 5% |
| Power Consumption | 1.2W |
| Camera Board Size | 19.5×15×17.3 mm |
| Overall Weight (Net) | 12g |
| Standard and Certifications | |
| Temperature range (Storage) | -4°F-167°F (-20°C to +85°C) |
| Temperature range (Operating) | 32°F-122°F (0°C to +50°C) |
| Certification | RoHS |
Package Including
- 1 x Arducam inVisCam 1080P Camera Module with USB Type-C Cable (1m)
- 1 x USB Type-C to USB A adapter
Documentation
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
