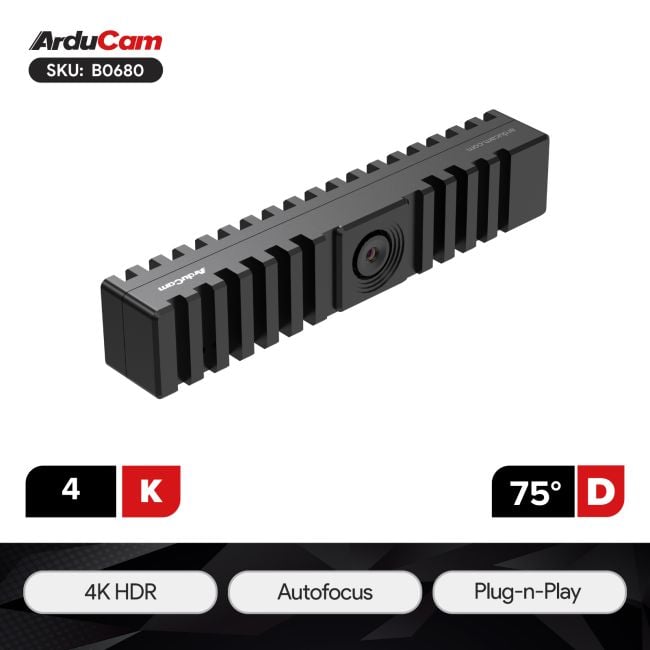

Arducam ezBOX-Slim 4K HDR Autofocus USB2 UVC Camera with CNC Enclosure
SKU
B0680
- [4K HDR Autofocus] Captures sharp 3840x2160 video with dynamic contrast and fast motorized focus.
- [Cool CNC Case] Durable CNC metal housing offers excellent thermal dissipation for steady long-term operation.
- [Flexible Integration] Elongated slim form factor allows quick, seamless embedding into tight, narrow spaces.
- [UVC Plug-and-Play] Driverless USB 2.0 interface ensures effortless cross-platform integration on Windows and Linux.
- [Customization Options] Offers flexible OEM modifications for custom cable lengths, lenses, and IMU integration.
$69.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
The Arducam ezBOX-Slim 4K HDR Camera Module is a versatile, ready-to-use addition to the ezBOX line of enclosed USB cameras. Designed for effortless setup, the Slim series replaces traditional square housing with an elongated CNC aluminum enclosure, maximizing heat dissipation and enabling seamless embedding into narrow slots. Combining 4K Ultra HD resolution and HDR with fast autofocus, it captures crisp visuals across challenging lighting conditions. Complete with driverless UVC plug-and-play convenience and flexible customization options like IMU integration, it provides a reliable, easy-to-integrate imaging solution for interactive and commercial systems.
Applications
- Video Conferencing Systems: Fits discreetly onto slim monitor bezels and conference bars for high-definition meetings.
- Fitness Equipment & Smart Mirrors: Integrates seamlessly into narrow frames of workout machines to enable AI pose tracking.
- Liveness Detection & Kiosks: Delivers secure face verification and anti-spoofing imaging in slim self-service terminals.
- Compact Embedded Vision: Ideal for smart retail displays, medical equipment, and space-critical indoor devices.
Features
- [4K HDR & Fast Autofocus] Combines 3840x2160 ultra-high resolution with High Dynamic Range and fast motorized focus, capturing vivid, balanced, and razor-sharp visuals under dynamic lighting conditions.
- [Thermally Efficient CNC Housing] The high-grade aluminum CNC metal enclosure functions as an effective heat sink, ensuring optimal thermal performance and continuous operational stability under heavy workloads.
- [Versatile & Flexible Integration] Engineered with an elongated slim profile and standardized mounting points, allowing engineers to effortlessly embed the camera into narrow bezels, tight slots, and compact devices.
- [Seamless UVC Plug-and-Play] Built on standard UVC specifications over USB 2.0, requiring no extra drivers for instant compatibility with Windows, Linux, Android, and macOS platforms.
- [Tailored OEM Customization] Supports broad custom tweaks for volume integrators, including specialized optical lenses, flexible cable lengths, custom enclosure colors, and hardware expansions like onboard IMU integration.
Specifications
| Camera | |
| Collection | Arducam ezBOX-Slim |
| Max Still Resolution | 4K (8.3MP) |
| Color Filter Type | Color |
| Shutter Type | Rolling Shutter |
| Optical Size | 1/2.8'' |
| Output Format | MJPG |
| Pixel Size | 1.68 µm x 1.68 µm |
| Sensor Active Area | 3840(H) x 2160(V) |
| Frame Rate(MJPG) | 3840x2160@20fps, 3264x2448@25fps, 2592x1944@30fps, 1920x1080@30fps, 1280x720@30fps, 640x480@30fps |
| Lens | |
| Focus Type | Autofocus |
| FOV | 75°(D)×61°(H)×50°(V) |
| Lens Mount | M12*P0.5 |
| F.NO | F1.8 |
| E.F.L | 3.95mm |
| Default Focus Range | 10cm-INF |
| IR Sensitivity | Integral 650nm IR Filter |
| USB Interface | |
| Interface | USB 2.0 Device |
| Connector | B4B-ZR JST |
| UVC Compliant | No additional drivers required |
| Functionality and Compatibility | |
| Audio | Single Microphone |
| Supported Cable Length | 1m by default, 3m USB Cable Supported |
| Supported OS | Windows, Linux, Android |
| Recommend Sample Application | Amcap for Windows, qv4l2 for Linux |
| UVC Controls | HDR*, Brightness, Contrast, Saturation, White Balance (Auto/Manual), Gain, Focus (Auto/Manual), Exposure (Manual/Auto) |
| Electrical and Mechanical | |
| Operating Voltage | 5V |
| Power Consumption | 1W |
| Overall Size | 62mm x 9mm x 6.5mm |
| Overall Weight (Net) | 27g |
| Standard and Certifications | |
| Temperature range (Storage) | -4°F-167°F (-20°C to +75°C) |
| Temperature range (Operating) | 32°F-122°F (0°C to +50°C) |
| Certifications | RoHS, CE |
Package Including
- 1 x Arducam ezBOX-Slim 4K HDR Autofocus USB2 UVC Camera Module
- 1 x 1m USB2 to B5B-ZR JST Cable
Notes
- This module supports customized resolution, frame rate, and ROI, etc.
- This module supports a minimum exposure time of 100µs under the current UVC protocol. For even lower exposure times, please contact Arducam for customization.
Documentation
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
