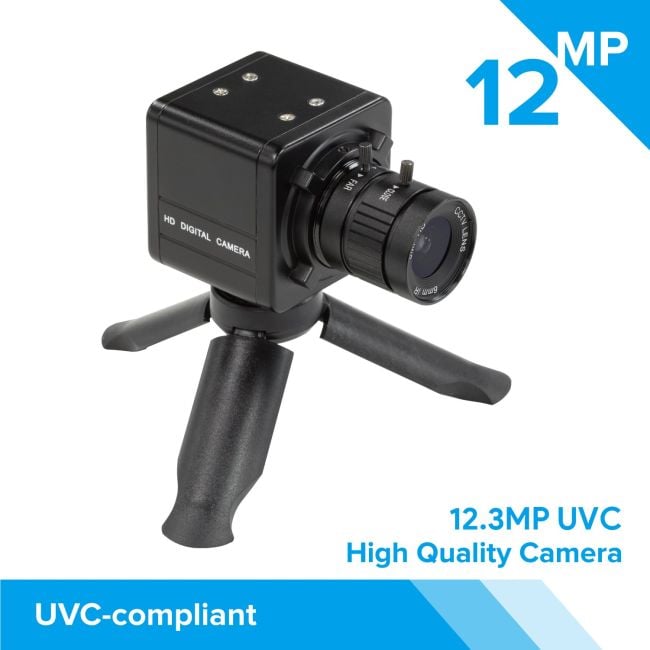

Arducam High Quality Complete USB Camera Bundle, 12MP 1/2.3 Inch 477P Camera Module with 6mm CS-Mount Lens, Metal Enclosure, Tripod and USB Cable
SKU
B0280
- High Resolution: Based on 12MP sensor for sharp image and accurate color reproduction
- Wider Angle of View: In different focus distance with a field of view 65°
- Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed
- Wide Applications: Video surveillance system, live streaming, record lesson and conference, etc.
$149.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
Arducam has been a professional designer and manufacturer of SPI, MIPI, DVP, and USB cameras since 2012. We also offer customized turnkey design and manufacturing solution services for customers who want their products to be unique.
Arducam B0280 is a new member of Arducam's USB camera family. It's a 12MP, based on the 1/2.3" Sony image sensor, UVC compliant, 6mm USB 2.0 camera with the metal shell.
No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.
Applications
- Video conference
- Home video surveillance system
- Live streaming
- Record lesson and conference
- ......
Specifications
| Resolution | 4032(H) x 3040(V) 12.3MP |
| Data Format | MJPG |
| Frame Rates | 4032x3040@10fps; 3840x2160@20fps; 2592x1944@30fps; 2560x1440@30fps; 1920x1080@60fps; 1600x1200@50fps; 1280x960@100fps; 1280x720@100fps; 640x480@80fps |
| Field of View (FOV) | 65°(H) |
| Lens Mount | CS Mount |
| Focal Length | 6mm |
| Back Focal Length | 7.53mm |
| MOD | 0.2m |
| Focus Type | Manual |
| Auto Controlled Features | Saturation, Contrast, Acutance, White balance, Exposure |
| System Compatibility | Windows, Linux, Mac, and Android with UVC |
| Power Supply | USB powered 5V |
| Working Current | MAX 200mA |
| Operating Temp | -4°F~158°F (-20°C~+70°C) |
| Dimension | 50mmx50mmx85mm |
| Cable Length | Default 6.56ft (2M) |
Documentation
Quick Start GuidePackage Including
- 1 × 12MP 6mm lens USB 2.0 camera with full metal shell
- 1 × 6.56ft (2M) USB 2.0 cable
- 1 x mini tripod stand
Lens Options
CS-Mount Lens
| SKU | LN051 | LN050 | LN038 | LN039 | LN040 | LN041 | LN029 |
|
Part No |
CS17320M12 |
CS2316ZM02 |
CS2308ZM05 |
CS2008ZM05A |
CS1812ZM03 |
CS2325ZM01 |
CS1806ZM06 |
| Optical Format | 1/1.7″ | 1/2.3' | 1/2.3'' | 1/2.3'' | 1/2.3'' | 1/2.3'' | 1/2.3'' |
| EFL(mm) | 3.2 | 16.00 | 8.00 | 8.00 | 12.00 | 25.00 | 6.00 |
| BFL(mm) | 5.94 | 7.53 | 6.50 | 7.53 | 7.53 | 8.03 | 8.03 |
| F/NO | 2.0 | 1.2 | 1.4 | 1.2 | 1.6 | 1.2 | 1.4 |
| HFOV on 1/2.3‘’ Cam | 120° | 24° | 50° | 50° | 30° | 14° | 65° |
| MOD | 0.30m | 0.20m | 0.30m | 0.20m | 0.20m | 0.20m | 0.30m |
|
Size(mm) |
28×30 | 30×29 | 28×23 | 30×29.5 | 30×29 | 28×29 | 28×28.5 |
NOTE 1: The CS-Mount Lens kit for the HQ Camera module, please check LK004, 5 lenses are included.
NOTE 2: For the sample order, please order the lens you need to replace separately and Contact us in advance for customization if you would like to replace the lenses on the Camera board.
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
