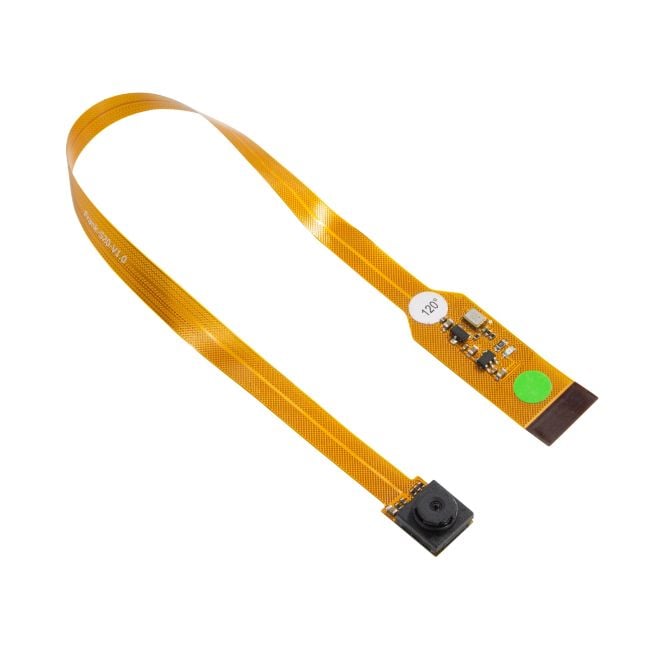

[Discontinued] Arducam 5MP OV5647 Wide Angle 120°(D) Miniature Camera with Flex Cable for Pi Zero and Pi Compute Module (NoIR)
SKU
B006604N
- Supports raspberry pi zero only. For Raspberry Pi Model A/B/B+, Raspberry Pi 2/3/3B+, please search “B0066”
- Sensor: 1/4 inch OV5647 sensor in a fixed-focus lens, angle of view: 120° diagonal
- without IR filter
- Still picture resolution: 2592 x 1944, Max video resolution: 1080p
- Dimension: 200mm × 11.5mm × 5.5mm
$19.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
In order to meet the increasing need of Raspberry Pi Zero compatible camera modules, the Arducam team now released another add-on spy camera module which is fully compatible with Raspberry Pi Zero and Pi compute module.
The board itself is tiny, at around 60mm x 11.5mm. The neck width of the camera module is 6mm, this highlight making it perfect for endoscope, spy surveillance or other applications where size and image quality are important. It connects to Raspberry Pi Zero by way of a short ribbon cable. The camera is connected to the BCM2835 processor on the Pi Zero via the CSI bus, which travels along the ribbon cable that attaches the camera board to the Pi.
It attaches to Raspberry Pi Zero by way of the small sockets on the board upper surface. This interface uses the dedicated CSI interface, which was designed especially for interfacing to cameras. The CSI bus is capable of extremely high data rates, and it exclusively carries pixel data.
Applications
- Cellular phones,PDAs,Toys
- Spy camera
- Other battery-powered products
- PC multimedia
- Digital still cameras,etc.
Specifications
| Sensor | Omnivision OV5647 sensor |
| Sensor size | 1/4” (OV5647) |
| Resolution | 5MP 2592×1944 |
| Video | 1080p 30 fps, 720p 60fps, 480p 90fps |
| Focus Distance | 1 m to infinity |
| Diagnoal Field of View (DFOV) | 120° |
| Focus Type | Fixed |
| Lens Type | Stock Lens |
| Dimension | 200mm × 11.5mm x 5.5mm |
Package Including
- 1x camera board with a 20cm flexible cable
Note
- Raspberry pi zero is not included in the package
Video
Documentation
5MP OV5647 Standard Camera Modules
Introduction 5MP OV5647 cameras, namely the V1 camera series, are used a lot on Raspberry Pi camera applications. Unlike the V2 cameras which are encrypted on the camera board with a chip, the 5MP OV5647 cameras can be easily modified and customized by third-party manufacturers, thus you will see a lot of variations of this […]
Compatibilites
RASPBERRY PI MODEL COMPATIBILITY
ONLY Support Pi Zero
OS COMPATIBILITY
- Raspbian,
- MotionEyeOS,
- OctoPi,
- Ubuntu,
- Arch Linux, etc.
EXTENSION CABLE COMPATIBILITY
- All 15pin Pi cam flex ribbon cables,
- [B0107+B0087] Pi Zero cable set,
- [B0177] Complete Pi camera cable set
MULTI-CAMERA ADAPTER COMPATIBILITY
- [B0166] Dual-camera multiplexer,
- [B0120] Quad-camera multiplexer,
- [B0195] Synchronized Stereo Camera HAT
How to purchase
You can purchase this item from Arducam distributors or Arducam’s Amazon store
Selection Guide
| SKU | Product | Resolution | Color | Shutter | Camera board | Mount | IR sensitivity | Focus |
|---|---|---|---|---|---|---|---|---|
| B0161 | 0.3MP Monochrome Global Shutter | 0.3MP | B/W | Global shutter | 40mm | Stock | Visible light | Fixed Focus |
| B0162 | 1MP Monochrome Global Shutter | 1MP | B/W | Global shutter | 40mm | Stock | Visible light | Fixed Focus |
| B0165 | 1MP Monochrome Global Shutter M12 Mount | 1MP | B/W | Global shutter | 40mm | M12 | Visible light | Adjustable |
| B0031 | 5MP M12 | 5MP | RGB | rolling shutter | 36mm | M12 | Visible light | Adjustable |
| B0032 | 5MP CS Mount | 5MP | RGB | rolling shutter | 36mm | CS | Visible light | Adjustable |
| B0033 | 5MP | 5MP | RGB | rolling shutter | 24mm | Stock | Visible light | Fixed Focus |
| B0033+B0087 | 5MP with Pi Zero Cable | 5MP | RGB | rolling shutter | 24mm | Stock | Visible light | Fixed Focus |
| B003301 | 5MP NoIR | 5MP | RGB | rolling shutter | 24mm | Stock | IR sensitive | Fixed Focus |
| B0033C | 5MP with case | 5MP | RGB | rolling shutter | 24mm | Stock | Visible light | Fixed Focus |
| B0033R | 5MP with long Ribbon Cable | 5MP | RGB | rolling shutter | 24mm | Stock | Visible light | Fixed Focus |
| B0035 | 5MP M12 NOIR | 5MP | RGB | rolling shutter | 36mm | M12 | IR sensitive | Adjustable |
| B003503 | 5MP Switchable IR-cut with LED | 5MP | RGB | rolling shutter | 36mm | M12 | Switchable IR filter | Adjustable |
| B0036 | 5MP CS Mount CS NOIR | 5MP | RGB | rolling shutter | 36mm | CS | IR sensitive | Adjustable |
| B0055 | 5MP M12 Fisheye | 5MP | RGB | rolling shutter | 36mm | M12 | Visible light | Adjustable |
| B0066 | 5MP Cam | 5MP | RGB | rolling shutter | spy cam | Stock | Visible light | Fixed Focus |
| B006602 | 5MP NOIR | 5MP | RGB | rolling shutter | spy cam | Stock | IR sensitive | Fixed Focus |
| B006603 | 5MP Pi zero spy cam 60 | 5MP | RGB | rolling shutter | spy cam Zero | Stock | Visible light | Fixed Focus |
| B006604 | 5MP Pi zero spy cam 120 | 5MP | RGB | rolling shutter | spy cam Zero | Stock | Visible light | Fixed Focus |
| B006605 | 5MP Pi zero spy cam 160 | 5MP | RGB | rolling shutter | spy cam Zero | Stock | Visible light | Fixed Focus |
| B0121 | 5MP AutoFocus | 5MP | RGB | rolling shutter | 40mm | Stock | Visible light | Programmable |
| B0151 | 5MP Switchable IR-cut | 5MP | RGB | rolling shutter | 36mm | M12 | Switchable IR filter | Adjustable |
| B01675MP | 5MP PTZ | 5MP | RGB | rolling shutter | 36mm | F14 | Switchable IR filter | Varifocal |
| B0176 | 5MP AutoFocus mini | 5MP | RGB | rolling shutter | 24mm | Stock | Visible light | Programmable |
| B0102 | 8MP CS | 8MP | RGB | rolling shutter | 36mm | CS | Visible light | Adjustable |
| B0103 | 8MP M12 | 8MP | RGB | rolling shutter | 36mm | M12 | Visible light | Adjustable |
| B0122 | 8MP AutoFocus | 8MP | RGB | rolling shutter | 40mm | Stock | Visible light | Programmable |
| B0152 | 8MP M12 NOIR | 8MP | RGB | rolling shutter | 36mm | M12 | IR sensitive | Adjustable |
| B0153 | 8MP CS NoIR | 8MP | RGB | rolling shutter | 36mm | CS | IR sensitive | Adjustable |
| B0154 | 8MP M12 Switchable IR-cut | 8MP | RGB | rolling shutter | 36mm | M12 | Switchable IR filter | Adjustable |
| B01678MP | 8MP PTZ | 8MP | RGB | rolling shutter | 36mm | F14 | Switchable IR filter | Varifocal |
| B0180 | 8MP IMX219 replacement M12 170 Wide Angle | 8MP | RGB | rolling shutter | Sensor Module | M12 | Visible light | Adjustable |
| B0182 | 8MP IMX219 replacement Autofocus | 8MP | RGB | rolling shutter | Sensor Module | Stock | Visible light | Programmable |
| B0184 | 8MP IMX219 replacement M12 Low Distortion | 8MP | RGB | rolling shutter | Sensor Module | M12 | Visible light | Adjustable |
| B0188 | 8MP IMX219 replacement M12 Low Distortion NoIR | 8MP | RGB | rolling shutter | Sensor Module | M12 | IR sensitive | Adjustable |
| B0190 | 8MP IMX219 replacement Autofocus NoIR | 8MP | RGB | rolling shutter | Sensor Module | Stock | IR sensitive | Programmable |
| B1094 | 8MP IMX219 replacement M12 170 Wide Angle NoIR | 8MP | RGB | rolling shutter | Sensor Module | M12 | IR sensitive | Adjustable |
| B0163 | 13MP MIPI Camera | 13MP | RGB | rolling shutter | 40mm | Stock | Visible light | Fixed Focus |
| B0174 | 16MP MIPI Camera | 16MP | RGB | rolling shutter | 40mm | Stock | Visible light | Fixed Focus |
| B0164 | 18MP MIPI Camera | 18MP | RGB | rolling shutter | 40mm | M12 | Visible light | Adjustable |
