Arducam 640x512 12μm 60Hz High-Speed USB Thermal Imaging Module with 9.1mm Lens & Precision Temperature Measurement
SKU
B0666
- 640×512 High Resolution: Superior thermal clarity with a 640×512 uncooled VOx detector, capturing fine temperature details.
- 60Hz High Frame Rate: Delivers ultra-smooth, lossless real-time video without lagging, ideal for high-speed monitoring and UAV motion.
- Advanced 8~14μm Technology: Equipped with self-developed 8~14μm pixel pitch sensors, offering a wider field of view and higher sensitivity in a compact size.
- Plug-and-Play USB Interface: Outputs standard digital signals via USB, ensuring easy integration with PCs, Android devices, and embedded systems.
- Industrial-Grade Precision: Dual temperature measurement modes designed for high-accuracy industrial inspection and fire prevention.
Overview
Specifications
Wiki
Documents
Video
Customization
Overview

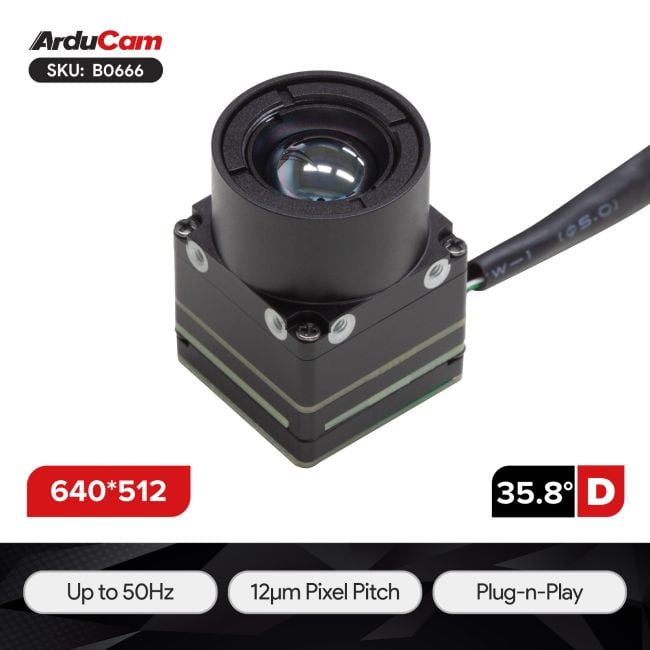

This thermal imaging module is a professional-grade, ultra-compact infrared thermal imaging module designed for high-end integration. Featuring a 640×512 high-resolution core and a sophisticated 9mm lens, it breaks the barrier between industrial performance and miniature design. By utilizing the latest 8~14μm sensor technology, the module provides significantly sharper thermal images and longer detection ranges compared to standard 17μm modules.
Weighing only 24g and measuring only 21x21x30mm, it is engineered for "space-critical" applications. Whether you are developing a handheld thermal scanner, integrating night vision for automotive safety, or deploying aerial thermography on UAVs, the module offers the perfect balance of cost-efficiency and high-definition performance. Its 60Hz output ensures that no critical thermal anomaly is missed due to motion blur, making it a reliable "third eye" for both day and night.
Applications
- Industrial Inspection: Detecting hotspots in power grids, circuit boards, and mechanical equipment.
- Security & Surveillance: Night-time human/animal detection and perimeter security.
- UAV & Robotics: Aerial thermal mapping, search and rescue, and autonomous navigation.
- Fire Prevention: Early warning systems for warehouses, forests, and charging stations.
- Automotive AI: Enhanced night vision for ADAS (Advanced Driver Assistance Systems)
Features
- Self-Developed Core, Superior Cost-Efficiency: Powered by an autonomous 8-14μm infrared core, offering premium resolution at a competitive price point for mass deployment.
- Exceptional Fluidity & Image Quality: Supports up to 60Hz lossless digital output, providing high-definition thermal imaging that is essential for moving targets.
- Dual Precision Temperature Modes: Features two calibrated modes to ensure consistent and stable temperature readings across diverse environmental conditions.
- Ultra-Lightweight & Tiny Form-Factor: The module weighs 24g with a 21x21x30mm footprint, allowing for seamless integration into helmets, drones, and handheld devices.
- Flexible Lens Solutions: Support for lensless configurations or manual/auto-focus non-thermalized lenses to suit specific focal length and FOV requirements.
Specifications
| Thermal Imaging Module | |
| Detector type | Uncooled Focal Plane Array Detector (VOx - Vanadium Oxide) |
| Frame rate | 60Hz |
| Spectral Response | 8~14μm |
| NETD | 40mK@25℃, F#1.0, 25Hz |
| Resolution | 640*512 |
| Optical parameters | |
| F.NO | F1.0 |
| Lens Focal Length | 9mm |
| Detection Distance | 900m |
| FOV（DxHxV） | 46.2° x 37.7° |
| Recognition Distance | 225m |
| Identification Distance | 113m |
| Interface | |
| Analog Video Interface | USB, UVC |
| Control Interface | USB |
| Interface Specification | SMD,P=0.8mm-4P |
| Application functions | |
| Imaging Enhancement Mode | Adjustable |
| Pseudo color | White Hot (default), Black Hot, Red Hot, Iron Red, etc. |
| Brightness | Adjustable |
| Contrast | Adjustable |
| Digital Zoom | 1X to 8X Zoom |
| Shutter Mode | With Shutter, Auto Shutter Mode |
| Lib Calibration | Support USB user host computer |
| Non Uniformity Conrrection(NUC) | Support USB user host computer |
| Electrical and Mechanical | |
| Supply Voltage | USB(5V) |
| Power Consumption | ≤0.8w |
| Dimension | 21mm x 21mm x 30mm |
| Weight | 24g |
| Shock | 80 g@4ms |
| Secondary Development | Supports Windows, Linux, and Android, with an SDK available for secondary development |
| Standard and Certifications | |
| Operating temperature | -20℃ - +60℃ |
| Certification | RoHS,CE |
Package Including
- 1 x Arducam 60Hz Thermal Imaging USB Camera Module
- 1 x 1m JST-4 to USB Type-A Cable
Notes
- Avoid Direct Sunlight: Never point the thermal camera lens directly at high-intensity radiation sources (such as the sun or high-power lasers) to avoid permanent sensor damage.
- Software Compatibility: Ensure your host system supports USB UVC or the specific digital protocol for video stream acquisition.
- Package Contents: Please verify that the module and interface cables are intact upon arrival. Mounting hardware is not included unless specified.
- Calibration: The device is factory-calibrated; however, extreme ambient temperatures may affect the initial accuracy of the temperature reading during the warm-up period.
Documentation
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
