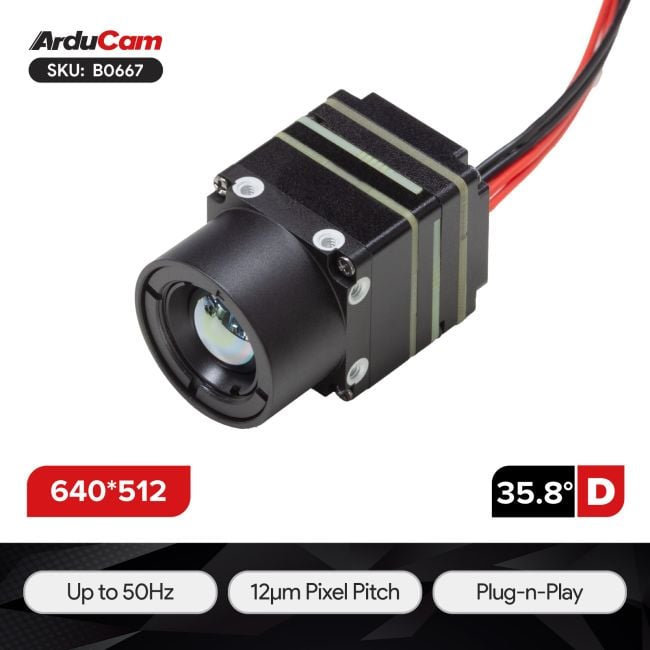

Arducam 640x512 12μm 60Hz Analog CVBS Thermal Imaging Module, Ultra-Low Latency Infrared Camera with 9.1mm Lens for FPV, Security & Industrial Monitoring
SKU
B0667
- 640×512 High Resolution: Delivers high-definition thermal video via standard CVBS (Analog) signal for seamless integration with monitors and analog transmitters.
- Real-Time 60Hz Fluidity: High frame rate ensures zero-lag, smooth imaging, which is critical for high-speed tracking, UAV piloting, and dynamic security.
- Next-Gen Image Sensor: Features a cutting-edge 8~14μm spectral response detector, providing superior detail and longer detection range in a miniaturized form factor.
- Ultra-Low Latency: Unlike digital/USB modules, the analog output provides near-instantaneous thermal feedback, ideal for FPV drones and mission-critical operations.
- Rugged & Expandable: A compact 21x21x34.48mm build with support for multiple lens options (9mm to 50mm) to suit various field-of-view requirements.
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
Arducam 640x512 60Hz Analog CVBS Thermal Imaging Module, Ultra-Low Latency Infrared Camera with 9mm Lens for FPV, Security & Industrial Monitoring.
Equipped with a self-developed 640x512 core, this module delivers professional-grade thermal sensitivity in a lightweight 24.5g package. Its 60Hz refresh rate eliminates the "stuttering" effect found in many thermal cameras, making it a top choice for automotive night vision, FPV drone racing, and industrial hot-spot monitoring. With its "White Hot" pseudo-color mode and precision temperature measurement capabilities, the module provides a clear, intuitive thermal map of any environment, day or night.
Applications
- FPV & UAV Piloting: Lightweight, zero-latency thermal feed for night-time drone navigation and search & rescue.
- Analog Security Systems: Easy upgrade for existing CCTV infrastructures to add thermal sensing capabilities.
- Automotive Night Vision: Real-time obstacle and pedestrian detection for vehicle safety systems.
- Handheld Device Integration: Core component for portable thermal imagers and industrial thermometers.
- Fire Detection: Fixed-point monitoring for warehouses and forests with analog alert systems.
Features
- High-Definition Analog Core: The VOx detector offers a significant resolution boost (640x512) over standard analog thermal modules, ensuring crisp details.
- Optimized for Motion: The 60Hz lossless output is specifically designed for scenarios involving fast movement, providing a blur-free experience.
- Dual-Mode Temperature Measurement: Supports precise industrial-grade temperature analysis with stable readings across varying ambient conditions.
- Compact & Durable Design: Measuring only 21x21x34.48mm, the black-finished module is easy to hide for discreet security or fit into tight internal housings.
- Interchangeable Lens Ecosystem: While equipped with a 9mm lens by default, the module supports a range of lenses (13mm/25mm/35mm/50mm) to balance distance and field of view (FOV).
Specifications
| Thermal Imaging Module | |
| Detector type | Uncooled Focal Plane Array Detector (VOx - Vanadium Oxide) |
| Frame rate | 60Hz |
| Spectral Response | 8~14μm |
| NETD | 40mK@25℃, F#1.0, 25Hz |
| Resolution | 640*512 |
| Optical parameters | |
| F.NO | F1.0 |
| Lens Focal Length | 9mm |
| Detection Distance | 900m |
| FOV（DxHxV） | 46.2° x 37.7° |
| Recognition Distance | 225m |
| Identification Distance | 113m |
| Interface | |
| Analog Video Interface | CVBS(PAL Format) |
| Control Interface | UART (Baud Rate: 115200) |
| Interface Specification | SMD,P=0.8mm-4P |
| Application functions | |
| Imaging Enhancement Mode | Adjustable |
| Pseudo color | White Hot (default), Black Hot |
| Brightness | Adjustable |
| Contrast | Adjustable |
| Digital Zoom | 1X to 8X Zoom |
| Shutter Mode | With Shutter, Auto Shutter Mode |
| Lib Calibration | Support UART serial protocol |
| Non Uniformity Conrrection(NUC) | Support UART serial protocol |
| Electrical and Mechanical | |
| Supply Voltage | 5v~18v |
| Power Consumption | ≤0.8w |
| Dimension | 21mm x 21mm x 34.48mm |
| Weight | 24.5g |
| Shock | 80 g@4ms |
| Secondary Development | / |
| Standard and Certifications | |
| Operating temperature | -20℃ - +60℃ |
| Certification | RoHS,CE |
Package Including
- 1 x Arducam 60Hz Thermal Imaging CVBS Camera Module
- 1 x 5-pin Camera Connection Ribbon Cable
Notes
- Signal Format: This module outputs an Analog CVBS signal. Please ensure your display or capture card supports analog video input (PAL/NTSC compatible).
- Power Protection: Please check the voltage requirements before powering the module to prevent damage to the analog circuitry.
- Lens Care: Do not expose the lens to high-intensity energy sources (like the sun) to prevent burning the infrared detector.
- Customization: For specific focal lengths (e.g., 25mm or 50mm) or lensless versions, please contact our technical support for customization options.
