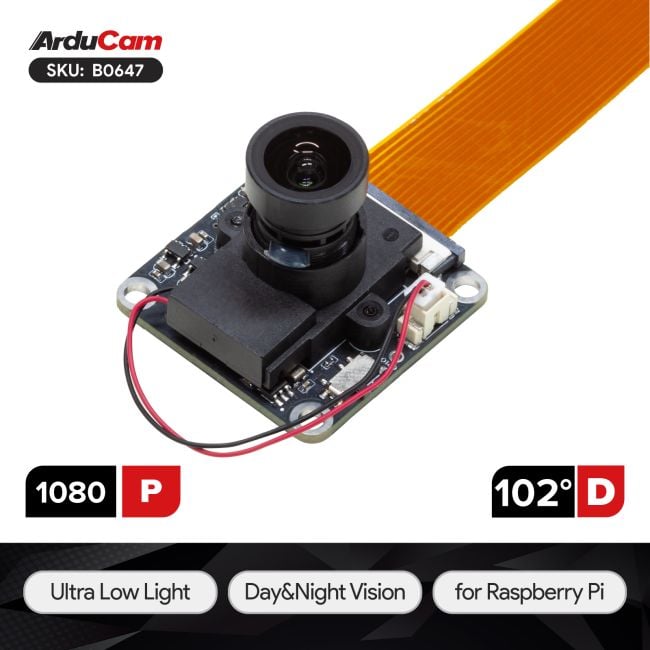

Arducam IMX290 1080P Day Night Vision Ultra Low Light MIPI Camera for Raspberry Pi
SKU
B0647
- [STARVIS Night Vision] Utilizes Sony STARVIS™ technology for exceptional starlight-level clarity and low-noise imaging in dark environments.
- [Day & Night Mode] Delivers vivid color images by day and sharp monochrome vision by night for 24/7 monitoring.
- [Raspberry Pi Native] Supports Raspberry Pi native camera stacks with zero firmware flashing required for immediate setup.
- [102° Wide Angle] Offers a 102-degree diagonal field of view, ideal for capturing expansive surveillance coverage.
- [1080P Full HD] Streams and records crystal-clear 1080P high-definition video with optimal details and smooth frame rates.
- [OEM/ODM] Customization options available.
$29.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
The Arducam 1080P Day & Night Vision MIPI Camera Module is an elite imaging solution purpose-built for Raspberry Pi enthusiasts and industrial integrators. Powered by premium Sony STARVIS™ starlight technology, it achieves unparalleled sensitivity, delivering sharp and clear video under extremely dim conditions. Designed as a native Raspberry Pi camera solution, it requires no complicated firmware flashing and can be called directly by the platform out of the box. Featuring a 102° wide-angle lens and automatic day/night switching, this compact module is the ultimate choice for round-the-clock monitoring and embedded vision projects.
Applications
- Smart Home Security: Provides reliable, 24/7 continuous surveillance for indoor and outdoor home monitoring systems.
- Wildlife Research & Tracking: Perfect for capturing nocturnal animal activities without disrupting their natural environment with bright lights.
- IoT Environmental Monitoring: Enables remote stations to capture high-quality visual data in changing outdoor lighting conditions.
- Robotics and Drones: Ideal for autonomous robots navigating through dimly lit warehouses or outdoor night environments.
Features
- [Sony STARVIS™ Technology] Leveraging Sony's premier starlight-level back-illuminated pixel technology, this camera module drastically increases light sensitivity, ensuring bright and highly detailed images even in near-total darkness.
- [True Day & Night Adaptation] Seamlessly transitions between vibrant color imaging during the day and crisp, high-contrast monochrome vision at night, providing a perfect 24/7 surveillance solution.
- [Native Raspberry Pi Integration] Fully compatible with Raspberry Pi’s official camera drivers and software stacks, allowing users to call the camera directly via command lines without flashing custom firmware.
- [Expansive 102° Field of View] Equipped with a high-quality 102-degree diagonal wide-angle lens that maximizes scene coverage, effectively reducing blind spots in critical security and monitoring setups.
- [High-Definition 1080P Streaming] Delivers smooth, uncompressed 1080P Full HD video through the high-speed MIPI CSI-2 interface, ensuring pixel-perfect accuracy for video streaming, recording, or AI vision analysis.
Specifications
| Camera | |
| Image Sensor | SONY STARVIS IMX290 |
| Resolution | 2 Megapixels |
| Chroma | Color |
| Shutter Type | Rolling Shutter |
| Optical Format | 1/2.8" |
| Pixel Size | 2.9 µm x2.9 µm |
| Sensor Active Area | 1920(H)×1080(V) |
| Sensor Image Area | 5.640 mm x 3.181 mm (6.46 mm diagonal) |
| Output Format | RAW10/RAW12 |
| Resolution@fps | 1920x1080@60fps, 1280x720@60fps; |
| Lens | |
| Focus Type | Fixed Focus |
| FOV | 102°(D)×86°(H)×46°(V) |
| Lens Mount | M12*P0.5 |
| F.NO | F1.6±10% |
| E.F.L | 3.98±5%mm |
| IR Sensitivity | Day&Night Vision, IR-Cut Switch (IR650/NoIR) |
| Default Focus Distance | 168cm-INF |
| Distortion | TV Distortion: -11.3% F-θ Distortion: -34.9% |
| TTL | 22.7±0.2 (in air) |
| M.O.D | 2m |
| Functionality and Compatibility | |
| IR-Cut Switch | Onboard Manual Switch |
| IR LED Light | No |
| Supported Platform | Raspberry Pi |
| Supported Raspberry Pi OS | Bullseye/Bookworm/Trixie |
| Camera Interface | MIPI CSI-2 |
| Electrical and Mechanical | |
| Operating Voltage | 3.3V |
| Power Consumption | 0.9W |
| Camera Board Size | 32×32 mm |
| Overall Weight (Net) | 16g |
| Standard and Certifications | |
| Temperature range (Storage) | -4°F-167°F (-20°C to +85°C) |
| Temperature range (Operating) | 32°F-122°F (0°C to +50°C) |
| Certification | RoHS |
Package Including
- 1 x Arducam 2MP Ultra Low Light IR-Cut Switch MIPI Camera Module
- 1 x 15cm 15-22pin FPC Cable
- 1 x 15cm 15-15pin FPC Cable
Documentation
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
