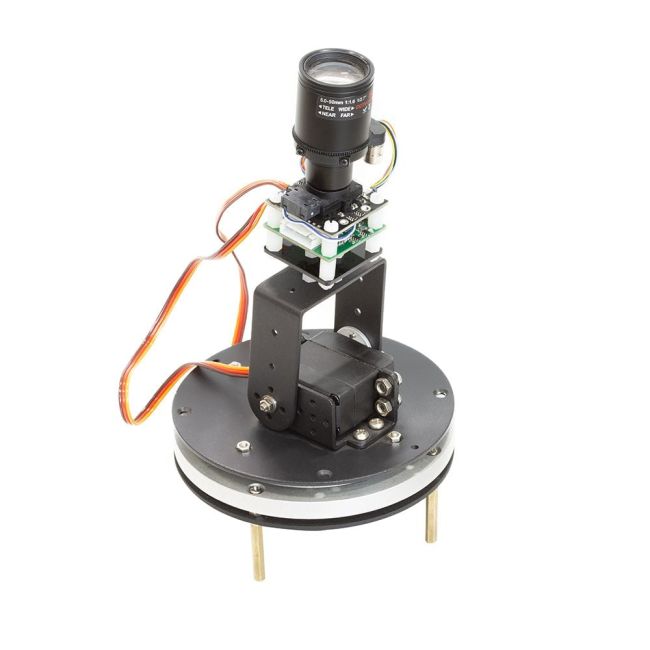

[Discontinued] Arducam 5MP 1080p Pan Tilt Zoom PTZ Camera with Base for Raspberry Pi 4/3B+/3
SKU
B0167B5
Check alternative camera B0167B12
- Real PTZ with servos for directional control and varifocal lens for optical zoom now comes to the Raspberry Pi
- IR Cut Switch: Switchable IR Cut through software for your day/night vision
- Make full use of the CSI connector now that a single camera can be used to monitor more place
- Software Control: Autofocus control, pan/tilt/zoom keyboard control supported in software
- Base on 5MP OV5647 1080P Camera board
- PTZ Controller Board Connector Part Number: S6B-XH-A-1
$149.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
This camera is a PTZ camera bundle kit based on the ov5647 sensor, we have made some changes on the basis of the sensor. PTZ is an abbreviation for pan, tilt, and zoom and reflects the movement options of the camera, and a pan–tilt–zoom camera (PTZ camera) is a camera that is capable of remote directional and zoom control. A PTZ camera is not a still camera. Instead, it could move the camera and the lens, and that means a single camera can be used to monitor places that should be covered by multiple ones. You can save a lot of cost and time in purchasing and deploying the camera if a PTZ camera can handle the job. With its moveable lens, you will also be able to zoom the camera to see a specific area that you are interested in. To conclude, it’s “do more with less.”
Applications
- IoT cameras
- Robot cameras
- Wildlife cameras
- Sun Tracker
- Other security and surveillance projects, etc.
Specifications
| Sensor | Omnivision OV5647 sensor |
| Sensor size | 1/4” (OV5647) |
| Resolution | 5MP 2592×1944 |
| Video | 1080p 30 fps, 720p 60fps, 480p 90fps |
| Focal-Length | 3.2-11.1mm±5% |
| F No. | W:1.6-T:3.3±5% |
| Focus Type | Front group: focus Back group: Zoom |
| M.O.D | 0.8m |
| Dimension | 36mm x 36mm |
| Pan and Tilt Range | 0-180° |
| Zoom Range (Wide => Tele) | 2317 steps 0.00396mm/step |
| Focus Range(Near => Far) | 3009 steps 0.0047mm/step |
Package Including
- 1 x Arducam PTZ Pan Tilt Zoom Lens, assembled with a 5MP IR-CUT switchable camera board and a camera control board
- 1 x 15-Pin FPC Cable (11.8 in/30 cm)
- 1 x XH2.54 Jumper wire with 6Pin Female Connector (11.8 in/30 cm)
- 1 x Base Alloy with servo
- 1 x Black Acrylic Board
- 12 x M3*10+6mm Nylon Standoffs
- 8 x M3*6mm Nylon Screws
- 8 x M3 Nuts
- 4 x Copper standoffs for the base
Note
- Raspberry Pi board is not included in the package
Documentation
Specification
1. 5MP OV5647 / 8MP IMX219 Camera No. Items Specification 1 F No. W:1.6-T:3.3±5% 2 Focal-Length 3.2-11.1mm±5% 3 Optical Back Focal Length 5.8±0.1 4 Mechanical Back Focal Length 13.45±0.2 5 TTL 52.14±0.2 6 Image Circle ∅6.9 7 Lens Structure 6G3P 8 Mount ∅14 9 FOV 1/2.7”(16:9): H(113~30),V(60~16),D(137~34) 1/3”(4:3): H(91~25),V(66~18),D(120~30) 1/4”(4:3): H(67~18),V(49~13),D(90~22) 10 M.O.D 0.8m 11 […]
