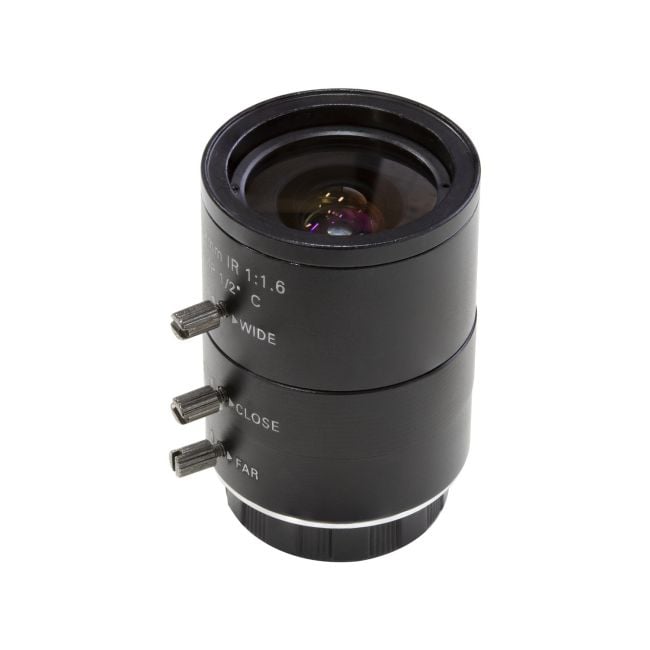

Arducam 4-12mm Varifocal C-Mount Lens for Raspberry Pi HQ Camera, with C-CS Adapter
SKU
LN048
- A Better Option: Adapt the CS-Mount of the Raspberry Pi High Quality Camera to the access compact varifocal lens, C-CS adapter is included.
- Multiple Adjustment: 4-12mm adjustable focal length with manual focus ring and aperture ring, help you get clear image in different focus distance.
- Field of View (FOV): 87.2°(H)-39°(H), 80°(H)-32°(H) on 1/2.3″ IMX477 High Quality Camera
- Other Specs – 1/2″ Lens Optical Format, F1: F16, Dimension: Φ33×43mm, Weight: 67.5g
$54.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
In order to meet the new demands of the lens to work with Raspberry Pi High Quality Camera, Arducam selected and tested a wide range of lenses on your Rpi HQ cameras. It's now much easier for you to get the best lens you'll need, and we will keep the lens list growing in the near future. It is a better option to adapt the CS-Mount of the Raspberry Pi High Quality Camera to the access compact varifocal lens with a C-CS adapter is included.
Lens Specification
- Model No: C2004ZM12
- Optical Format: 1/2"
- Focal Length: 4 ~ 12mm
- Aperture: F1:1.6
- Field of View (FOV): 87.2°(H)-39°(H), 80°(H)-32°(H) on 1/2.3" IMX477 High Quality Camera
- Focus Type: manual
- Mount: C mount
- Back Focal Length: 17.53mm
- MOD: 0.2m
- Dimension: Φ33×43mm
- Weight: 67.5g
Package including
- 1pcs 1/2" C-Mount 4~12mm varifocal lens for Raspberry Pi
How to purchase
You can purchase this item from Arducam distributors.
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
