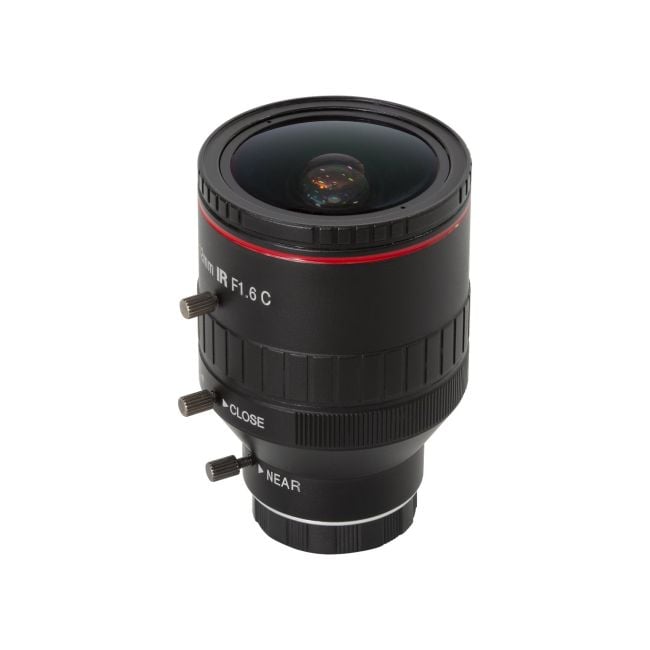

Arducam 2.8-12mm Varifocal C-Mount Lens for Raspberry Pi HQ Camera, with C-CS Adapter
SKU
LN049
- Field of View (FOV): 125°(H)-43°(H), 120°(H)-38°(H) on 1/2.3″ IMX477 High Quality Camera
- Compatible with both the Raspberry Pi High Quality Camera and Arducam IMX477/577 series
$69.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
An Arducam varifocal C-mount lens with an adjustable aperture range (up to F1.6), it's compatible with both the Raspberry Pi High Quality Camera and Arducam IMX477/577 series.
Lens Specification
- Model No: C20280M12
- Optical Format: 1/2"
- Focal Length: 2.8-12mm
- Aperture: F1:1.6
- Field of View (FOV): 125°(H)-43°(H), 120°(H)-38°(H) on 1/2.3" IMX477 High Quality Camera
- Focus Type: manual
- Mount: C mount
- Back Focal Length: 17.53mm
- MOD: 0.3m
- Dimension: Φ44.5×58.5mm
- Weight: 140g
Documentation
3D drawing.step |
Package including
- 1pcs 1/2" C-Mount 2.8-12mm varifocal lens for Raspberry Pi.
