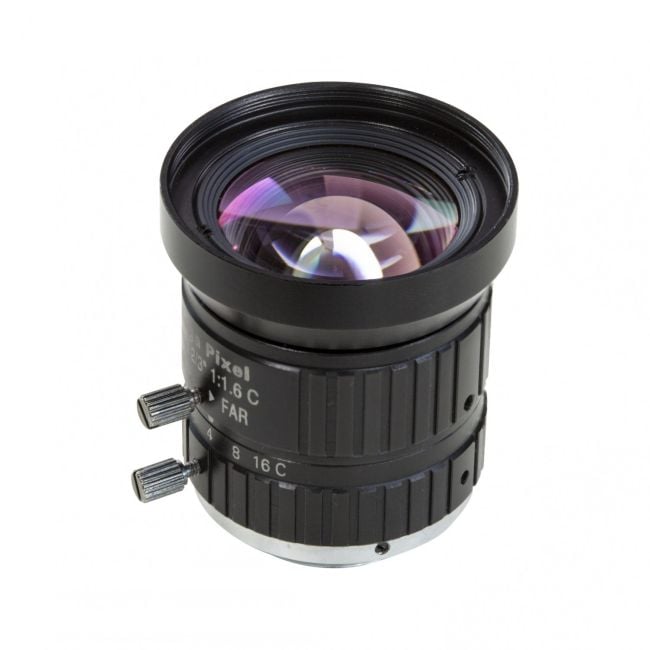

Arducam C-Mount Lens for Raspberry Pi High Quality Camera, 8mm Focal Length with Manual Focus and Adjustable Aperture
SKU
LN043
- It Just Works – We’ve tested this lens among the many other selected on the 12MP RPi HQ Camera. No lens shading, no dark corners, decent image quality, it just works.
- The Wise Alternative – Another cost-effective choice that adds up to you Raspberry Pi High Quality Camera Module, with 8mm focal length, manual focus and adjustable aperture.
- Field of View (FOV): 58.4°(H)×44.6°(V), 44°(H) on 1/2.3″ IMX477 High Quality Camera
- Other Specs – 2/3″ Lens Optical Format, F1.6-F16, Dimension: Φ39×41mm, Weight: 100.7g
- Search SKU UB0216 CB013 to get the tripod and camera cable for Raspberry Pi High Quality Camera
$49.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
In order to meet the new demands of the lens to work with Raspberry Pi High Quality Camera, Arducam selected and tested a wide range of lenses on your Rpi HQ cameras. It's now much easier for you to get the best lens you'll need, and we will keep the lens list growing in the near future. We’ve tested this lens among the many other selected on the 12MP RPi HQ Camera. No lens shading, no dark corners, decent image quality, it just works. It is another cost-effective choice that adds up to you Raspberry Pi High Quality Camera Module.
Specs
- Model No: C1508ZM04
- Optical Format: 2/3"
- Focal Length: 8mm
- Aperture: F1.6-F16, adjustable
- Field of View (FOV): 58.4°(H)×44.6°(V), 44°(H) on 1/2.3" IMX477 High Quality Camera
- Focus Type: manual
- Mount: C mount
- Back Focal Length: 17.53mm
- MOD: 0.15m
- Dimension: Φ39×41mm
- Weight: 100.7g
Package Including
1pcs 2/3" C-Mount 8mm Focal Length lens for Raspberry Pi
How to Purchase
You can purchase this item from Arducam distributors or Arducam’s Amazon store
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
