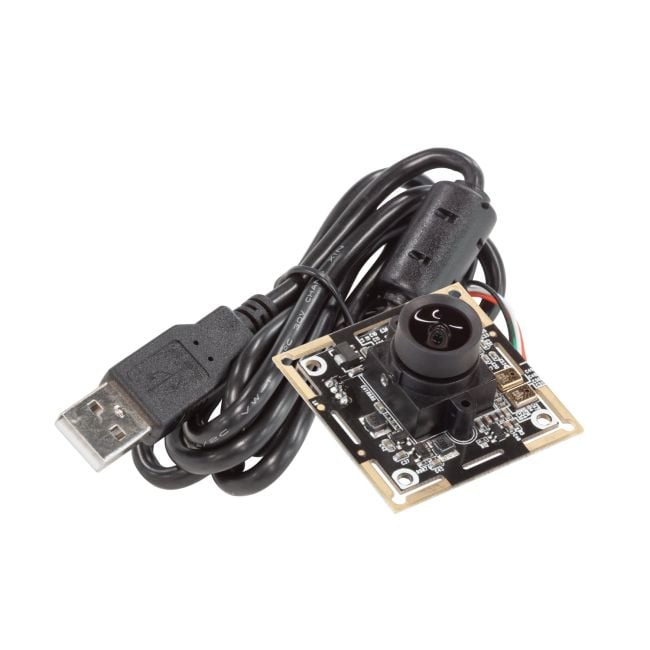

[Discontinued] Arducam 3MP WDR USB Camera Board with M12 Lens, Dual Microphones 1/3" AR0331 CMOS Senor USB Audio Webcam Module for Computer, Laptop, Android Device, and Raspberry Pi
SKU
UB0237
Discontinued, check alternative item B0438
- Ultra HD Resolution and WDR: 3 Megapixel 1080P USB camera with dual microphone, ultra HD 1/3” AR0331 sensor, max resolution is 2048 x 1536@15fps, dynamic range up to 110DB, which can provide sharp image and accurate color reproduction.
- High-Quality Imaging: High-quality 70-degree horizontal view angle M12 lens with IR filter, which provides decent image quality. MJPG 30fps@1080P/720P/1280 x 1024/640 x 480/320 x 240; YUY2 30fps@640 x 480/320 x 240; H264 30fps@1080P/720P/1280 x 1024/640 x 480/320 x 240.
- Capture Video with Audio: Dual Microphones for high-quality digital MIC (optional dual/single channel). MJPEG/YUY2/H.264 compression format optional. Contrast/Saturation/White Balance/Exposure/Acutance parameters are adjustable.That all means that you can get a colorful and vivid video.
- Plug&Play: UVC-compliant, just connect the camera to a PC computer, laptop, Android device, or Raspberry Pi with the USB cable without extra drivers to be installed.
- Applications: This mini-size camera board (38x38mm) highly recommended for the video surveillance system, live streaming, videoconference, dashcam, and other video vision applications that need high frame rates with high resolution.
$64.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
Arducam UB0237 is a 3MP, based on the 1/3" AR0331 image sensor, UVC compliant, HDR USB 2.0 camera.
No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.
SPECS
Camera
- Sensor: 1/3” AR0331
- Resolution: 2052(H)x1536(V)
-Frame Rate: MJPG 15fps@2048 x 1536; 30fps@1080P/720P/1280 x 1024/640 x 480/320 x 240; YUY2 5fps@1080P/1280 x 1024; 10fps@1280 x 720; 30fps@640 x 480/320 x 240; H264 30fps@1080P/720P/1280 x 1024/640 x 480/320 x 240.
Lens
-Field of View (FOV): 70°(H)
-Lens Mount: M12
-IR Sensitivity: Integral 650 IR filter, only visible light
-Focusing Range: 3.3ft (1M) to infinity
-EFL: 6.0mm
Functionality and Compatibility
-Adjustable parameter: Saturation, Contrast, Acutance, White balance, Exposure.
-System Compatibility: Windows XP (SP2, SP3)/Vista/7/8/10, Linux, and Mac with UVC
Power
-Power supply: USB powered 5V
-Working Current: MAX 300mA
Physical
-Operating Temp: -4°F~158°F (-20°C~+70°C).
-Dimension: 38mmx38mm
-Hole Pitch: 34mmx34mm, 28mmx28mm
-Cable Length: 3.3ft (1M).
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
