- Low Power Consumption: Minimize active illumination power and reduce the system power requirements.
- More Applications: Gaze and eye-tracking capabilities, 3D image, depth sensing, etc.
- Piavriety Solutions: Arducam Pivariety camera solution
- Easy to Setup: Connected directly to RPi’s CSI-2 camera interface without additional hardware.

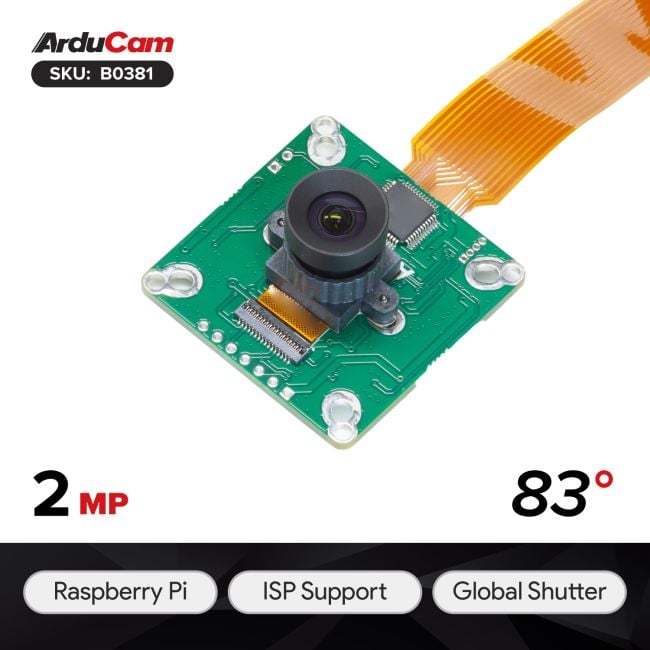

2MP Global Shutter OV2311 Mono Camera Modules Pivariety(NoIR ), compatible with Raspberry Pi ISP and Gstreamer Plugin-Arducam
SKU
B0381
$109.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
Arducam Pivariety is a Raspberry Pi camera solution to take the advantage of using its hardware ISP functions. For a long time, Raspberry Pi users are limited to use the closed-source official supported camera driver and camera modules (V1/V2/HQ). Now Arducam made it possible to provide well-tuned ISP for Pivariety camera modules with Auto Exposure, Auto White Balance, Auto Gain Control, Lens Shading Correction, etc.
This B0381 is a new member of Arducam Pivariety series, which adopts a 1/2.9Inch 2MP Global Shutter sensor OV2311, assembled with a Low distortion lens. Based on OV2311 mono Global Shutter sensor, you can achieve moving capture, factory supervise, 3D image and so on.
Applications
- Augmented and virtual reality
- Drones
- 3D imaging
- Machine vision
- Industrial bar code scanning
- Industrial automation
Specifications
| Image Sensor | Monochrome Global Shutter OV2311 |
| Pixel Size | 3 μm x 3 μm |
| Active Array Size | 1600 x 1300 |
| Optical Size | 1/2.9 inch |
| Frame Rates | 1600 x 1300@30fps, 1600x 1080@30fps, 1280 x 720@60fps |
| Input clock frequency | 6~27 MHz |
| Max S/N ratio | 37.4 dB |
| Dynamic range | 68dB |
| IR Sensitive | No IR filter, sensitive to IR |
| FOV on 1/4” RPi Camera | 83° (H) |
| Lens Mount | M12 |
| Output interface | 2-lane MIPI |
| Output formats | RAW 8/10 bit |
| Minimum exposure time | 1 row period (11.3us at the resolution of 1600x1300 on Raspberry Pi) |
Package Including
- 1 x Arducam 2MP OV2311 ISP Camera Module
- 1 x 150mm 15-22 pin 1.0mm FPC cable
- 1 x 150mm 22-22 pin 1.0mm FPC cable
Note
- Raspberry Pi is not included in the package
- You need driver for this camera module, please refer to the following documentation to run it
Documentation
- Introduction for Arducam OV2311 PiVariety Camera Module
- Quick Start Guide for Arducam PiVariety Camera Module
- External Trigger Mode for Global Shutter Camera on Raspberry Pi
- 3D Drawing
