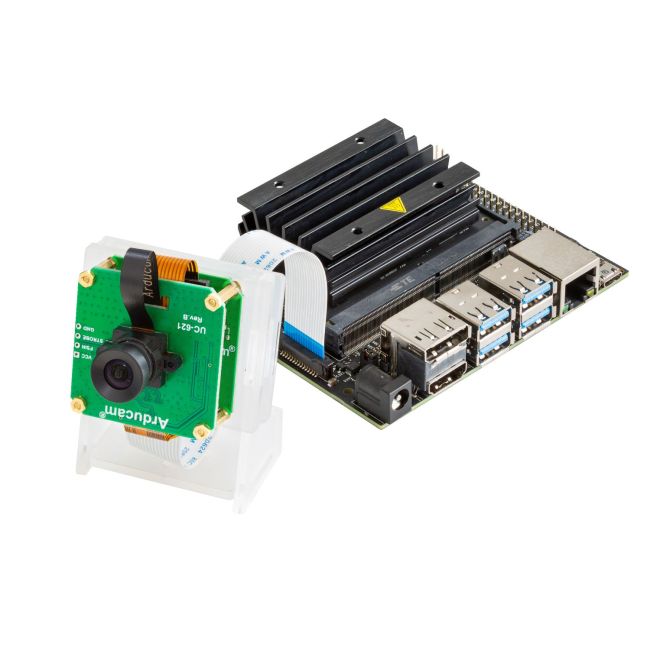

[Discontinued] Arducam 2MP Global Shutter OG02B10 Color Camera Modules with M12 lens for Jetson Nano
SKU
B0344
Discontinued, check alternative item B0429.
$109.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
As part of Project Jetvariety, which allows any camera modules to be connected to the high-speed CSI-2 connector on the Jetson Nano. Arducam released this 2MP OG02B10 Global shutter camera module, and it can be connected directly to Jetson Nano’s CSI-2 camera interface without additional hardware.
Based on 1/2.9-inch Omnivision OG02B10 image sensor which adopts OmniPixel3-GS™ technology, it provides full-frame, sub-sampled, and windowed 8/10-bit MIPI images, and capable of operating at up to 60fps in full resolution at 2-lane MIPI bus with complete user control over image quality.
Due to the sensor's high resolution, the OG02B10 offers exceptionally accurate gaze- and eye-tracking capabilities, and it achieves high near-infrared quantum efficiency to minimize active illumination power and reduce the system power requirements.
⚠️ KERNEL CAMERA DRIVER USED
This camera relies on kernel drivers to work – one kernel version, one camera driver. Up or downgrading your OS leads to a kernel bump, and you may need to re-install a matching driver.
Features
Sensors
- Sensor: Global Shutter OG02B10 Color
- Pixel size: 3 µm x 3 µm
- Active array size: 1600 x 1300
- Optical Format size: 1/2.9"
- Maximum image transfer rate: 1600 x 1300: 60 fps
- Support for image sizes: 1600 x 1300, 1280 x 720, 640 x 480
- Input clock frequency: 6~27 MHz
- Max S/N ratio: 37.4 dB
- Dynamic range: 68 dB
Lens
- Lens Thread: M12 x 0.5P
- Lens Field of View(FoV): 83°(H)
- IR Sensitivity: with IR Filter, sensitive to visible light
Camera Module
- Output interface: 2-lane MIPI
- Output formats: RAW 8/10 bit
- Minimum exposure time: 1 row period (11.3us at the resolution of 1600x1300 on Jetson Nano.)
Driver Features
- Support Gray, Y10, Y16
- Support standard V4L2 framework, Video Nodes and Controls (Exposure, Gain and depending on camera parameters)
- Support External Trigger Global Shutter Camera
- Support Single Line Driver Installation Command
- Support OpenCV Friendly and Provides Source Code Demonstration
- Support Dual Camera Synchronzation
Applications:
- DSC
- Machine Vision
- Robotics
- Face Recognition
Package Including
- 1pcs Arducam 2MP OG02B10 Color Camera Module
- 1pcs Arducam Adapter Board for Jetson Nano
- 1pcs 150mm 15pin 1.0mm FPC cable
- 1pcs 73mm 15pin 1.0mm to 22pin 0.5mm pitch FPC cable
- Acrylic case for the camera module
How to purchase
You can purchase this item from Arducam distributors
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
