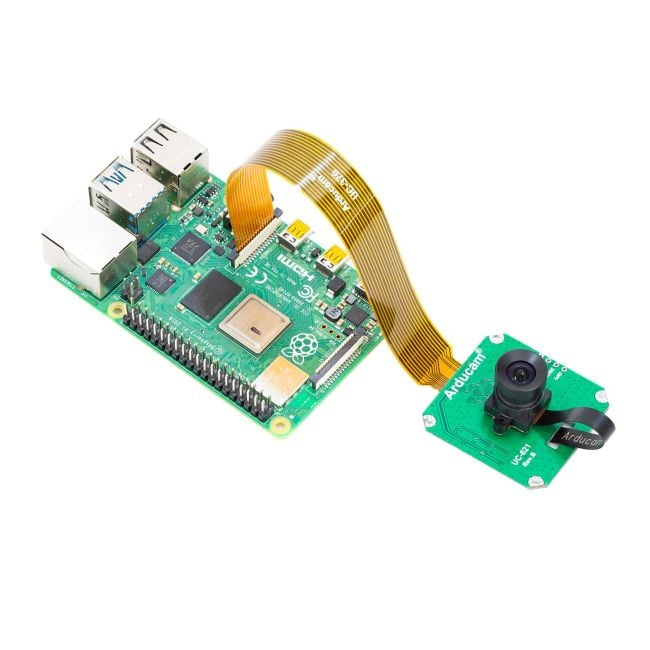

[Discontinued] Arducam 2MP Global Shutter OG02B10 Color Camera Modules with M12 lens for Raspberry Pi

Overview

Arducam 2MP OG02B10 Global shutter camera module is mainly designed for Raspberry pi boards, and it can be connected directly to RPi’s CSI-2 camera interface without additional hardware. This camera is based on 1/2.9-inch Omnivision OG02B10 image sensor which adopts OmniPixel3-GS™ technology to provide full-frame, sub-sampled, and windowed 8/10-bit MIPI images, and capable of operating at up to 60fps in full resolution at 2-lane MIPI bus with complete user control over image quality.

Due to the sensor's high resolution, the OG02B10 offers exceptionally accurate gaze- and eye-tracking capabilities, and it achieves high near-infrared quantum efficiency to minimize active illumination power and reduce the system power requirements.

Features

Sensors

• Sensor: Global Shutter OG02B10 Color
• Pixel size: 3 µm x 3 µm
• Active array size: 1600 x 1300
• Optical Format size: 1/2.9"
• Maximum image transfer rate: 1600 x 1300: 60 fps
• Support for image sizes: 1600 x 1300, 1280 x 720, 640 x 480
• Input clock frequency: 6~27 MHz
• Max S/N ratio: 37.4 dB
• Dynamic range: 68 dB

Lens

• Lens Thread: M12 x 0.5P
• Field of View(FoV): 83°(H)
• IR Sensitivity: with IR Filter, sensitive to visible light

Camera Module

• Output interface: 2-lane MIPI
• Output formats: RAW 8/10 bit
• Minimum exposure time: 1 row period (11.3us at the resolution of 1600x1300 on Raspberry Pi)

Applications:

• Augmented and virtual reality
• Drones
• 3D imaging
• Machine vision
• Industrial bar code scanning
• Industrial automation

Package Including

• 1pcs Arducam 2MP Global Shutter OG02B10 Color Camera Module for Raspberry Pi
• 1pcs Arducam 80mm 22pin Ribbon FPC Cable
• 1pcs Arducam 150mm 15pin to 22pin Ribbon FPC Cable

How to purchase

You can purchase this item from Arducam distributors
