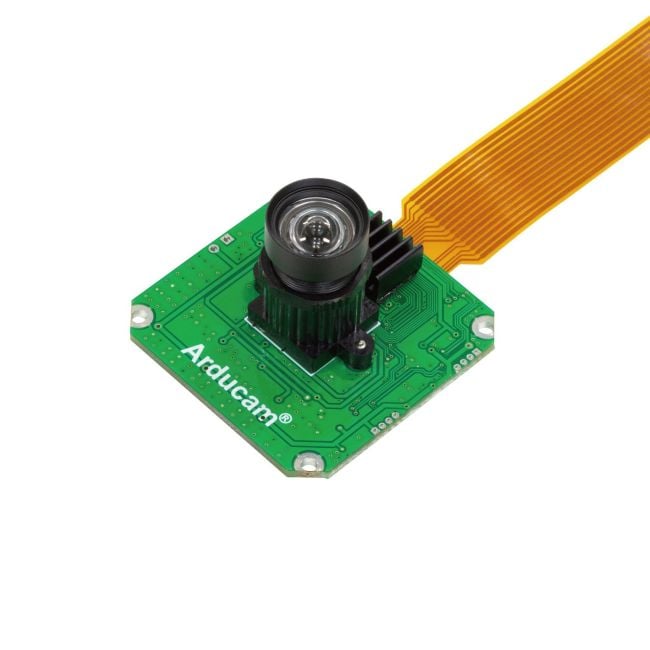

Arducam 2MP MIPI Camera Module with AR0230 OBISP for Jetson Nano
SKU
B0247
Check Pre-tuned ISP Series: Arducam xISP series and Arducam TrueSight Series
$39.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
Arducam 2MP OBISP MIPI camera features onboard ISP (Image Signal Processor) with extraordinary highlight contrast HDR performance with up to 96 dB dynamic range. It uses standard 22pin MIPIC SI-2 interface, and works seamlessly on Jetson Nano.
⚠️ KERNEL CAMERA DRIVER USED
This camera relies on kernel drivers to work – one kernel version, one camera driver. Up or downgrading your OS leads to a kernel bump, and you may need to re-install a matching driver.
Applications
- Cellular phones
- Dgital still cameras
- PC cameras
- IoT cameras
- Facial Recognition
Features
- Resolution: 2MP 1920 x 1080
- Shutter Type: Rolling Shutter
- Color Type: Color
- IR Sensitivity: built-in 650nm IR filter, visible light only
- Night Vision Ability: Optional with proper lens combination
- Interface: 2-Lane MIPI CSI-2
- ISP Features: AWB, AE, Flip, Mirror, Gamma, Sharpness, Saturation etc
- Platform Support: Jetson Nano or platform with MIPI CSI-2 interface
Specs
- Sensor Type: AR0230
- Pixel Size: 3.0um x 3.0um
- Optical Size: 1/2.7"
- Lens spec: M12 default(SKU:LN011), EFL: 4mm, FoV(H): 90°, F/NO: 2.8, Distortion: 3%
- Frame rate: 30fps@1920x1080/1280x720/640x480/320x240
- Responsivity: 4.0V /lux-sec
- SNRmax: 41dB
- Dynamic Range: Up to 96dB
- Power Consumption: max [email protected]
- Temperature Range: -10 ~ 70°C
- Camera Driver: V4L2 Compliant driver for Jetson Nano
- Board Size: 40mm x 40mm
- Powerline Frequency: 50Hz, fixed
Package Including
- 1pcs Arducam 2MP OBISP Camera Module
- 1pcs 80mm 22pin FPC cable
Documentation
User guide.pdf |
3D drawing.step |
