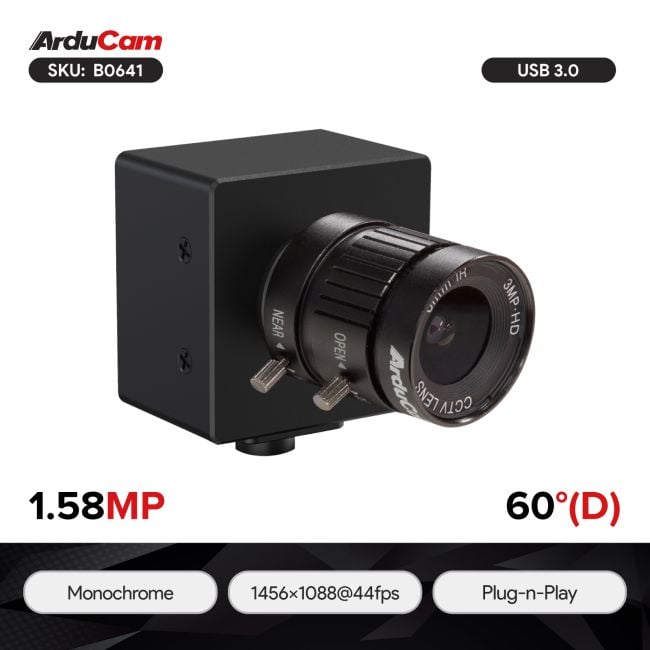

Arducam 1.58MP IMX296 Mono Global Shutter USB 3.0 Camera Module
SKU
B0641
- [Easy use] Plug and play with 44fps High-speed USB3 Connectivity.
- [Premium sensor] Based on 1.58MP IMX296 mono global shutter sensor, maximum still resolution of 1456*1088.
- [ISP] Proprietary on-board ISP advances image enhancement.
- [Robust housing] Metal case for sleek and robust use experience.
- [Selected lens] Professional 6mm EFL CS Mount Lens for Precision focus.
$199.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
Arducam's USB 3.0 camera series presents the IMX296 Mono global shutter model. With a 1.58MP CMOS sensor and a maximum still resolution of 1456x1088, this camera produces uncompressed, high-quality images in YUYV format. The on-board ISP optimizes image quality, while the global shutter, USB 3.0 connectivity, and a rapid 44fps frame rate ensure seamless video. Equipped with a 6mm CS lens boasting a 60° diagonal field of view, it delivers accurate and detailed images for diverse applications.Arducam latest USB 3.0 camera stands out with its user-friendly plug-and-play functionality. Offering compatibility with Windows and Linux OSs, no additional drivers are needed, simplifying the setup process. Moreover, its backward compatibility with USB 2.0 host ports ensures flexibility and seamless connectivity.
Applications
- Home Security System
- Wildlife Photography
- Unattended surveillance
- Industrial Vision/Machine Vision
- Automation, AI Project, etc.
Features
- Outstanding Imaging: Arducam's IMX296 USB3 camera boasts a 1.58MP mono global shutter sensor for exceptional clarity at 1456x1088 resolution.
- High-Speed USB 3.0 Connectivity: Enjoy up to 44fps frame rate flexibility and global shutter functionality, ensuring artifact-free high-speed motion capture.
- Equipped with a 6mm CS mount lens, this camera allows manual adjustment for sharp, clear images tailored to your needs.
- Advanced Image Enhancement: On-board ISP with proprietary tech ensures top-tier image quality through de-Bayer, gamma, BLC, AE, AWB, CCM, and RGB2YUV processes.
- Plug and Play: Seamless compatibility with Windows and Linux, plug-and-play functionality eliminates the need for additional drivers.
Specifications
| Camera | |
| Sensor | IMX296 |
| Resolution | 1.58 Megapixels |
| Chroma | Monochrome |
| Shutter Type | Global Shutter |
| Optical Format | 1/2.9" |
| Pixel Size | 3.45 µm x3.45 µm |
| Sensor Active Area | 1456(H)×1088(V) |
| Sensor Image Area | 5.023 mm x 3.788 mm (6.3mm diagonal) |
| Output Format | YUYV |
| Resolution@fps (USB3.0) | 1456x1088@44fps |
| Resolution@fps (USB2.0) | 1456x1088@10fps |
| Lens | |
| Focus Type | Manual Focus |
| FOV | 60°(D)×50°(H)×38°(V) |
| Lens Mount | CS Mount |
| F.NO | F1.2 |
| E.F.L | 6mm |
| IR Sensitivity | NoIR, sensitive to IR Light |
| Default Focus Distance | 200cm-INF |
| Distrotion | <-0.1% |
| Weight | 53g | USB Features |
| Interface | USB 3.2 Gen 1 device, backward compatible with USB 2.0 hosts |
| Connector | Type-C reversible interface connector |
| UVC Compliant | No additional drivers required |
| Functionality and Compatibility | |
| Supported OS | Windows, Linux |
| Recommend Imaging Applications | PotPlayer for Windows, qv4l2 for Linux |
| UVC Controls | Brightness, Contrast, Gain, Exposure (auto/manual) |
| Electrical and Mechanical | |
| Operating Voltage | 5 V +/- 5% |
| Power Consumption | Max: 1.89W |
| Overall Weight (Net) | 86g |
| Camera Board Size | 34×34 mm |
| Overall Size | 34x34 mm |
| Standard and Certifications | |
| Temperature range (Storage) | -4°F-167°F (-20°C to +85°C) |
| Temperature range (Operating) | 32°F-122°F (0°C to +50°C) |
| Certification | RoHS |
Package Including
- 1 x Arducam 1.58MP IMX296 Mono Global Shutter USB3 UVC Camera Module
- 1 x 1m USB A to Type-C Cable
Documentation
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
