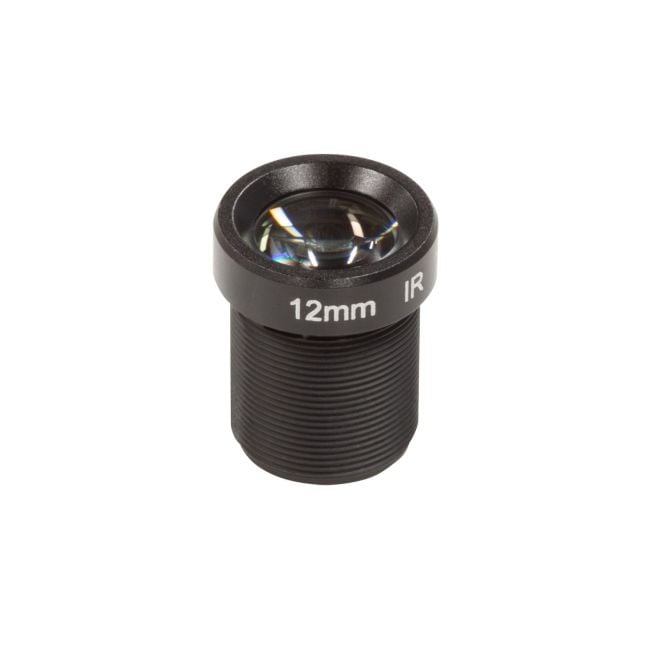

Arducam 12mm M12 lens M2512ZH03 for USB Camera(1/2.7" 1/2.8″ 1/2.9″)
SKU
LN065
$12.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
In order to meet the new demands of the lens to work with USB Camera, Arducam selected and tested a wide range of M12-mount lenses from long focus to wide angle for shooting on your USB cameras. It's now much easier for you to get the best lens you'll need, and we will keep the lens list growing in the near future.
If you want to grab all the available S-mount lenses for the USB camera, Arducam has also got a 10-in-1 M12 lens bundle here.
Lens Specification
- Model No: M2512ZH03
- Optical Format: 1/2.5”
- Focal Length: 12mm
- Aperture: F2.0
- Field of View (FOV): 27° (H) on 1/2.7“ USB Cam, 25° (H) on 1/2.8“ USB Cam, 23° (H) on 1/2.9“ USB Cam
- Mount: M12 mount
- Back Focal Length: 6.5mm
- MOD: 0.3m
- Dimension: Φ14×16.7mm
- Weight: 7g
Documentation
Introduction
A lens is used to converge the light beams to an image plane on the image sensor for an clear and sharp frame. To understand how to quickly sort out the best lens, refer to this focal length calculator page. Something You Should Know about the Lenses Focal Length Parallel incident light transmitted into a […]
Package Including
- 1pcs 1/2.5″ M12 25 degree camera Lens
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
