In order to meet the new demands of the lens to work with more image sensors with the large optical format and high resolution, Arducam selected and tested a wide range of 4K M12-mount lenses from long focus to wide angle for shooting on your high quality cameras. It’s now much easier for you to get the best lens you’ll need, and we will keep the lens list growing in the near future.
This 12mm F/2.8 low distortion M12 lens provides a 28° Horizontal Field of View on 1/2.3″ sensors.
| Model No: | M1812ZH03S |
| Resolution: | 8MP+ |
| Optical Format: | ~8.8mm Image circle(Up to 1/1.8”) |
| TV Distortion : | <-1% |
| Effective Focal Length: | 12mm |
| Back Focal Length: | 8.57mm |
| HFOV on 1/1.8″ Camera: | 32° |
| HFOV on 1/2.3″ Camera: | 28° |
| IR Sensitivity: | With 650nm IR filter, sensitive to visible light |
| Construction: | 5G+IR |
| Aperture: | F2.8 |
| MOD: | 0.1m |
| Mount: | M12 x P0.5 |
| Length Holder Height: | 10~12mm |
| Dimension: | ф14 x 13.10mm |
| Weight: | 5g |
Package Contents

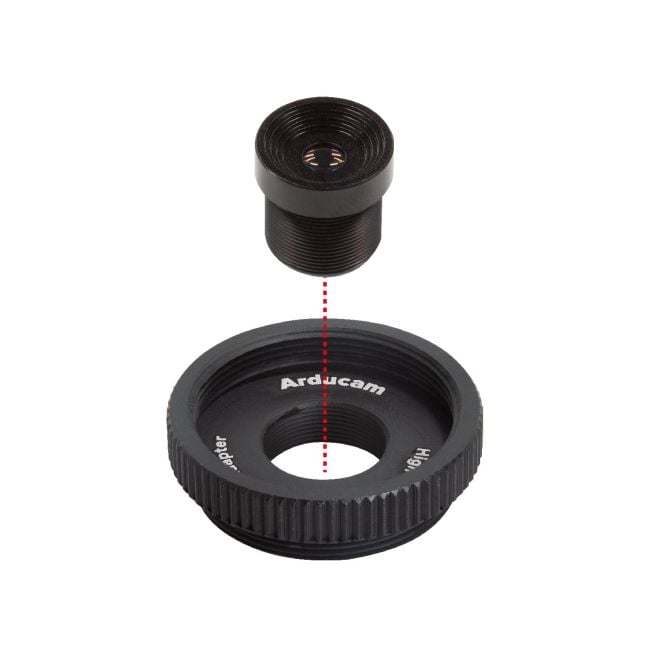

- 1pcs Arducam 1/1.8″ 4K M12 Mount 12mm Focal Length Low Distortion Camera Lens M1812ZH03S
- 1pcs M12 lens adapter
