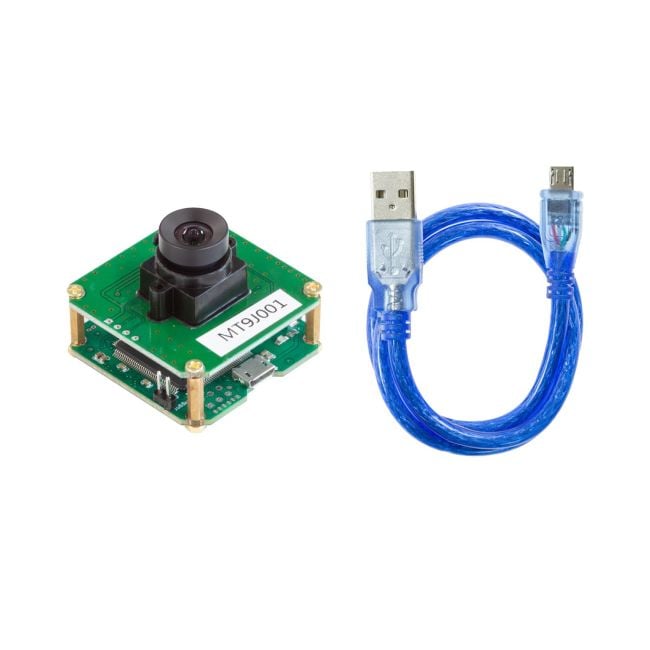

Arducam 10MP USB Camera Evaluation Kit - CMOS MT9J001 1/2.3-Inch Monochrome Camera Module with USB2 Camera Shield

Overview

To help customers evaluate the cameras or build a prototype with your own circuits without dealing with fine pin pitch flex cable or soldering balls, Arducam released the evaluation kit with camera breakout boards and Arducam USB2/USB3 camera shield without writing a single line of code.
The MT9J001 camera module features Aptina’s breakthrough low-noise CMOS imaging technology that achieves near-CCD image quality (based on signal-to-noise ratio and low-light sensitivity) while maintaining the inherent size, cost, and integration advantages of CMOS. It incorporates the monochrome version of the MT9J001 sensor on board.
1/2.3" 10MP (3856 x 2764) CMOS monochrome rolling shutter with global reset release camera module MT9J001 .
World-Class 1.67μm Pixel Sensitivity, Produced on Aptina’s world-class 1.67μm pixel with Aptina A-Pix technology, this high-resolution, highly sensitive compact sensor is perfect for DSC/DVC designs.
Improved Low Light Performance Equivalent level as CCD sensor to support DSC applications.
Preprocessing Features, including resampling for sub-sampled video and 2D defect correction, provide improved image quality.

Features

• 1/2.3" optical format
• Monochrome pattern
• 10MP 3856 x 2764 MT9J001 sensor
• 1.67 x 1.67 um Pixel size
• 0.31V/lux-sec responsivity
• 65.2dB dynamic range
• single 3.3V power input
• Parallel camera interface
• M12 mount lens

Applications

• Digital video cameras
• Digital still cameras
• Industrial camera
• Medical camera
• Microscopy camera

Documentation:

Datasheet.pdf
