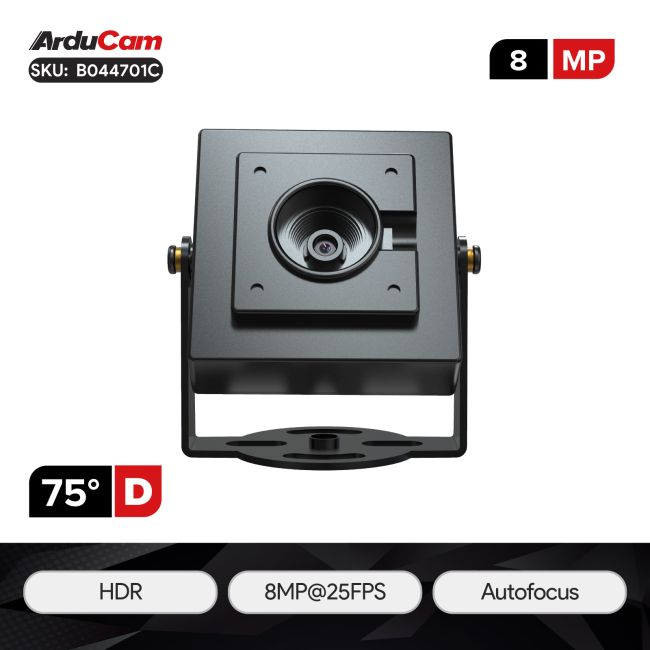

8MP HDR USB Autofocus Camera Module with Metal Housing for Windows, Linux, Android, and Mac OS, A179
SKU
B044701C
- [Plug-and-Play] No additional driver is needed.
- [HDR] Features the High Dynamic Range function.
- [High Resolution] 8MP HD, Max resolution: 3264*2448
- [Autofocus] Armed with a 63° (HFOV) Autofocus Lens.
- [Metal Case] Metal case, ensuring both heat-sinking and product completeness.
$63.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
8MP HDR USB camera module with a robust metal housing, offering high-resolution autofocus imaging (up to 3264×2448) and excellent thermal performance. Compatible with Windows, Linux, Android, and macOS, it supports plug-and-play operation with no additional drivers required. Equipped with a 63° HFOV autofocus lens and HDR capability, it delivers clear, balanced images even in challenging lighting conditions—ideal for a wide range of applications.
Applications
- Robotics
- Precision Agriculture
- Medical and Scientific Research
- Document Scanning and Archiving
- Broadcast and Media Production
Features
- [Plug-and-Play] This camera module offers seamless plug-and-play compatibility with Windows, Linux, Android, and macOS systems. No additional drivers or software installations are necessary—just connect via USB and start capturing high-quality images instantly.
- [HDR] Equipped with High Dynamic Range (HDR) technology, the camera excels at producing well-balanced images in challenging lighting conditions. It effectively manages both bright highlights and deep shadows to deliver clear, detailed visuals across a wide range of environments.
- [High Resolution] Featuring an 8MP sensor, the camera captures stunning high-definition images with a maximum resolution of 3264×2448 pixels. This ensures sharp and detailed picture quality suitable for applications that demand precision imaging.
- [Autofocus] The integrated autofocus lens with a 63° horizontal field of view (HFOV) automatically adjusts to varying object distances, guaranteeing consistently sharp focus without manual intervention. This makes it ideal for dynamic scenes or applications requiring frequent refocusing.
- [Metal Case] Housed in a robust metal enclosure, the camera benefits from excellent heat dissipation and structural integrity. The metal case not only enhances durability but also helps maintain stable performance during extended use or in demanding environments.
Specifications
| General Sepcs | B044701C | B0447C-1 |
|---|---|---|
| Image Sensor | ||
| Still Resolution | 8MP | 8MP |
| Color Filter Type | Color | Color |
| Shutter Type | Rolling | Rolling |
| Optical Size | 1/3.2'' | 1/3.2" |
| Output Format | MJPG/YUY2 | MJPG/YUYV |
| Pixel Size | 1.4 µm x 1.4 µm | 1.4um x 1.4um |
| Sensor Active Area | 3264(H)x2448(V) | 3264(H)x2448(V) |
| Frame Rate(MJPG) | 3264x2448@25fps, 2592x1944@30fps; 1920x1080@30fps, 1280x720@30fps; 640x480@30fps; |
3264×2448@30fps, 2592×1944@30fps; 1920×1080@30fps, 1600×1200@30fps; 1280×720, 640×480@30fps; |
| Frame Rate(AI Resolution(YUV)) | 640x480@30fps, 320x240@30fps; 320x320@30fps, 128x128@30fps; 96x96@30fps; |
1280×720@10fps, 640×480@30fps; |
| Lens | ||
| IR Sensitivity | Integral 650nm IR Filter, visible light only | Integral 650nm IR Filter, visible light only |
| Focus Type | Autofocus | Autofocus |
| FOV | 75°(D)×61°(H)×50°(V) | 63°(H) |
| Lens Mount | Stock Lens | Stock Lens |
| F.NO | F1.8 | F2.0 |
| E.F.L | 3.95mm | 3.54mm |
| Default Focus Range | 10cm-∞ | 10cm-∞ |
| USB Interface | ||
| Interface | USB 2.0 Device | USB 2.0 Device |
| Connector | B4B-ZR JST | B4B-ZR JST |
| UVC Compliant | No additional drivers required | No additional drivers required |
| Electrical and Mechanical | ||
| Operating Voltage | 5V | 5V |
| Operating Temp. | 32°F-158°F (0°C to 70°C) | 32°F-158°F (0°C to 70°C) |
| Power Consumption | 1.75W | 1.5W |
| Camera Board Size | 32mmX32mmX1.6mm | 38mm x 38mm |
| Functionality and Compatibility | ||
| HDR Support | Yes | NO |
| Enclosure | with Metal Enclosure | with Metal Enclosure |
| Supported OS | Windows, Linux | Windows, Linux |
| Recommend Sample Application | Amcap for Windows, qv4l2 for Linux | Amcap for Windows, qv4l2 for Linux |
| UVC Controls | Brightness, Contrast, Saturation, White Balance (Auto/Manual), Gain, Lowlight Compensation, Focus (Auto/Manual), Exposure (Manual/Auto) | Brightness, Contrast, Saturation, White Balance (Auto/Manual), Gain, Focus (Auto/Manual), Exposure (Manual/Auto) |
Package Including
- 1 x Arducam 8MP AF Camera Module
- 1 x USB Cable (1m)
- 1 x Quick start guide
Notes
- The package contains small contents, please keep it away from children to avoid accidental ingestion
- After receiving the package, please confirm whether the contents of the package are consistent with the description.
Documentation
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
