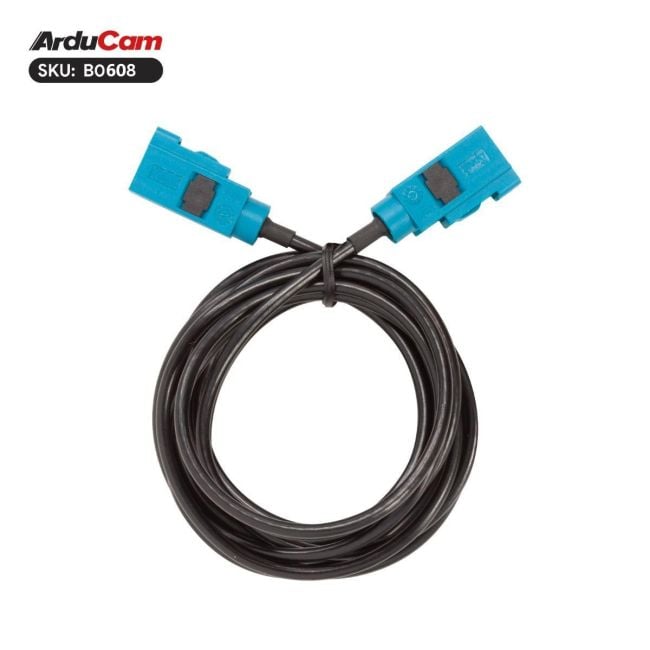

1 * 1m Fakra RF Coaxial Cable
SKU
B0608-4
- [8-Channel Camera Kit] Up to 8*camera setup for Jetson AGX Orin.
- [Sony ISX031 Sensor] 3 MP with 120 dB HDR and LED Flicker Mitigation.
- [GMSL2 Extension up to 15 m] High-speed, low-latency transmission over coaxial cable.
- [IP67-Rated Cameras] Fully sealed for outdoor and industrial environments.
- [Built-in ISP] Real-time hardware image processing for stable, vivid output.
$9.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
The 3MP ISX031 8-Channel GMSL2 Camera Kit brings together Sony’s high-performance ISX031 sensors and Arducam’s advanced GMSL2 extension technology to deliver a robust, long-range multi-camera solution for NVIDIA Jetson AGX Orin. Each camera module offers 120 dB HDR, LED Flicker Mitigation, and a built-in ISP, producing high-quality images even under extreme lighting conditions. With IP67 waterproof housings and coaxial extension support up to 15 m, this kit is engineered for outdoor robotics, autonomous vehicles, and industrial vision systems that demand reliability, clarity, and scalability.
Applications
- Multi-camera perception and sensor fusion
- Smart traffic and outdoor surveillance
- Industrial and warehouse automation
- AI vision systems on Jetson AGX Orin
Autonomous vehicles and mobile robotics
Features
- ▶ 8-Channel Synchronized Imaging Supports up to eight ISX031 cameras connected simultaneously to NVIDIA Jetson AGX Orin, ideal for multi-view perception and 360° awareness applications.
- ▶ GMSL2 Extension up to 15 m High-speed GMSL2 interface enables reliable, low-latency image transmission over a single coaxial cable — up to 15 meters. (Default kit includes eight 1 m coaxial cables.)
- ▶ 120 dB High Dynamic Range (HDR) Captures precise details in both bright and dark regions, ensuring superior visibility in complex lighting environments.
- ▶ Built-in Image Signal Processor (ISP) Per-camera hardware ISP handles color tuning, exposure control, and tone mapping, ensuring consistent image quality across all eight channels.
- ▶ LED Flicker Mitigation (LFM) Minimizes flicker artifacts under LED or strobe lighting, making it ideal for traffic, warehouse, and smart-city applications.
- ▶ IP67 Waterproof and Dustproof Design Each camera module is fully sealed to IP67 standards, offering dependable protection against dust, moisture, and weather exposure.
- ▶ Designed for NVIDIA Jetson AGX Orin Native compatibility with Jetson AGX Orin for high-bandwidth multi-camera input, optimized for AI and autonomous vision workloads.
Specifications
| Image Sensor | |
| Sensor | ISX031 |
| Resolution | 3 Megapixels |
| Chroma | Color |
| Shutter Type | Rolling Shutter |
| Optical Format | 1/2.42" |
| Pixel Size | 3.0 µm x3.0 µm |
| Sensor Active Area | 1920(H)×1536(V) |
| Sensor Image Area | 5.760 mm x 4.608 mm (7.38 mm diagonal) |
| Resolution@fps | 1920x1536@60fps |
| ISP | Built-in ISP |
| Lens | |
| Focus Type | Fixed Focus |
| FOV | 152°(D)×120°(H)×92.8°(V) |
| Lens Mount | M12 |
| F.NO | F2.2 |
| E.F.L | 3.0mm |
| IR Sensitivity | Integral 650nm IR Filter, visible light only |
| Distrotion | <-20% |
| Alignment Method | Active Alignment (AA) |
| Functionality and Compatibility | |
| Camera Interface | GMSL2 |
| Connector | FAKRA Connecter |
| Data Transmission Lanes | 4-Lane |
| Output Format | UYVY |
| HDR Support | Yes |
| Supported JetPack Version | JetPack 6.2.2 / L4T 36.5.0 and later |
| Supported Platform | NVIDIA Jetson AGX Orin |
| Electrical and Mechanical | |
| GMSL Cable Length | 1m by default, up to 15m (please contact [email protected] for 15m cable) |
| Overall Weight (Net) | 412g |
| Overall Size | Camera Module: 23 x 23 x 31.45 mm Deserializer Board: 93.2 x 58.3 mm |
| Standard and Certifications | |
| Temperature range (Storage) | -4°F-167°F (-20°C to +85°C) |
| Temperature range (Operating) | 32°F-122°F (0°C to +50°C) |
| IP Rating | IP67 |
| Certification | RoHS |
Notes
- The product supports streaming output by default. If you need to external trigger output, please contact Arducam Sales in advance for confirmation.
Package Including
- 1 x 1m Fakra Z Female to Female RF Coaxial Cable
Documentation
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
