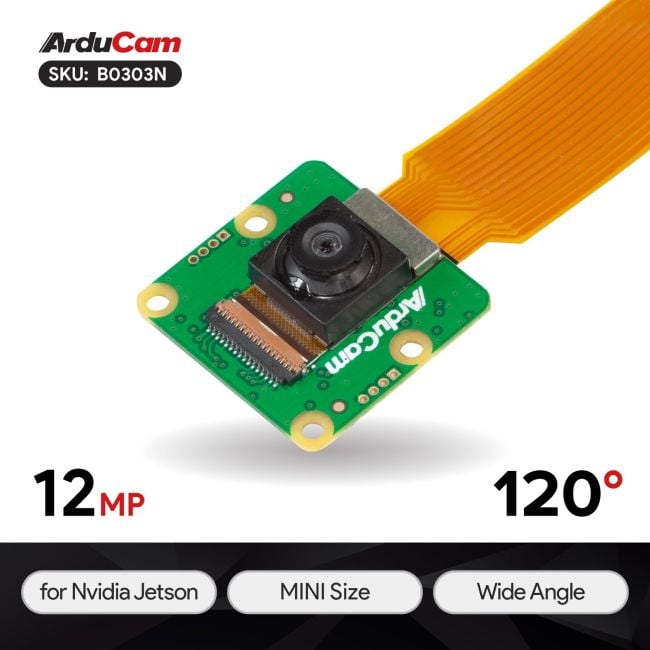

[Discontinued] 12.3MP 477M MINI Wide Angle Camera Module for Nvidia Jetson Nano/Xavier NX
SKU
B0303N
Discontinued, check alternative item B0303R
- Wide Angle: 120°(DFOV)
- High Resolution: Based on 12.3MP 477M image sensor
- Mini Size: 24mm x 25mm camera board, easy to move
- East to Use: Just need to install the corresponding driver for it
$39.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
IMX477 camera modules have the high resolution.But most of IMX477 cameras generally have larger camera boards and larger lenses. In order to make the IMX477 camera more convenient and space-saving, we have developed this camera based on the 477M image sensor. The 477M and IMX477 have exactly the same optical size and pixels, and the frame rate at different resolutions is also the same. We equipped a 1/2.3 inch 6p lens on this basis. The camera board is about 24x25mm, which makes it more flexible and convenient to move and transfer. Through the specially equipped lens and 477M sensor, we have achieved the compatibility of high pixel and tiny size.
★KERNEL CAMERA DRIVER USED
This camera relies on kernel drivers to work – one kernel version, one camera driver. Please refer to the Supported JetPack Version for Different NVIDIA Jetson Platforms to ensure compatibility.
★ SUPPORTED PLATFORM DISCLAIMER
This camera is specifically designed for the official NVIDIA® Jetson™ Developer Kit by default and does not support third-party carrier boards.
★ADDITIONAL ACCESSORY INSTRUCTIONS
The 22-22pin FFC Cable is included in the package. But please note that: If you are using an AGX Orin, an additional camera adapter (B0473) is also required.
Applications
- DSLR Camera Control
- Time-lapse Machine
- Security System
- Smart Video Doorbell
- Face Recognition
- Instant (Polaroid-Style) Camera, etc.
Specifications
Camera
| Still Resolution | 12.3 Megapixels |
| Video Modes | NVIDIA Jetson Orin NX/Orin Nano/AGX Orin: L4t 32.x: 4032x3040@30fps, 3840x2160@30fps, 1920x1080@60fps L4t 35.x: 4032x3040@20fps, 3840x2160@30fps, 1920x1080@60fps |
| Sensor Resolution | 4056 x 3040 pixels |
| Sensor image area | 6.287mm x 4.712 mm (7.9mm diagonal) |
| Pixel Size | 1.55 µm x 1.55 µm |
| Optical Size | 1/2.3" |
| IR Sensitivity | Integral IR-cut Filter, visible light only |
Lens
| Focus Type | Fixed Focus |
|---|---|
| Focal Length | 2.75mm |
| F.NO | F2.8 |
| Field of View(FOV) | 120°(D) |
| Lens Mount | / |
Electrical and Mechanical
| Camera Board Size | 25 × 24mm |
Package Including
- 1 x 12.3MP 477M Camera Module for Nvidia Jetson
- 1 x 150mm 15pin to 22pin flex cable
- 1 x 150mm 22pin to 22pin flex cable
Note
- Nvidia Jetson Board is not included in the package
- The Camera needs corresponding driver to be used, please refer to the following documentation to install the driver and use the official command to run the camera
Documentation
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
