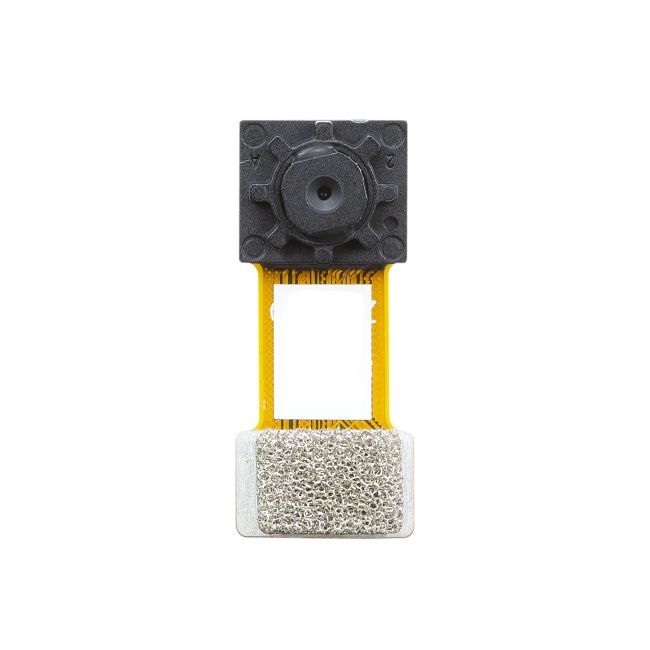

0.3MP OV7251 1/7.5'' CMOS Global Shutter Standalone Camera UC-7251-716

DETAILS

Features

• EFL: 13
• F.NO: 2.2
• View Angle: D85.6°/H72.9°/V57.7°
• Distortion: <1.5%
• Image quality: >=200LW/PH(AT=0.13m)
• Focusing Range: 0.065m-∞(AT=0.13m)
• Chip Type: OV7251-G04A-1E(COB)
• Array Size: 640*480
• Lens Size: 1/7.5 inch
• DVDD: 1.5V
• AVDD: 2.8V
• D0VDD: 1.8V
• 3um*3um pixel with OmniPixel3-GS(TM) technology
• automatic black level calibration (ABLC)
• programmable controls for frame rate, mirror and flip, cropping and windowing
• support output formats: 8/10-bit RAW
• support for image sizes: 640*480,320*240, 160*120, fast mode switching
• supports horizontal and vertical 2:1 and 4:1 monochrome subsampling

APPLICATIONS

• cellular phones
• digital still cameras (DSC)
• digital video camcorders (DVP)
• PC multimadia
• tablets

Specifications

• active array size: 640*480
• power supply:
• analog: 2.8V (nominal)
• core: 1.5V (optional)
• I/O: 1.8V (nominal)
• power requirements:
• active: 117 mV @ 100 fps, VGA output
• standby: 15 uA for AVDD,40 uA for DOVDD without input clock, 700 uA for DOVDD with input clock
• XSHUTDOWN: 5 uA for AVDD, 5uA for DOVDD
• temperature range:
• operating: -30℃ to 70℃ junction temperature
• stable image: 0℃ to 50℃ junction temperature
• output interface: 1-lane MIPI/LVDS serial output
• output formats: 10-bit RGB RAW or BW
• lens size: 1/7.5"
• input clock frequency: 6~27 MHz
• lens chief ray angle: 29° non-linear
• max S/N ratio:39 dB
• dynamic range: 69.6 dB @8*gain
• maximum image transfer rate: 640*480: 100 fps (see table 2-1)
• sensitivity:10,800mV/(uW.cm^-2.sec) @ 850nm
• scan mode: progressive
• maximum exposure interval: 502*t(ROW)
• pixel size: 3 um * 3 um
• dark current: 350 e^-/s @ 50℃ junction temperature
• image area: 1968 um * 1488 um
• package dimensions: 3910 um * 3410 um
• Camera connector: BBR13-24K6417
• Board connector: BBR43-24KB533
