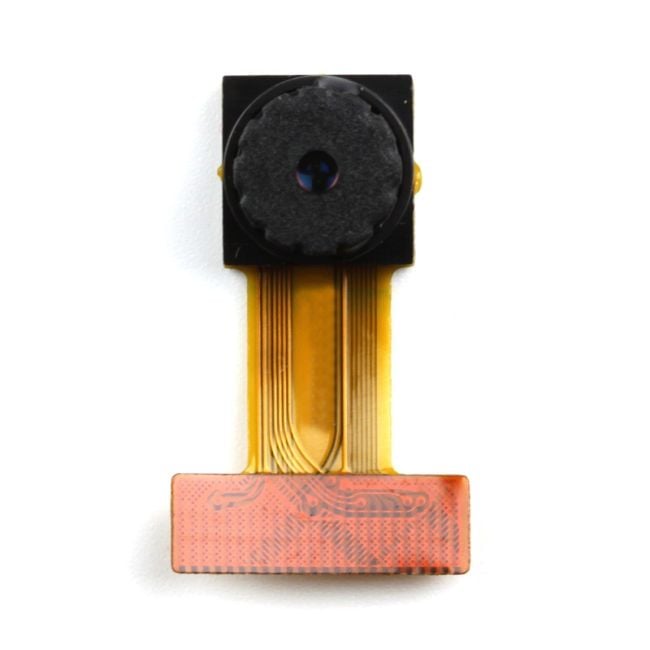

1MP OV9712 1/4'' CMOS Sensor Standalone Camera UC9712-A

DETAILS

Features

• high sensitivity for low-light operation
• ultra low power and low cost
• automatic image control functions: automatic exposure control (AEC), automatic gain control (AGC), automatic white balance (AWB), automatic band filter (ABF), automatic black level calibration (ABLC)
• programmable controls: frame rate, AEC/AGC 16-zone size/position/weight control, mirror,flip, cropping, and windowing
• image quality controls: lens correction and defective pixel canceling
• output support for raw RGB
• supports image sizes: WXGA (1280*800) and 640*400
• support for horizontal and vertical sub-sampling
• support for black sun cancellation
• standard serial camera control bus (SCCB) interface
• digital video port (DVP) parallel output interface
• embedded one-time programmable (OTP) memory
• on-chip phase lock loop (PLL)
• built-in 1.5V regulator for core

Applications

• cellular phones
• picture phones
• toys
• PC multimedia
• digital still cameras

Specifications

• active array size: 1280*800
• power supply:
• analog: 3.0~3.6V
• core: 1.5VDC ± 5% (built-in regulator)
• I/O: 1.7~3.6V
• power requirements:
• active: 110 mW
• standby: 50uA
• temperature range:
• operating: -30℃ to 70℃ (see table 8-1)
• stable image: 0℃ to 50℃ (see table 8-1)
• scan mode: progressive
• maximum image transfer rate: WXGA (1280*800): 30 fps 640*400: 60 fps
• sensitivity:3300 mV/(Lux•sec)
• S/N ratio: 39 dB
• dynamic range: 69 dB
• maximum exposure interval: 826*t(ROW)
• pixel size: 3um*3um
• dark current: 20mV/sec @ 60℃
