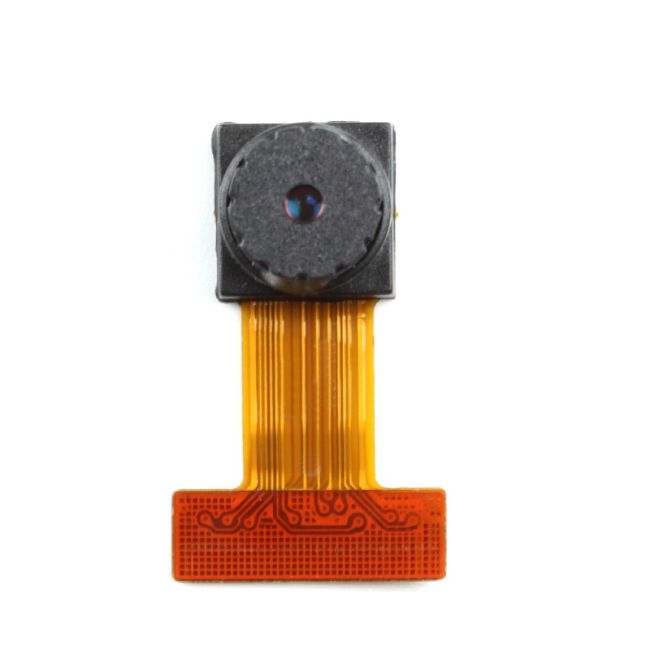

Arducam 1MP NT99141 1/4'' HD Color CMOS Sensor OEM Camera Module UC99141-A
SKU
U6044
- USB 3.0 quick development?and evaluation board for sensors like NT99141.
- Still Picture Resolution: HD 1280 x 720, support any size scaling down.
- Frame Rate: 640 x 360 @ 60fps, HD (1280 x 720) @ 30fps
- IR Sensitivity: Integral IR filter, visible light only
- Size: 20.87 x 12.5 x 6.35 mm, neck width is 6mm
- Power Supply: Digital 1.5V, analog 3.3V, I/O 1.8V/2.8V
- Mating Connector: FH52E-24S-0.5SH(99)
$7.00
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
To meet the requirement of the mini camera size for some space or weight constrained application, Arducam now released an OEM camera module series Standalone, which combines the PCB into the camera cable to shrink the camera module greatly.
This U6044 is based on 1/4'' NT99141 HD CMOS sensor, adopts a fixed-focus lens and 6mm width flex cable, and you can read more about its specs in the next chapter.
Applications
- Notebook and Desktop PC cameras
- Toys
- Digital still cameras and camcorders
- Video telephony and conferencing equipment
- Security System
- Bar code reader
Features
- Low dark current
- Auto black level calibration
- Two-wire serial interface, 16-bit address, and 8-bit data
- Support output format: YCbCr (4:2:2), RGB565, RGB555,RGB444,Raw,CCIR656, and JPEG also.
- Support image size: HD (1280*720), and any size scaling down.
- Lens shading correction and Defect pixel correction.
- Automatic control functions: Auto-Exposure control (AE), Auto-White Balance (AWB)
- Including: Sharpness, noise reduction, defect correction, gamma, color saturation adjust.
- Special effects included.
- Anti-Shake
- Embedded 1.5V regulator for core power
- Target module size: 8*8mm
Key Specifications
| Items | Parameter | Value |
| Sensor | Sensor Type | 1/4" NT99141 |
| Array Size | 1288 × 728 | |
| Pixel Size | 3.0 μm × 3.0 μm | |
| Image Area | 3864 μm × 2184 μm | |
| Frame Rate | 640 x 360 @ 60fps | |
| HD (1280 x 720) @ 30fps | ||
| Lens | ELF: 2.8mm | 2.8mm |
| F.NO: 2.8 | 2.8 | |
| View Angle | 68° | |
| Distortion | ＜1.0% | |
| Power Supply | Digital | 1.5V |
| Analog | 1.8V/2.8V | |
| I/O | 3.3V | |
| Interface | Interface Type | DVP |
| Mating Connector | FH52E-24S-0.5SH(99) | |
| Dimension | Lens Dimension | 8 x 8 x 6.35 mm |
| Module Dimension | 20.87 x 12.5 mm |
Documentation
Introduction
Arducam now offers the stand-alone camera modules for customer who put these cameras into their products like toys, robots, drones and etc. Users don’t need to handle with the tiny and fine pin pitch sensor chip and small plastic lens, just take it for granted. The camera resolution is ranging from 0.3MP to 16MP with […]
How to purchase
You can purchase this item from Arducam distributors
