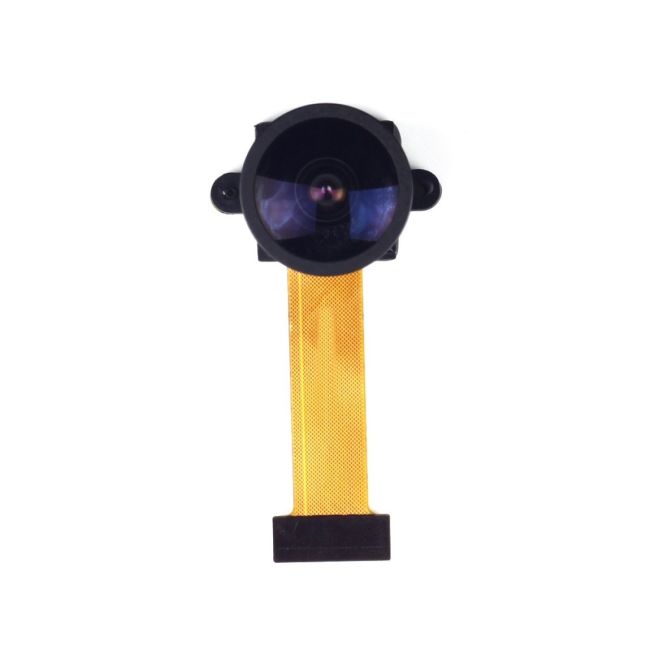

Arducam 1MP OV10633 1/3'' CMOS WDR sensor Standalone Camera UC10633-A46

Features

• Support for image sizes: HD 720p (1280 * 720), WVGA (752 * 480), VGA (640 * 480), 600 * 400, CIF (352 * 288), QVGA (320 * 240)
• Support for output formats: YUV and separated and combined RAW
• Parallel DVP interface
• High sensitivity
• Automatic exposure/gain
• Horizontal and vertical windowing capability
• Auto white balance control
• Aperture/gamma correction
• Serial camera control bus (SCCB) for register programming
• Low power consumption
• External frame sync capability
• 50/60 Hz flicker cancellation
• Defective pixel correction

Specifications

• Active array size: 1280 * 720
• Power supply: analog 3.14~3.47V, core 1.6~1.7V, I/O 1.7~3.47V
• Power requirements:
• Active: 532 mW typical @ 3.3V AVDD,1.65V DVDD,and 1.8V DOVDD, standby 480 uW typical @ 3.3V AVDD, 1.65V DVDD, and 1.8V DOVDD
• Temperature range: operating -20℃ to 85℃ junction temperature (see table 8-2)
  stable image: 0℃ to 50℃ junction temperature
• Output interfaces: 10-bit parallel DVP
• Output formats: up to 18-bit combined raw, separated 10-bit raw, 8-/10-bit YUV422
• Lens size: 1/3"
• Lens chief ray angle: 9° (see figure 10-2)
• Input clock frequency: 6~27 MHz
• Scan mode: progressive
• Shutter: rolling shutter
• Maximum exposure interval: 828 t_ROW
• Maximum image transfer rate: 30 fps full resolution
• Sensitivity: 3650 mV/Lux-sec
• Max S/N ratio: 39 dB
• Dynamic range: 115 dB
• Pixel size:4.2 um * 4.2 um
• Dark current: 2.5 mV/sec @ 50℃ junction temp
• Image aera： 5510.4 um * 3418.8 um
• Package dimensions: 11 mm * 11 mm
