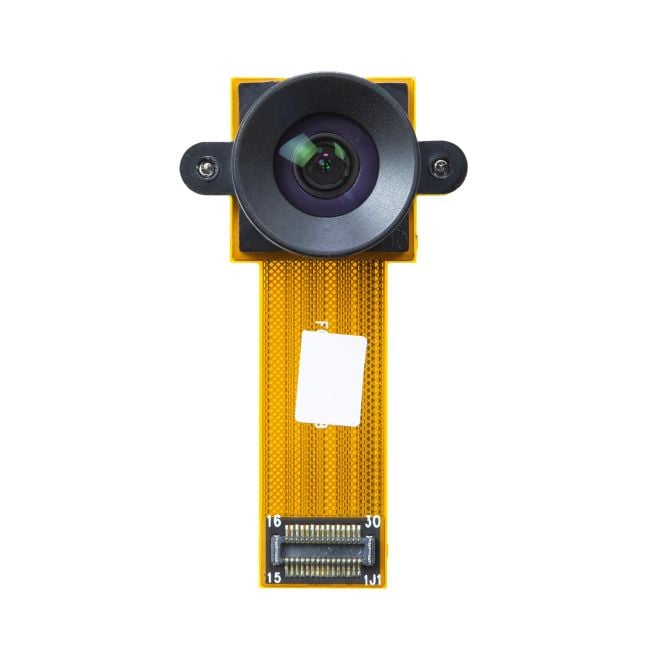

1MP OV9281 1/4'' CMOS Global Shutter Standalone Camera UC9281M1 MIPI Interface

DETAILS

Features

• 3um*3um pixel with OmniPixel3-GS(TM)technology
• Automatic black level calibration(ABLC)
• Programmable controls for frame rate,mirror and flip,cropping and windowing
• Support output formats: 8/10-bit RAW
• Fast mode switching
• Supports 2*2 monochrome binning
• Two-lane MIPIserial output interface
• Supports horizontal and vertical 2:1 and 4:1 monochrome subsampling
• Support for image sizes: 1280*800,1280*720,640*480,640*400
• Embedded 256 bits of one-time programmable(OTP) memory for part identification
• Two on-chip phase lock loops(PLLs)
• LED PWM
• Built-in strobe control

Applications

• Industrial bar code scanning

Specifications

• Active Array Size: 1296*816
• Power Supply:
• Analog: 2.8V(nominal)
• Core: 1.2V(nominal)
• I/O: 1.8V(nominal)
• Operating: -30℃ to +85℃ junction temperature
• Stable Image: 0℃ to 50℃ junction temperature
• Output Interface: 2-lane MIPI serial output
• Output Formats: 10-bit RAW
• Lens Size: 1/4"
• Input Clock Frequency: 6~27 MHz
• Lens Chief Ray Angle: 9° non-linear
• Maximum Image Transfer Rate: 1280*800: 120fps(see table 2-1)
• Scan Mode: progressive
• Maximum Exposure Interval: TBD
• Pixel Size: 3um*3um
• Image Area: 3896um*2453um
• Package Demensions: 5232um*4458um
• Lens spec: SKU:LN013  EFL: 2.8mm;  F.NO: 2.8;  View Angle: 75 Deg. (Horizontal)
