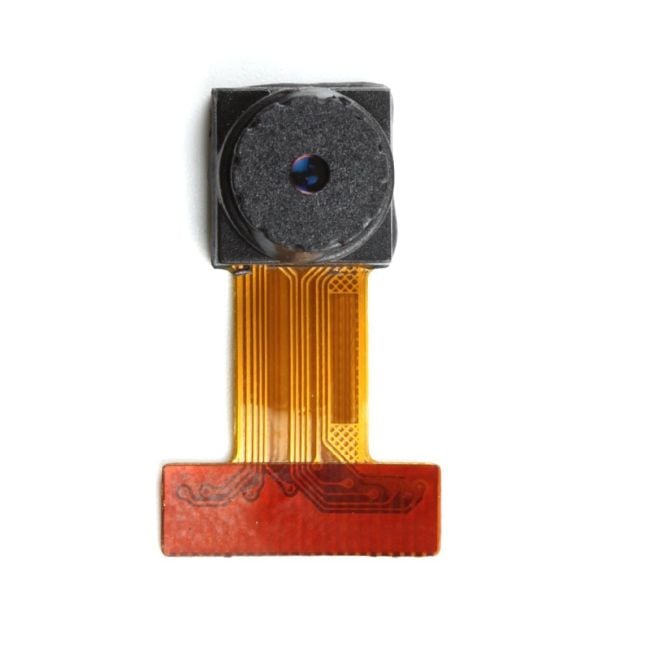

Arducam 0.3MP 1/4'' CMOS Sensor Standalone Camera UC7725-A

Features

• High sensitivity for low-light operation
• Standard SCCB interface
• Output support for Raw RGB,RGB (GRB 4:2:2, RGB565/555/444) and YCbCr (4:2:2) formats
• Supports image sizes: VGA, QVGA, and any size scaling down from CIF to 40 * 30
• VarioPixel^® method for sub-sampling
• Automatic image control functions including Automatic exposure control (AEC), automatic gain control (AGC), automatic white balance (AWB),
  automatic band filter (ABF), and automatic black-level calibration (ABLC)
• Image quality controls including color saturation, hue, gamma, sharpness (edge enhancement), and anti-blooming
• ISP includes noise reduction and defect correction
• Lens shading correction
• Saturation level auto adjust (UV adjust)
• Edge enhancement level auto adjust
• De-noise level auto adjust
• Frame synchronization capability

Key Specifications

• Array size: 640 * 480
• Power supply: digital core 1.8VDC ± 10%, analog 3.0V to 3.6V, I/O 1.7V to 3.3V
• Power requirements: active 120 mW typical (60 fps VGA,YUV),standby < 20 uA
• Temperature range: -20℃ to +70℃
• Output format: 8-bit (YUV/YCbCr 4:2:2 @ RGB565/555/444 @ GRB 4:2:2 @ Raw RGB data), 10-bit Raw RGB data
• Lens size: 1/4"
• Lens chief ray angle: 25° non-linear
• Max image transfer rate: 60 fps for VGA
• Sensitivity: 3.0V/(Lux • sec)
• S/N Ratio: 50dB
• Dynamic range: 60 dB
• Scan mode: Progressive
• Electronic exposure: up to 510:1 (for selected fps)
• Pixel size: 6.0 um * 6.0 um
• Dark current: 40 mV/s
• Well capacity: 26Ke^-
• Fixed pattern noise: <0.03% of V_PEAK-TO-PEAK
• Image area: 3984 um * 2952 um
• Package dimensions: 5345 um * 5265 um
