[Discontinued] 1.2MP Global Shutter USB Camera Evaluation Kit - CMOS AR0135 1/3-Inch Monochrome Camera Module with USB2 Camera Shield-Arducam
SKU
EK006
Discontinued, check alternative product EK025.
$149.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
To help customers evaluate the cameras or build a prototype with your own circuits without dealing with fine pin pitch flex cable or soldering balls, Arducam released the evaluation kit with camera breakout boards and Arducam USB2/USB3 camera shield without writing a single line of code.
The AR0135 module is a 1/3 inch 1.2MP global shutter Monochrome camera module which can be operated in its default mode or programmed for frame size, exposure, gain, and other parameters. The default mode output is a full-resolution image at 54 frames per second (fps). It outputs 12-bit raw data, using either the parallel output ports. The device may be operated in video (master) mode or in frame trigger mode.
High frame rate, high dynamic range, good sensitivity for machine vision with external trigger.
Features
1/3" optical format
1.2MP 1280 x 960 AR0135 global shutter sensor
3.75 x 3.75 u Pixel size
54fps at full resolution
5.3V/lux-sec responsivity
64dB dynamic range
single 3.3V power input
Parallel camera interface
M12 mount lens
Applications
Security
High dynamic range imaging
Unattended surveillance
Stereo vision
Machine vision
Automation
Documentation
1.2MP AR0134/AR0135 Global Shutter
Introduction Arducam AR0134/AR0135 camera breakout incorporates ON Semiconductor 1/3-inch 1.2 Mp CMOS digital image sensor with an active-pixel array of 1280 (H) × 960 (V).It can support 1.2 megapixel (1280H x 960V) digital still images and a 720p (1280H x 720V) digital video mode. It is designed for low light performance and features a global […]
Github

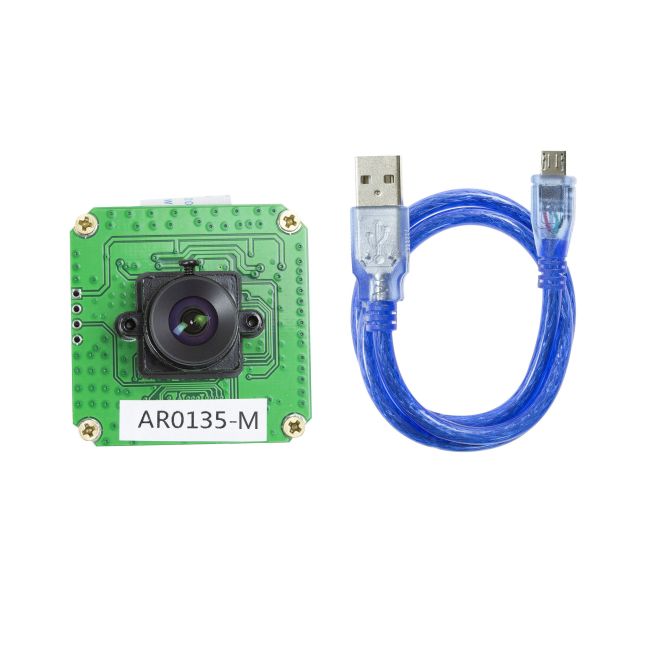

Packing List
1 pcs Arducam CMOS AR0135 1/3-Inch 1.2MP Monochrome Camera Module
1 pcs Arducam USB2 Camera Shield
1 pcs USB2 Cable
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
