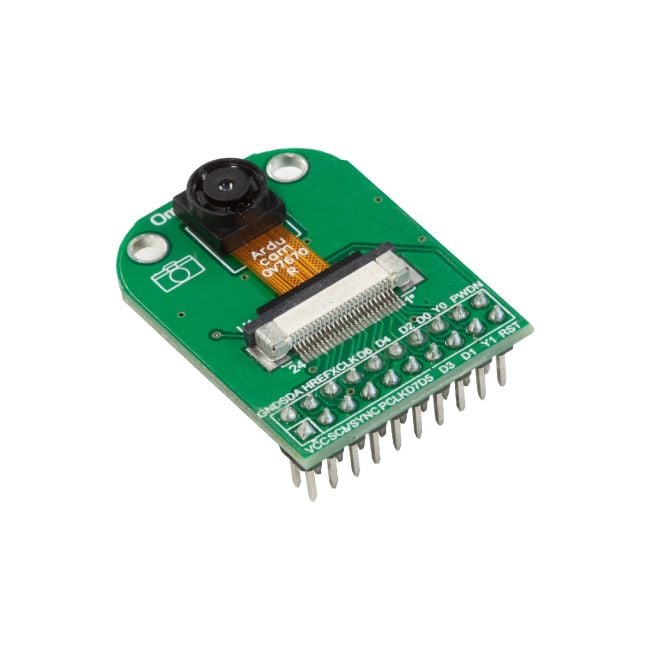

[Discontinued] Arducam OV7670 camera module with adapter board
SKU
B0361
Discontinued, check alternative item B0463.
$7.99
Overview
Specifications
Wiki
Documents
Video
Customization
Specification
Camera
- Array Size: 640 x 480 (VGA)
- Power Supply
Digital Core: 1.8VDC ± 10%
Analog: 2.45V to 3.0V
I/O: 1.7V to 3.3V
- Image Sensor Format: Type 1/6″
- Maximum Image Transfer Rate: 640×480@30fps
- Sensitivity: 1.3V/(Lux sec)
- Dynamic Range: 52dB
- Pixel Size: 3.6 um * 3.6 um
- Dark Current: 12mV/s at 60°C
- Output Format (8-bit): YUV/YCbCr 4:2:2, RGB565/555/444, GRB 4:2:2, Raw RGB Data
- Shutter Type: Rolling Shutter
- Automatic Image Control Functions: Automatic exposure control (AEC), automatic gain control(AGC), automatic white balance (AWB), automatic band filter (ABF), and automatic black-lever calibration (ABLC)
Lens
- EFL: 3.37mm
- F.NO: 2.2
- View Angle: 45 degree (diagonal)
- Distortion: <1.0%
- IR Sensitivity: Integral 650nm IR filter, visible light only
- Lens Type: Fixed focus
Module
- Overall Dimension: 21 x 12.5 x 4.6mm
- Interface: 24 pin goldenfinger
- Mating Connector: F32R-1A7H1-11024
Note:
- Please contact the seller for more information with the pinout or mating connector and camera adapter board.
- Please visit www.ArduCAM.com for more information about how to use camera modules.
Package Including
- 1 pcs OV7670 Camera Module /w Adapter Board
