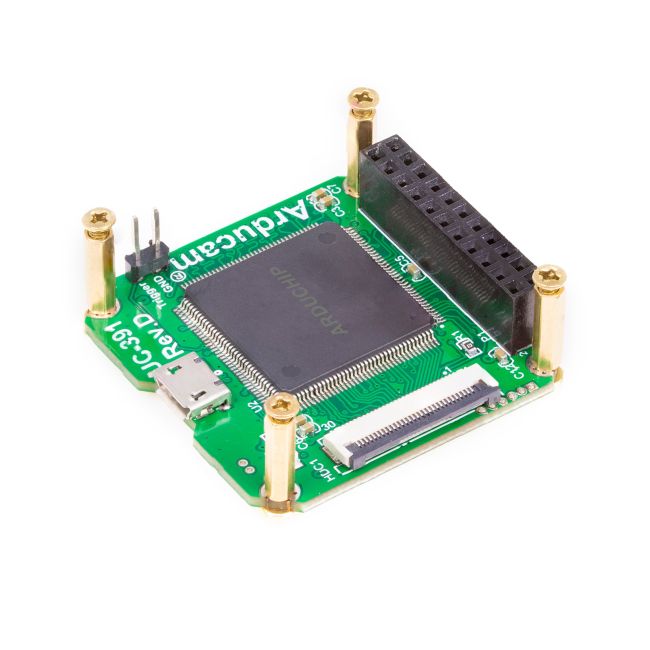

[Discontinued] Arducam USB2 Camera Shield

The second generation of Arducam USB2.0 shield is designed to replace the old one released in March 2017 while keeping the same form of factor and software compatible. The highlight of the new USB2.0 camera shield is that it has onboard 8MByte hardware frame buffer, and overcome the bandwidth and dropping frames issue when using the software frame buffer scheme. In addition, with the onboard frame buffer, it supports synchronized multiple cameras taking images exactly at the same time. Now it well supports both PC and an embedded system like Raspberry Pi, and also can provide customized support for Odroid, Beaglebone Black, Nvidia JETSON TK/TX boards.

Features

• Support any parallel image sensors
• Support 8/10/12 bit pixel color depth
• Build-in IRCUT control (optional)
• Need extra MIPI to parallel adapter board for supporting MIPI interface sensors
• Support x86, ARM 32/64bit hardware platforms
• Support Windows, Linux OS
• Fully customizable and can be ported to other hardware platform and software OS
• Provide free binary SDK library and demo software source code

Specifications

• Bandwidth:480Mbps USB2.0
• I/O Voltage Standard: 3.3V
• Connector: Micro-USB2.0
• Onboard Frame Buffer 8MBytes
• Size: 40 x 40 mm
• Weight: 20g
• Power Consumption: 5V/300mA
• Operation Temperature: -10℃～+55℃

Supported Camera Modules

Please check this page for the featured supported cameras of the Arducam USB2.0 camera shield.

Package Including

• 1 pcs Arducam USB2 Camera Shield
• 1 pcs USB2.0 micro-USB Cable

NOTE

• Camera module/breakout is not included, should order separately.
