| Sensor | OV9782 |
| Optical Size | Type 1/4'' |
| Pixel Size | 3μm×3μm |
| Shutter Type | Global Shutter |
| Color Filter Array | RGB |
| Max Sensor Resolution | 1280 x 800 |
| Resolution & Frame Rate | 1280x800@60fps, 1280x720@60fps, 640x400@120fps |
| Supported Platform | OAK-D W, OAK-D W PoE, OAK-FFC-3P, OAK-FFC-4P |
| Output | RAW8/RAW10 |
| Focus Type | Manual |
| Focus | 50cm~INF |
| Lens | f/2.0, EFL: 1.69mm, FoV: 150° (D) |
| IR Sensitivity | Built-in 650nm IR filter, sensitive to visible light only |
| Module Dimensions | 8.5mm x 14.67mm |

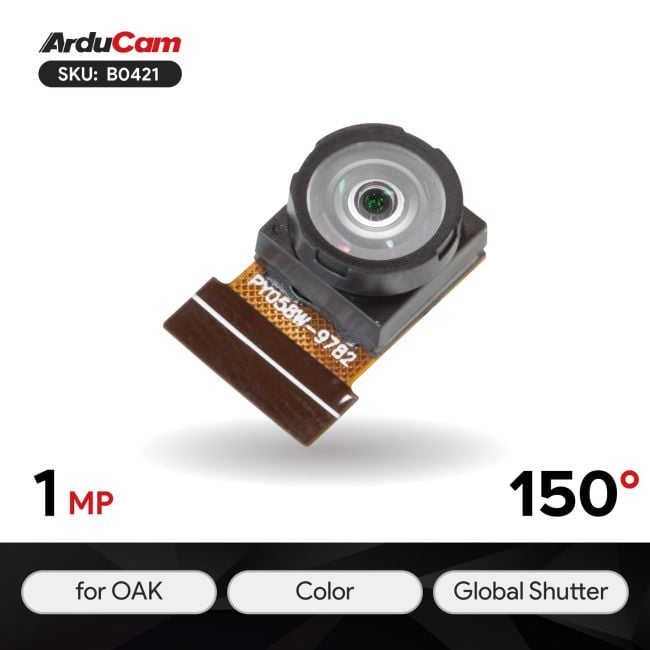

[Discontinued] OV9782 Global Shutter Color 1MP Wide Angle Camera Module for DepthAI OAK
SKU
B0421
- High Frame Rate: up to 120fps
- Wide Angle: 150° (DFoV)
- Easy to use: compatible with OAK FFC boards for evaluation
$34.99
Overview
Specifications
Wiki
Documents
Video
Customization
Product Description
OmniVision's OV9782 is a 1MP (1280x800) global shutter color image sensor. Arducam OV9782 camera module is a color camera option for OAK Series 2 Wide FOV cameras such as OAK-D W, OAK-D W PoE as the 150° DFOV color camera.
It is also compatible with OAK FFC boards (OAK-FFC-3P, OAK-FFC-4P), so you can easily evaluate its sensor and optics performance via a camera board and a flex cable.
Specification
Documentations
Packing List
- 1 x OV9782 Wide Angle Camera Module for DepthAI OAK
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
