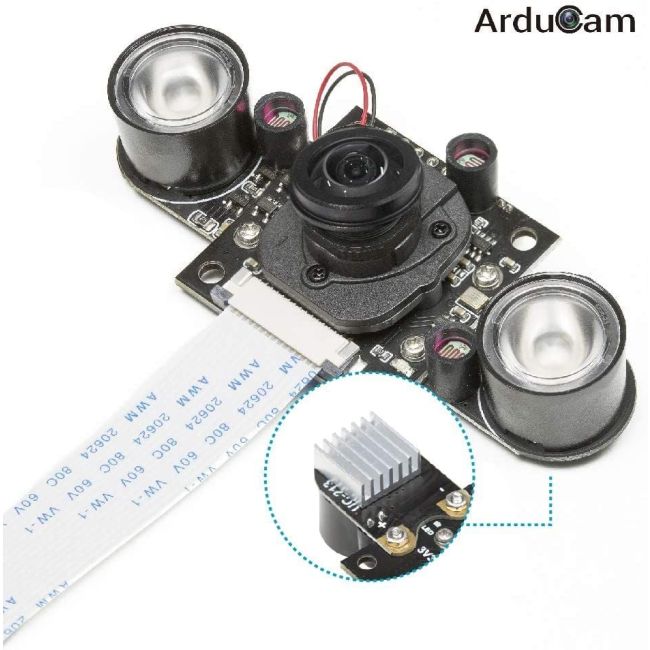

[Discontinued] Arducam 5MP OV5647 170 Degree(D) Wide Angle Motorized IR-CUT Day-Night Vision with LED and Case for Raspberry Pi
SKU
B003507
Check alternative camera B003504
- Switch daylight color accuracy and IR night vision automatically
- Low-dispersion glass that greatly reduces focus shift and chromatic aberration, focusing different wavelengths of light onto the same image plane
- Triggered by the light sensor that decides whether the light condition is poor and needs to be improved
- This camera module has 170°(D) wide-angle Lens, which provides a much wider field of view.
was
$32.99
Special Price
$24.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
Arducam for Raspberry Pi Camera Module, Night Vision Low Light Fisheye Video Camera for Raspberry Pi 4/3/3 B/3 B+/Zero&W, IR-Cut Switch Automatically.
Features
- Day&Night Image: Built-in motorized IR-CUT Filter, switched in and out automatically based on light condition (only visible light during the daylight and infrared sensitivity during the night with IR LEDs on), has a better low light performance.
- Support all Raspberry Pi Models: Support Raspberry Pi Zero & W, Pi 4 b, 3 b+, 3 b, and other A&B series.
- Sharp Image: Adopts 5MP OV5647 sensor, Max. resolution: 2592*1944, High Frame Rate: 30fps@1080P, 60fps@720P, 90fps@480p.
- Ultra Wide Angle of View: This camera module has 170°(D) wide-angle Lens, which provides a much wider field of view compared to the stock lens.
- Multiple Camera Cables: 3.3ft (1m) and 5.9in (15cm) 15pin cables for model A and B, 5.9in (15cm) 15 pin to 22 pin cable for Pi zero&w.
- Acrylic Holder: Customized designed for this IR-CUT camera board and IR LEDs, make the camera stand or be mounted somewhere you like.
Applications
- Home surveillance
- monitoring 3D printer
- wildlife photography
- NDVI in agriculture, etc.
Specifications
| Sensor | Omnivision 5647 sensor |
| Sensor size | 1/4” (OV5647) |
| Resolution | 5MP 2592×1944 |
| Video | 1080p 30 fps, 720p 60fps, 480p 90fps |
| Focal Length | 1.3mm (You can screw the lens for focusing) |
| Field of View (FOV) | 170°(D), 140°(H) |
| IR Sensitivity | Motorized IR Cut filter |
| Thread Size | M12×P0.5 |
| Power Output | 3.3V power output for IR LED |
| Dimension | 38x38 mm, 4 mounting holes |
| Peaking Current | 300mA |
Package Including
- 1× camera board with 5MP OV5467 sensor and IR corrected lens*
- 2× IR LED illuminator
- 2× heat sinks
- 1×150 mm/5.9” 15 pin cable for Model A and B
- 1×1 m/3.3' 15 pin cable for Model A and B
- 1×150 mm/5.9” 15 pin to 22 pin cable for Pi Zero models
- 1 set camera holder with screwdriver, screws, standoffs, and nuts
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
