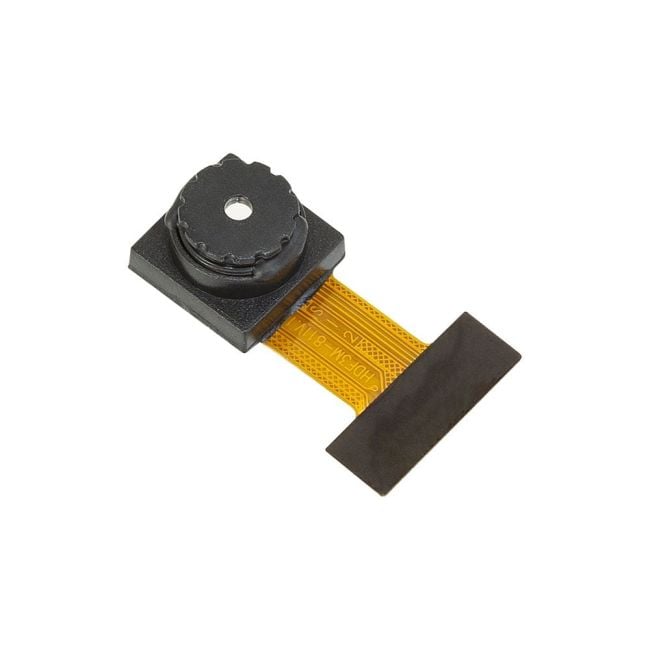

OV2640 2.0 MP Mega Pixels 1/4'' CMOS image sensor SCCB interface Camera module
SKU
U0061
Note: Discontinued, check the new version, SKU: M0031
$6.99
Overview
Specifications
Wiki
Documents
Video
Customization
Features
- High sensitivity for low-light operation
- Low operating voltage for embedded portable apps
- Standard SCCB interface
- Output support for Raw RGB, RGB (RGB565/555), GRB422, YUV (422/420) and YCbCr (4:2:2) formats
- Supports image sizes: UXGA, SXGA, SVGA, and any size scaling down from SXGA to 40x30
- VarioPixel? method for sub-sampling
- Automatic image control functions including Automatic Exposure Control (AEC), Automatic Gain Control
- (AGC), Automatic White Balance (AWB), Automatic Band Filter (ABF), and Automatic Black-Level
- Calibration (ABLC)
- Image quality controls including color saturation, gamma, sharpness (edge enhancement), lens
- correction, white pixel canceling, noise canceling, and 50/60 Hz luminance detection
- Line optical black level output capability
- Video or snapshot operation
- Zooming, panning, and windowing functions
- Internal/external frame synchronization
- Variable frame rate control
- Supports LED and flash strobe mode
- Supports scaling
- Supports compression
- Embedded microcontroller
Applications
- Cellular and Camera Phones
- Toys
- PC Multimedia
- Digital Still Cameras
Package Including
- 1 pcs OV2640 Camera module
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
