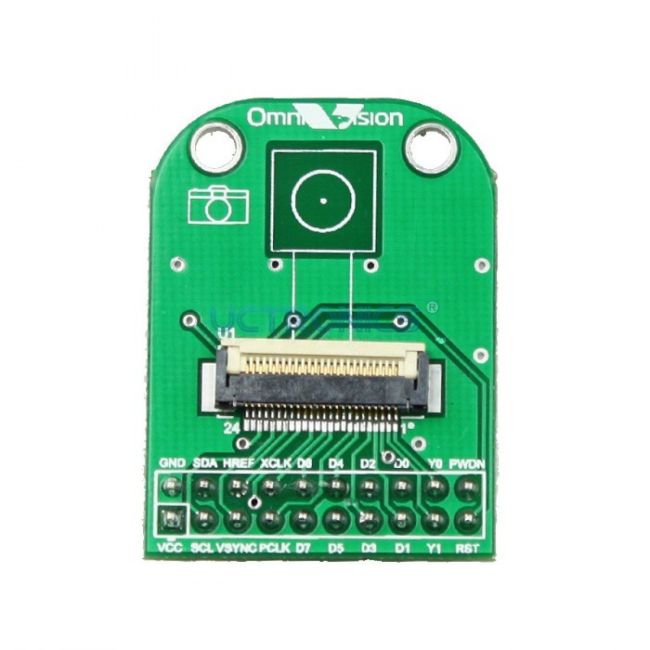

[Discontinued] Arducam CMOS Camera Adapter Board for Omnivision Image Sensor
SKU
B0012
CMOS Camera Adapter Board for Omnivision Image Sensor
$5.51
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
This adapter board can Support most OmniVision COMS Camera module.
8bit pin header style camera breakout board support
- 0.3MP : OV7670, OV7725
- 1.3MP: OV9650
- 2MP: OV2640
- 3MP: OV3640
- 5MP: OV5642
- Single power supply range:2.8V~3.3V
- 8 bit RGB/YUV/Raw camera data bus
- Pin pitch:2.54mm
- Can be used in MCUs, ARMs, CPLD, FPGA, DSP paltform
Signal Definition
- VCC: Power Supply
- GND: Power Ground
- SCL: I2C Clock
- SDA: I2C Data
- VSYNC: Vertical Sync
- HREF: Horizon Reference
- PCLK: Pixel Clock
- XCLK: Master Clock
- D0~D7: Data Bus
- Y0~Y1: LSB in YUV 10 bit mode
- Flash: Optional Flash signal
- PWDN: Power down input ard
Documentation
Package Including
- 1 pcs CMOS Camera Adapter Board for Omnivision Image Sensor
