In the era of industrial automation, Edge AI has become a core engine for enterprises aiming to elevate operational safety and efficiency. However, deploying a high-real-time, high-stability vision solution within limited hardware costs and power budgets remains a persistent challenge for many industrial leaders.
Recently, Arducam helped several world-renowned large-scale clients overcome deep-seated bottlenecks in their existing vision systems using our newly developed camera series based on the Sony IMX500 Intelligent Vision Sensor. Today, we unveil the first case study of this series: The Comprehensive Upgrade of a Forklift Pedestrian Detection and Collision Avoidance System.
1. The Manufacturer’s Bottlenecks: Three Major Pain Points of Traditional Forklift Vision Systems
As a leading global giant in the manufacturing sector, the client handles intensive warehouse logistics within their massive factory facilities. Forklift operations in these environments are complex, making reliable pedestrian detection systems (for tagless and non-PPE pedestrian tracking) a top priority for factory floor safety.
In their original safety setup, the client utilized 4 Arducam cameras for multi-angle monitoring. However, during large-scale deployment across their manufacturing facilities, the traditional hardware architecture quickly hit a technical ceiling:
- Narrow Field of View (FOV Limits): The original cameras offered insufficient visual coverage, leaving dangerous blind spots that failed to protect complex, fast-moving factory warehouse environments.
- High External Processing & Compute Costs: Traditional cameras only handled image capture. All raw video streams had to be aggregated into a high-power, high-cost external central processor (such as an industrial PC or advanced SoC). This created severe thermal and power management challenges, alongside corporate concerns regarding data privacy.
- USB Bandwidth Bottlenecks & Frame Rate Drops: Transmitting four high-resolution video streams simultaneously over a shared USB bus completely choked the bandwidth. This resulted in frequent frame drops, stuttering, and spiked inference latency—a fatal flaw in fast-paced forklift safety scenarios.
Faced with a pressing demand to retrofit hundreds of forklifts across their manufacturing plants, the client urgently needed a highly integrated, low-bandwidth, and edge-computed imaging and processing framework.
2. Breaking the Deadlock: How Arducam IMX500 Re-engineered the System
To address the client’s pain points in FOV, cost, and bandwidth, Arducam tailored an Edge AI solution built directly upon the Sony IMX500 Intelligent Vision Sensor.
On-Camera AI Inference, Liberating Backend Compute
The core breakthrough of the new architecture lies in the IMX500 sensor, which features an on-chip AI accelerator. This sensor supports direct deployment of lightweight YOLO models and executes end-to-end AI inference right inside the camera. The forklift detection system no longer needs to stream raw video to a central processor; instead, it outputs only structured metadata (such as object bounding boxes and distance alerts). This “compute-at-the-edge” design eliminates reliance on expensive external compute chips while keeping raw video on the device, ensuring data privacy across factory operations.
Eliminating USB Bandwidth Conflicts with 30fps+ Stability
Because the camera completes the bulk of the AI processing internally, transmitted data sizes drop exponentially. Combined with an industry-optimized interface pipeline, the new system entirely circumvents USB bandwidth conflicts. Even under heavy industrial workloads, the system maintains an ultra-stable output of 30fps or higher, slashing false alarms to near zero and guaranteeing real-time collision warnings.
>78° Wide-Angle Optics for Maximum Coverage
Arducam equipped this solution with specialized wide-angle optics delivering a Field of View of ≥78°, vastly expanding the coverage zone of every single camera and shrinking the forklift operator’s blind spots without requiring massive external processing.
Scalable Multi-Camera Configurations & Centralized Alert System

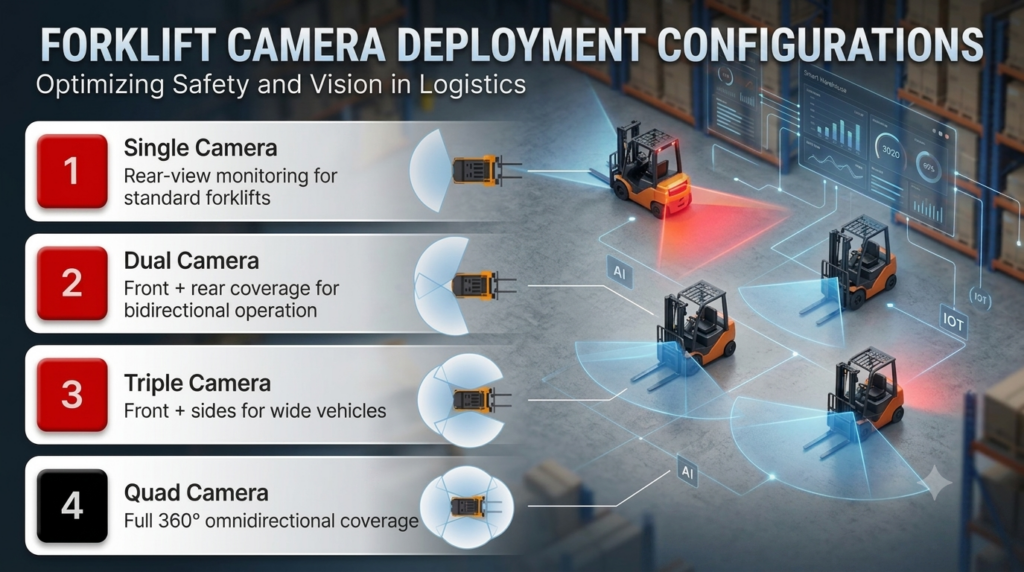

To accommodate different factory vehicle types and complete protection profiles, Arducam provides a highly flexible multi-camera deployment matrix supporting expansion from 1 to 4 camera units:
- Single Camera: Ideal for rear-view monitoring on standard forklifts.
- Dual Camera: Offers front and rear coverage tailored for bidirectional operations.
- Triple Camera: Provides front and side coverage for wider, specialized facility vehicles.
- Quad Camera: Delivers full 360° omnidirectional, zero-blind-spot coverage.
All connected cameras link directly into a Centralized Alert System, yielding crucial operational advantages:
- Unified Control: A single alert unit effortlessly manages, syncs, and schedules all connected cameras.
- Instant Response: A pedestrian or hazard detection from any camera instantly triggers an immediate alert in milliseconds.
- Directional Indication: The alert system precisely flags exactly which camera detected the hazard, allowing forklift operators to make split-second, accurate defensive maneuvers.

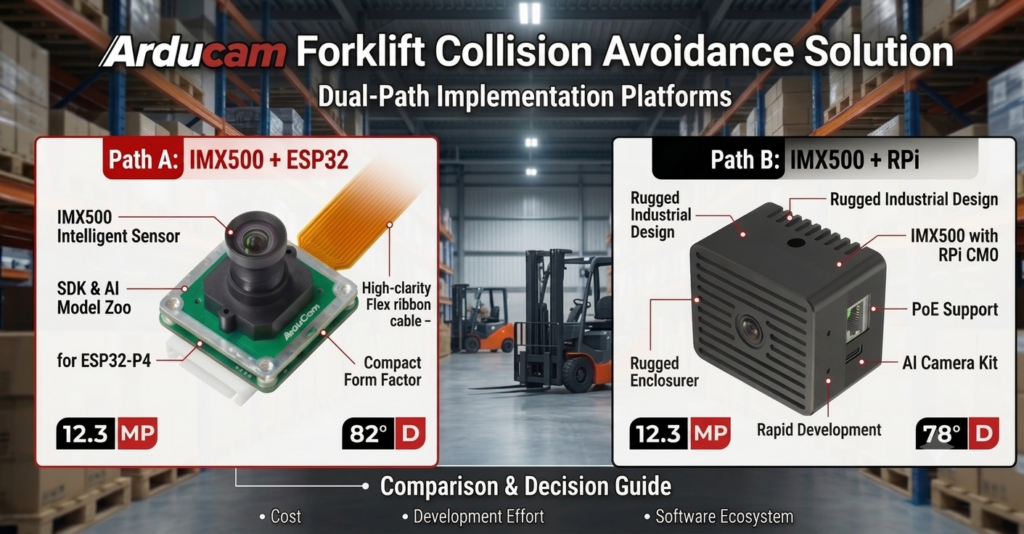

3. Product Spotlight: Dual-Path Implementation Platforms
To satisfy different development stages or budget boundaries across the client’s facilities, Arducam introduced two flexible implementation paths based on the IMX500 sensor. Both options inherently support 1–4 camera expansions:
🌟 Path A: Arducam IMX500 AI Camera Module for ESP32 & MCUs (SKU: B0642)
This cost-optimized architecture is designed to bring hardware-accelerated machine vision to microcontrollers, bridging the gap between ultra-low-power systems and advanced AI.
- System Components & Interfacing: Features the Sony IMX500 intelligent vision sensor alongside a main controller (such as the ESP32-P4 or alternative MCU SoCs). It utilizes a high-speed SPI Interface for rapid sensor-to-host communication and supports AHD Output for low-latency video transmission directly to car displays.
- Core Advantages:
- Lower Hardware Cost: Highly economical for massive hardware deployments across vast vehicle fleets.
- Compact Form Factor: Minimal footprint, allowing for seamless integration and low visual obstruction on heavy industrial equipment.
- Power-Efficient Design: Consumes minimal wattage, placing near-zero strain on the forklift’s electrical or battery system.
- Proven Microcontroller Ecosystem: Leverages the widespread accessibility and stability of the ESP32 architecture.
- Considerations: Requires a higher upfront development effort for custom bare-metal or RTOS firmware implementation compared to Linux platforms.
🌟 Path B: All-in-One Raspberry Pi AI Camera Kit with CM0 Inside (SKU: B0606)
This development-friendly “qb” (Cubic) series kit packages everything into an out-of-the-box, all-in-one industrial platform powered by the Raspberry Pi ecosystem.
- System Components & Interfacing: Combines the Sony IMX500 sensor with an integrated Raspberry Pi Compute Module 0 (CM0). It drives a high-bandwidth MIPI Interface video pipeline and comes fully equipped with flexible power options, supporting PoE (Power over Ethernet) and USB Power.
- Core Advantages:
- Rapid Development & Deployment: Massively shortens the time-to-market with an out-of-the-box edge Linux environment.
- Rich Software Support: Fully compatible with standard Raspberry Pi camera frameworks, featuring native support for
libcameraandPicamera2. - Extensive Resources: Backed by massive community tools, making it easy to layer on additional enterprise applications.
- Compact All-In-One “qb” Enclosure: Comes pre-housed in a versatile, rugged cubic layout for clean mounting.
- Considerations: Carries a slightly higher initial hardware component cost compared to microcontrollers, which is easily offset by the reduced software engineering timeline.
💡 Architecture Decision Framework: Choose SKU B0642 (ESP32) for budget-conscious, high-volume production deployments where power efficiency is critical. Choose SKU B0606 (RPi CM0) for projects requiring accelerated development, rich software compatibility, and versatile power input (PoE/USB).
