Arducam 2MP Global Shutter OV2311 Monochrome Camera Modules for Raspberry Pi
SKU
B0204
Note: B0204 is no longer available, you can check the new version(Check Visible Light Version B0218 or IR Sensitive M12 Version B0219
More: USB 3.0 quick development and evaluation board for sensors like OV2311.
$99.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview

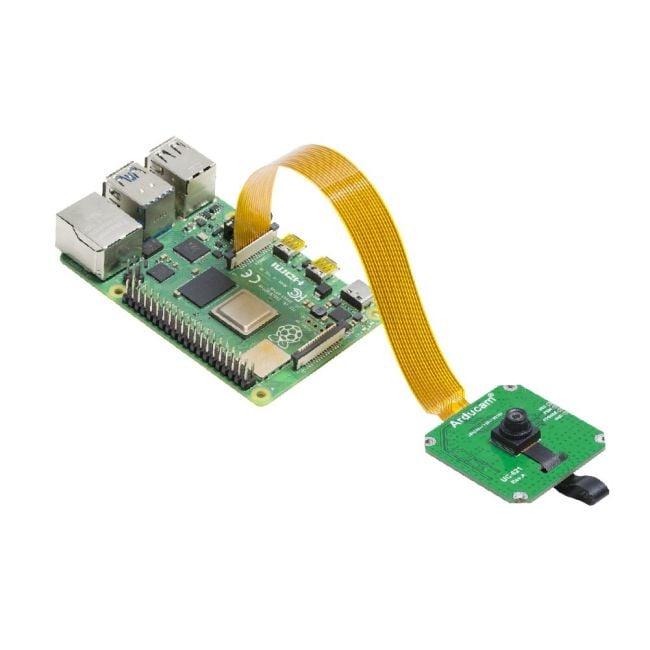

Arducam 2MP Global shutter OV2311 camera module is mainly designed for Raspberry pi boards, and it can be connected directly to RPi’s CSI-2 camera interface without additional hardware. This camera is based on 1/2.9-inch Omnivision OV2311 image sensor which adopts OmniPixel3-GS™ technology to provide full-frame, sub-sampled, and windowed 8/10-bit MIPI images, and capable of operating at up to 60fps in full resolution at 2-lane MIPI bus with complete user control over image quality.
Due to the sensor's high resolution, the OV2311 offers exceptionally accurate gaze- and eye-tracking capabilities. The OV2311 achieves high near-infrared quantum efficiency to minimize active illumination power and reduce the system power requirements.
Features
- Sensor: Global Shutter OV2311 Monochrome
- Pixel size: 3 µm x 3 µm
- Active array size: 1600 x 1300
- Optical Format size: 1/2.9"
- Maximum image transfer rate: 1600 x 1300: 60 fps
- Support for image sizes: 1600 x 1300, 1280 x 720, 640 x 480
- Lens Thread: M6 x 0.25P
- Lens Field of View(FoV): 100°(H)
- Output interface: 2-lane MIPI
- Output formats: RAW 8/10 bit
- Input clock frequency: 6~27 MHz
- Max S/N ratio: 37.4 dB
- Dynamic range: 68 dB
- Power supply: analog: 2.8V (nominal) core: 1.2V (nominal) I/O: 1.8V (nominal)
- Power requirements: active: 190 mW XSHUTDOWN: <25 µA
- Temperature range: operating: -30°C to 85°C stable image: 0°C to 50°C
Applications
- Augmented and virtual reality
- Drones
- 3D imaging
- Machine vision
- Industrial bar code scanning
- Industrial automation
Package Including
- 1 pcs Arducam 2MP Global Shutter OV2311 Color Camera Module for Raspberry Pi
- 1pcs Arducam 80mm 22pin Ribbon FPC flat Wire Cable
- 1pcs Arducam 150mm 15pin to 22pin Ribbon FPC flat Wire Cable
Documentation
Arducam (Userland Driver) MIPI Camera Modules
MIPI camera module is now widely used on the smart phone, tablets and other mobile devices, which is compliant to MIPI CSI-2 specification. It offers higher performance in terms of resolution and frame rate than the older parallel interface camera module also called DVP (digital video port) interface. Now Arducam provides MIPI camera module solutions […]
