[Discontinued] Arducam IMX219 Low Distortion IR Sensitive (NoIR) M12 Mount Camera Module for NVIDIA Jetson Board
SKU
B0187
was
$39.99
Special Price
$23.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview

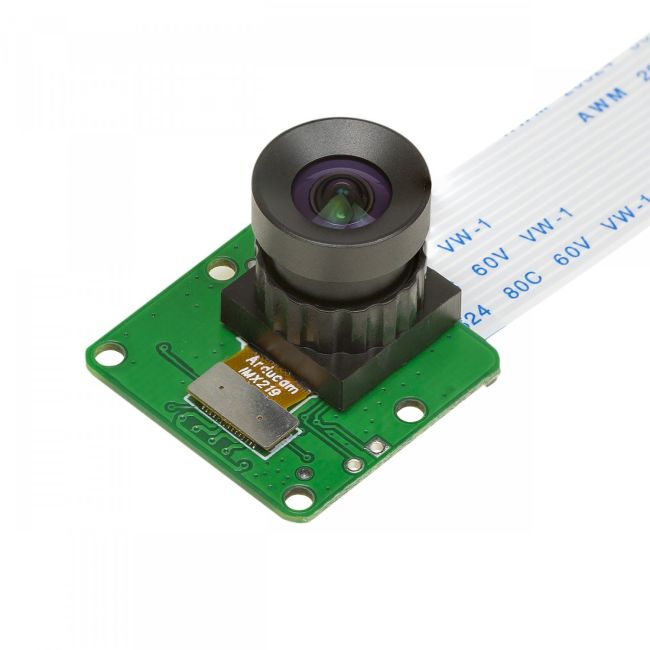

This Arducam IMX219 camera module is mainly designed for NVIDIA® Jetson Board and also can be used on compute module
and other hardware like ARM, DSP, FPGA, etc.
The highlight of this camera is its low distortion (<3%) of view.
The lens on this camera is not interchangeable, if you need to replace the lens, please contact sales in advance!
★KERNEL CAMERA DRIVER USED
This camera relies on kernel drivers to work – one kernel version, one camera driver. Please refer to the Supported JetPack Version for Different NVIDIA Jetson Platforms to ensure compatibility.
★ SUPPORTED PLATFORM DISCLAIMER
This camera is specifically designed for the official NVIDIA® Jetson™ Developer Kit by default and does not support third-party carrier boards.
Specifications
Camera
| Image Sensor | IMX219 |
| Still Resolution | 8 Megapixels |
| Video Modes | NVIDIA Jetson Orin NX/Orin Nano/AGX Orin: 3280x2464@21fps, 3280x1848@28fps, 1920x1080@30fps, 1640x1232@30fps, 1280x720@60fps |
| Sensor Resolution | 3280 × 2464 pixels |
| Sensor image area | 3.68 x 2.76 mm (4.6 mm diagonal) |
| Pixel Size | 1.12 µm x 1.12 µm |
| Optical Size | 1/4" |
| IR Sensitivity | without IR-cut filter, sensitive to IR light |
Lens
| Focus Type | Manual Focus |
|---|---|
| Focal Length | 2.8mm |
| F.NO | F2.8 |
| Field of View(FOV) | 75°(H) |
| Lens Mount | M12 Mount |
| Distortion | <3% |
Electrical & Mechanical
| Camera Board Size | 24mm x 25mm |
|---|---|
| Peaking Current | 300mA |
Applications
- Unmanned Aerial Vehicles (UAVs)
- Building Drones
- Autonomous Robotic Systems
- Mobile Medical Imaging
- Intelligent Video Analytics (IVA)
Package Including
- 1pcs Arducam IMX219 Low Distortion IR Sensitive (NoIR) Camera Module
- 1pcs 15cm 15-15pin FPC cable
- 1pcs 15cm 15-22pin FPC cable
Documentation
Datasheet.pdf |
Blog
Arducam Introduces 8MP IMX219 Auto Focus, Wide Angle, Zero-Distortion and Spy Camera to the NVidia Jetson Nano
NVIDIA JETSON NANO AND ITS CAMERAS The Jetson Nano is a powerful single-board computer from NVidia. Featuring the extraordinary GPU performance, this NVidia development board is widely used in image processing applications like motion-tracking, face recognition and home surveillance camera systems, and a smart camera is a key to realizing all of them. However, currently, […]
Video
How to purchase
You can purchase this item from Arducam distributors
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
