Arducam 5MP OV5647 Mini Camera Module for Raspberry Pi Model A/B/B+, Pi 2, Pi 3, Pi 4, Pi 5 and Pi ZERO
SKU
B0033+B0087

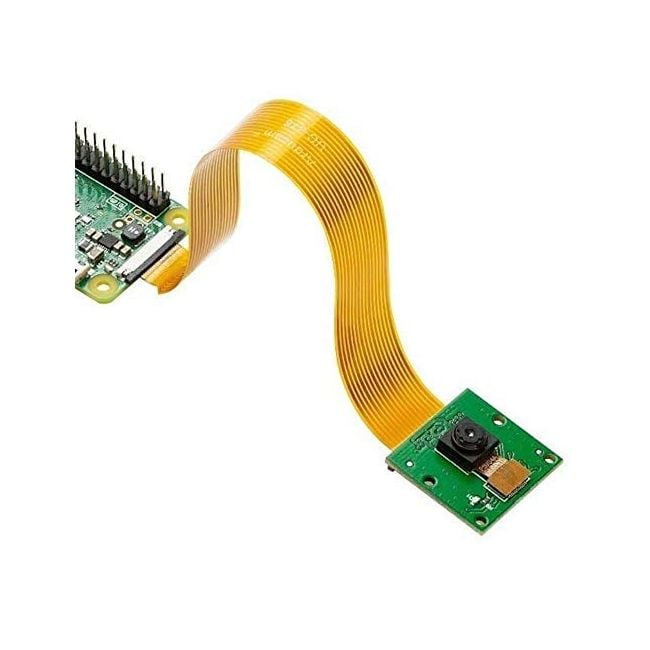

- Attached with a 12-22pin flexible cable for connecting with Raspberry Pi zero
- The maximum frame rate achievable on pizero is 30fps
- It can achieve 1080p30, 720p60 and 640x480p60/90 video on other platforms such as raspberry pi3/4.
was
$16.99
Special Price
$8.49
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
The Arducam team now released another add-on mini camera module for Raspberry Pi series boards which is fully compatible with official one.
The board itself is tiny, at around 25mm x 24mm, which makes it perfect for mobile or other applications where size and image quality are important.
It connects to Raspberry Pi by way of a short ribbon cable.
The camera is connected to the BCM2835/BCM2836 processor on the Pi via the CSI bus, which travels along the ribbon cable that attaches the camera board to the Pi.
It attaches to Raspberry Pi by way of one of the two small sockets on the board upper surface.
This interface uses the dedicated CSI interface, which was designed especially for interfacing to cameras.
Applications
- Cellular phones, PDAs, Toys
- Other battery-powered products
- PC multimedia
- Can be used in all Raspberry Pi platforms
- Digital still cameras,etc.
Specifications
| Sensor | Omnivision OV5647 sensor |
| Sensor size | 1/4” (OV5647) |
| Resolution | 5MP 2592×1944 |
| Max Frame Rate | 30fps |
| Field of View (FOV) | 54°(H), 41°(V) |
| Focus Type | Fixed Focus |
| Focus Length | 3.60mm |
| Focus Distance | 1 m to infinity |
| Full-frame SLR lens equivalent | 35 mm |
| Dimension | 25×24 mm |
| Peak Current | 300mA |
Package Including
- 1pcs 5MP Mini Camera OV5647 Sensor 1080p 720p video for Raspberry Pi Official Board
- 1pcs 15cm 15pin FPC cable
- 1pcs 15cm 15pin to 22pin 0.5mm pitch FPC cable
Note
- Raspberry Pi Development Board is not included in the package
| Note for Supported Raspberry Pi Boards and OS | |||
|---|---|---|---|
| Platform | Bookworm(rpicam) | Bullseye(libcamera) | Buster(raspistill) |
| Raspberry Pi 5 | √ | ||
| Raspberry Pi 4B / 3B+ / 3A+ / Zero / Zero 2 W | √ | √ | √ |
| Raspberry Pi CM3 / CM3+ / CM4 / CM5 (extra carrier board required) |
√ | √ | √ |
Documentation
5MP OV5647 Standard Camera Modules
Introduction 5MP OV5647 cameras, namely the V1 camera series, are used a lot on Raspberry Pi camera applications. Unlike the V2 cameras which are encrypted on the camera board with a chip, the 5MP OV5647 cameras can be easily modified and customized by third-party manufacturers, thus you will see a lot of variations of this […]
Selection Guide
| SKU | Product | Resolution | Color | Shutter | Camera board | Mount | IR sensitivity | Focus |
|---|---|---|---|---|---|---|---|---|
| B0161 | 0.3MP Monochrome Global Shutter | 0.3MP | B/W | Global shutter | 40mm | Stock | Visible light | Fixed Focus |
| B0162 | 1MP Monochrome Global Shutter | 1MP | B/W | Global shutter | 40mm | Stock | Visible light | Fixed Focus |
| B0165 | 1MP Monochrome Global Shutter M12 Mount | 1MP | B/W | Global shutter | 40mm | M12 | Visible light | Adjustable |
| B0031 | 5MP M12 | 5MP | RGB | rolling shutter | 36mm | M12 | Visible light | Adjustable |
| B0032 | 5MP CS Mount | 5MP | RGB | rolling shutter | 36mm | CS | Visible light | Adjustable |
| B0033 | 5MP | 5MP | RGB | rolling shutter | 24mm | Stock | Visible light | Fixed Focus |
| B0033+B0087 | 5MP with Pi Zero Cable | 5MP | RGB | rolling shutter | 24mm | Stock | Visible light | Fixed Focus |
| B003301 | 5MP NoIR | 5MP | RGB | rolling shutter | 24mm | Stock | IR sensitive | Fixed Focus |
| B0033C | 5MP with case | 5MP | RGB | rolling shutter | 24mm | Stock | Visible light | Fixed Focus |
| B0033R | 5MP with long Ribbon Cable | 5MP | RGB | rolling shutter | 24mm | Stock | Visible light | Fixed Focus |
| B0035 | 5MP M12 NOIR | 5MP | RGB | rolling shutter | 36mm | M12 | IR sensitive | Adjustable |
| B003503 | 5MP Switchable IR-cut with LED | 5MP | RGB | rolling shutter | 36mm | M12 | Switchable IR filter | Adjustable |
| B0036 | 5MP CS Mount CS NOIR | 5MP | RGB | rolling shutter | 36mm | CS | IR sensitive | Adjustable |
| B0055 | 5MP M12 Fisheye | 5MP | RGB | rolling shutter | 36mm | M12 | Visible light | Adjustable |
| B0066 | 5MP Cam | 5MP | RGB | rolling shutter | spy cam | Stock | Visible light | Fixed Focus |
| B006602 | 5MP NOIR | 5MP | RGB | rolling shutter | spy cam | Stock | IR sensitive | Fixed Focus |
| B006603 | 5MP Pi zero spy cam 60 | 5MP | RGB | rolling shutter | spy cam Zero | Stock | Visible light | Fixed Focus |
| B006604 | 5MP Pi zero spy cam 120 | 5MP | RGB | rolling shutter | spy cam Zero | Stock | Visible light | Fixed Focus |
| B006605 | 5MP Pi zero spy cam 160 | 5MP | RGB | rolling shutter | spy cam Zero | Stock | Visible light | Fixed Focus |
| B0121 | 5MP AutoFocus | 5MP | RGB | rolling shutter | 40mm | Stock | Visible light | Programmable |
| B0151 | 5MP Switchable IR-cut | 5MP | RGB | rolling shutter | 36mm | M12 | Switchable IR filter | Adjustable |
| B01675MP | 5MP PTZ | 5MP | RGB | rolling shutter | 36mm | F14 | Switchable IR filter | Varifocal |
| B0176 | 5MP AutoFocus mini | 5MP | RGB | rolling shutter | 24mm | Stock | Visible light | Programmable |
| B0102 | 8MP CS | 8MP | RGB | rolling shutter | 36mm | CS | Visible light | Adjustable |
| B0103 | 8MP M12 | 8MP | RGB | rolling shutter | 36mm | M12 | Visible light | Adjustable |
| B0122 | 8MP AutoFocus | 8MP | RGB | rolling shutter | 40mm | Stock | Visible light | Programmable |
| B0152 | 8MP M12 NOIR | 8MP | RGB | rolling shutter | 36mm | M12 | IR sensitive | Adjustable |
| B0153 | 8MP CS NoIR | 8MP | RGB | rolling shutter | 36mm | CS | IR sensitive | Adjustable |
| B0154 | 8MP M12 Switchable IR-cut | 8MP | RGB | rolling shutter | 36mm | M12 | Switchable IR filter | Adjustable |
| B01678MP | 8MP PTZ | 8MP | RGB | rolling shutter | 36mm | F14 | Switchable IR filter | Varifocal |
| B0180 | 8MP IMX219 replacement M12 170 Wide Angle | 8MP | RGB | rolling shutter | Sensor Module | M12 | Visible light | Adjustable |
| B0182 | 8MP IMX219 replacement Autofocus | 8MP | RGB | rolling shutter | Sensor Module | Stock | Visible light | Programmable |
| B0184 | 8MP IMX219 replacement M12 Low Distortion | 8MP | RGB | rolling shutter | Sensor Module | M12 | Visible light | Adjustable |
| B0188 | 8MP IMX219 replacement M12 Low Distortion NoIR | 8MP | RGB | rolling shutter | Sensor Module | M12 | IR sensitive | Adjustable |
| B0190 | 8MP IMX219 replacement Autofocus NoIR | 8MP | RGB | rolling shutter | Sensor Module | Stock | IR sensitive | Programmable |
| B1094 | 8MP IMX219 replacement M12 170 Wide Angle NoIR | 8MP | RGB | rolling shutter | Sensor Module | M12 | IR sensitive | Adjustable |
| B0163 | 13MP MIPI Camera | 13MP | RGB | rolling shutter | 40mm | Stock | Visible light | Fixed Focus |
| B0174 | 16MP MIPI Camera | 16MP | RGB | rolling shutter | 40mm | Stock | Visible light | Fixed Focus |
| B0164 | 18MP MIPI Camera | 18MP | RGB | rolling shutter | 40mm | M12 | Visible light | Adjustable |
How to purchase
You can purchase this item from Arducam distributors
