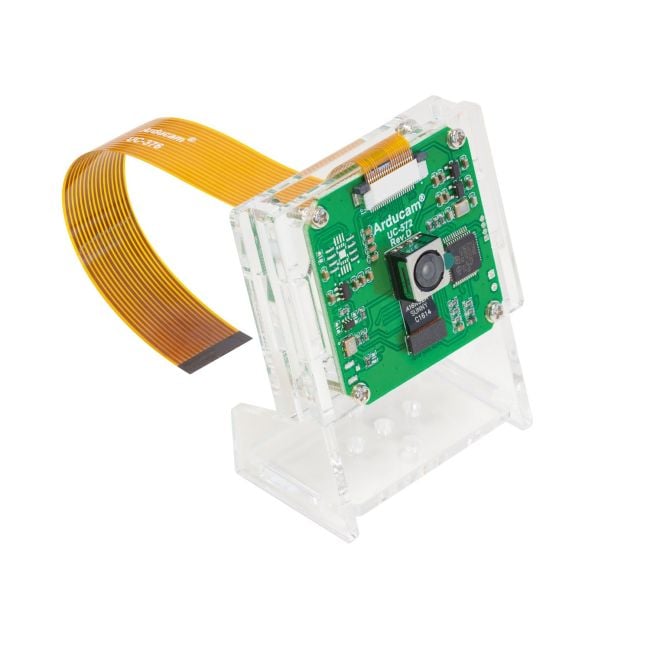

[Discontinued] Arducam Pivariety 16MP IMX298 Color Camera Module for RPi 4B, 3B+, 3A+, CM3/CM4 and Jetson Nano/Xavier NX
SKU
B0323
Discontinued, check alternative item B0371
- High Resolution: 16MP Sony IMX298 Exmor RS™ color sensor, up to 4640×3472.
- ISP Support: Auto Exposure, Auto White Balance.
- Gstreamer support.
- Autofocus: Motor Driver. Programmable focus control.
- Wide Compatibility: Compatible with all libcamera-based apps maintained by the RPi foundation.
$59.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
Arducam Pivariety is a Raspberry Pi camera solution to take the advantage of using its hardware ISP functions. Using Arducam Pivariety camera modules, users can get better performance and a wider variety of camera, and lens options. For a long time, Raspberry Pi users are limited to using the closed-source official supported camera driver and camera modules (V1/V2/HQ). Now Arducam made it possible to provide well-tuned ISP for Pivariety camera modules with Auto Exposure, Auto White Balance, Lens Shading Correction, etc.
Applications
- UAV/Drones/FPV camera
- Machine Vision
- Robotics
- IoT
- Face Recognition
- Defect Detection, etc.
Specifications
| Sensor Type | Sony 16MP IMX298 |
| Pixel Size | 1.12um x 1.12um |
| Active Pixels | 4656(H)x3496(V) |
| Sensor Output Format | RAW10 |
| ISP Output Format | JPG, YUV420, RAW, DNG; MJPEG, H.264 |
| Interface Type | 2-lane MIPI CSI-2 |
| Frame Rates | 4640×3472@10 fps, 2320×1732@20 fps, 3264×2464@15 fps, 3840×2160@15 fps, 2592×1944@20 fps, 1920×1080@30 fps, 1280×800@45 fps, 1280×720@50 fps |
| Focal Length | 4.04mm |
| F.NO | 2.0±5% |
| FOV | 62°(H) |
| Focus Type | Motorized focus, programmable focus control |
| IR Sensitivity | Integral IR filter, visible light only |
| Board Size | 40mm x 40mm |
Package Including
- 1 x Arducam 16MP IMX298 ISP Camera Module
- 1 x 150mm 15pin 1.0mm to 22pin 0.5mm pitch FPC cable
- 1 x acrylic case kit with assembly accessories
Note
- Raspberry Pi and Nvidia Jetson board is not included in the package
- The camera needs driver to be used, please refer to the following documentations to install corresponding driver for this camera
Documentation
Pivariety IMX298 16MP Motorized Focus Camera Module
1. Introduction Arducam Pivariety is a Raspberry Pi camera solution to take the advantage of using its hardware ISP functions. Using Arducam Pivariety camera modules, users can get better performance and a wider variety of camera, lens options. For a long time, Raspberry Pi users are limited to use the closed-source official supported camera driver […]
Install and build Raspberry Pi Kernel Driver for Arducam Pivariety Camera
In order to ensure the normal working of the hardware, the driver needs to operate according to standard procedures. These operations are cumbersome. Generally, only the hardware manufacturer understands the specific details. One of the main tasks of the driver is to ensure that the hardware works as expected according to the standard procedure and […]
4. How To Access Arducam Jetvariety Autofocus Camera Module
1. IMX298 16MP Autofocus Camera Driver Installation Detect the Camera Check the Formats and Resolution Supported Run the Camera 1.Download the Python Package 2. Download the library 3. Start Running Adjust Focus Manually Adjust Focus Autofocus 2. IMX230 21MP Autofocus Camera Driver Installation Detect the Camera Check the Formats and Resolution Supported Run the Camera […]
3D drawing.step |
User guide.pdf |
Acrylic Bracket Assembly Guide.pdf |
|
Assembly Guide.pdf |
Datasheet
- Please contact us for the image sensor datasheet.
