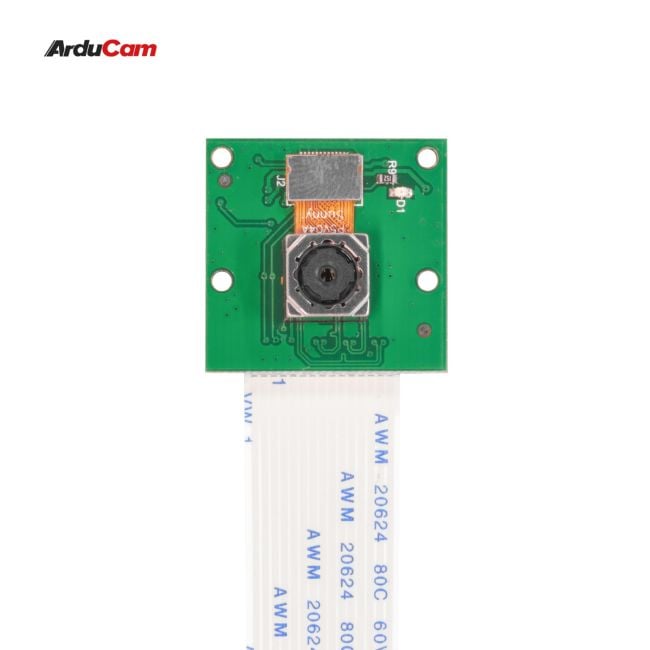

main product photo
Loading...
[Discontinued] Arducam 5MP 1080p Pan Tilt Zoom PTZ Camera with Base for Raspberry Pi 4/3B+/3

[Discontinued] Arducam 5MP 1080p Pan Tilt Zoom PTZ Camera with Base for Raspberry Pi 4/3B+/3

Arducam 5MP OV5647 Miniature Camera with Flex Cable for Raspberry Pi Zero and Compute Module (NoIR)

Arducam 5MP OV5647 Miniature Camera with Flex Cable for Raspberry Pi Zero and Compute Module (NoIR)

Arducam 5MP OV5647 Autofocus Camera for Monitoring 3D Printer, 3.28FT/100CM Long Extension Flex Ribbon Cable for Raspberry Pi

SKU
B0176R
  • Convenience: Native to Raspberry Pi 5/4/3B+/3 and more
  • Motorized Focus: See closer and easier than the fixed focus lens, which is better to monitor the 3D printer nozzle and make you pay close attention to your creation
  • Long Extension: 100cm/3.28ft extension cable included, especially useful when you don’t want to place the camera near the Raspberry Pi
$19.99
Add to Wish List
Overview
Specifications
Wiki
Documents
Video
Customization

Overview

Most 3D models take more than a few hours to print, so you may wish to leave the 3D printer at some point in the printing process. Using an Arducam camera to monitor 3D printing can make you pay close attention to your creation. Since most cameras are not made specifically for the use of 3D printing software, it is impossible to obtain proper support from the manufacturer. Fortunately, Arducam can help you solve all installation and setup problems.

Applications

  • IoT cameras
  • Monitoring 3D Printer
  • Robot cameras
  • Wildlife cameras
  • Other battery-powered products
  • Can be used in MCU, Raspberry Pi, ARM, DSP, FPGA platforms

    Specifications

    Sensor Omnivision OV5647 sensor
    Sensor size 1/4” (OV5647)
    Resolution 5MP 2592×1944
    Video 1080p 30 fps, 720p 60fps, 480p 90fps
    Field of View (FOV) 54°(H), 44°(V)
    Focus Type Motorized Focus
    Focus Distance 2'' to infinity
    IR Sensitivity Integral IR filter, visible light only
    Full-frame SLR lens equivalent 35 mm
    Dimension 25mm×24 mm
    Peak Current 300mA

    Package Including

    • 1×5MP OV5647 camera board with motorized lens for Raspberry Pi
    • 1 set acrylic case for the camera module
    • 1×5.9"(15cm) flex ribbon cable for Raspberry Pi Model A&B series
    • 1×5.9"(15cm) flex ribbon cable for Raspberry Pi Zero
    • 1×39.4"(100cm) flex ribbon cable for Raspberry Pi Model A&B series
    • 3×Manuals

    Note

    • Raspberry Pi Board is not included in the package
    • The camera's autofocus function needs to be operated by using python scripts, etc. Please see the following documentation for detail
    • Contact [email protected] for customization and [email protected] for support
      • Note on Supported Raspberry Pi Boards and OS
      Platform Trixie(rpicam) Bookworm(rpicam) Bullseye(libcamera) Buster(raspistill)
      Raspberry Pi 5 √ √
      Raspberry Pi 4B / 3B+ / 3A+ / Zero / Zero 2 W √ √ √ √
      Raspberry Pi CM3 / CM3+ / CM4/CM5
      (extra carrier board required)      		 √ √ √ √

    Documentation

    arducam-doc-logo-150-150

    Manual

    Customization

    About Arducam's Customization Services:

    If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.

    What can Arducam customize?

    Sensor/Lens/circuit/interface;
    Optical filter/housing/ISP, and more.
    For more information about Arducam's custom design, please refer to: Arducam Custom Design
