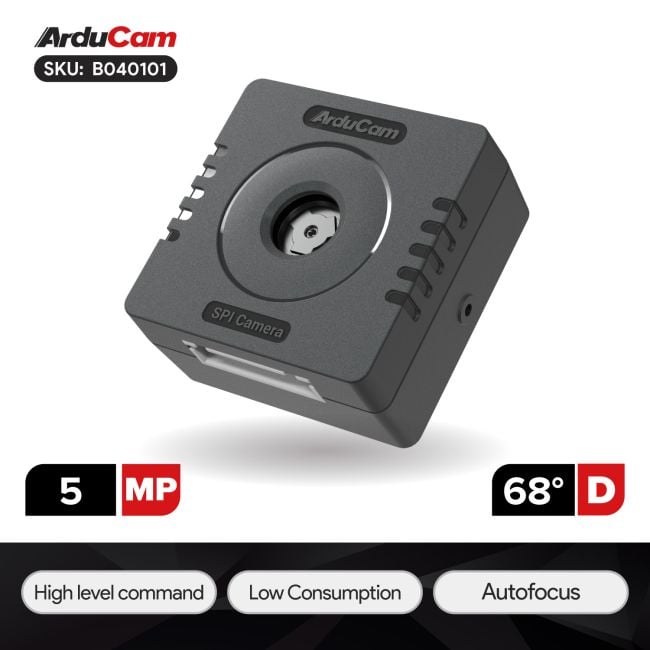

Arducam New 5MP Mega SPI Autofocus Camera Module for Any MCU
SKU
B040101
- Super Easy Using: High-level commands built-in, easy as a DSLR
- Quick Response & Power Saving: 94ms wake-up and consumption low as under 100mW
- Sharp Image: 5MP Resolution with Autofucs Lens which can capture clearer and shaper images
- Wide Compatibility: Compatible with any Microcontroller with a single standard SPI interface
- Check Mega SPI 5MP M12 Lens version here: B043601.
$34.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
Arducam New Mega 5MP SPI camera is the latest product developed by Arducam Team. The Ultra High Stability&Accuracy and Open Source API and SDK of this camera module can realize your project more effectively. The camera is featured Low Power Consumption and Super Sharp Image. For this Mega 5MP SPI Camera module, we equip the camera with a 68.75-degree(DFOV) Autofocus Lens for more realistic image output and clarity imaging. What’s more, if off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
Applications
- loT Automation
- Assets Monitoring
- Space Journey
- Environmental Observation
- Dynamics Capture
Features
- Easy Using: Extremely easy to use. High-level commands were built in so you manipulate the camera through API access like using a DSLR camera via button clicks.
- Programmable Autofocus: Equiped with an Autofocus Lens which can achieve autofocus at different distances. Suitable for the IoT activities.
- Open Source SDK: The SDK is fully open-source with MIT license. A lean architecture with a hardware abstraction layer, enabling you to add a new MCU without effort.
- One Fits All: It fits any microcontroller with a single standard SPI interface (either native or mimic). 8-bit, 16-bit, or 32-bit, ARM, RISC-V, or others. Arduino, STM8/STM32, ESP8266/ESP32, MSP430, Nordic, Renesas, Raspberry Pi Pico and countless more.
- Ultra-Low Power Profile: Consumes only 90mW at idle and 550mW under active workload, perfect for power-constrained IoT environments.
Specifications
| Camera | |
| Collection | Arducam Mega SPI Camera |
| Resolution | 5 Megapixels |
| Chroma | Color |
| Shutter Type | Rolling Shutter |
| Optical Format | 1/4" |
| Output Format | RGB/YUV/JPEG |
| Pixel Size | 1.4µm x 1.4µm |
| Sensor Active Area | 2592(H)×1944(V) |
| Sensor Image Area | 3.65 mm x 2.74 mm (4.567 mm diagonal) |
| Resolution List (JPEG) | 2592x1944, 2048x1536, 1920x1080; 1600x1200, 1280x1024, 1024x768; 800x600, 640x480, 352x288; 320x240, 176x144, 160x120; 128x128, 96x96; |
| Lens | |
| Focus Type | Autofocus |
| FOV(DxHxV) | 68.75°(D)x50°(H)x37.5°(V) |
| Lens Mount | Stock Lens Mount |
| F.NO | F2.0 |
| E.F.L | 3.3mm |
| IR Sensitivity | Integral 650nm IR Filter, visible light only |
| Default Focus Distance | 10cm~INF |
| Functionality and Compatibility | |
| Interface | SPI |
| Supported Platforms | Arduino, ESP32, Raspberry Pi Pico, etc.. |
| SDK Support | Support |
| SPI Speed | Max 8MHz |
| Frame Buffer | 8MByte |
| Camera Controls | Saturation, Brightness, Contrast, Ev, White Balance, Special Effects, Exposure Time Adjustment, Gain, Image Quality, Rotation, Framerate Control; |
| Electrical and Mechanical | |
| Operating Voltage | 3.3V/5V |
| Electric Current (Idle/Working) | 40mA~160mA |
| Power Consumption (Idle/Working) | 90mW~550mW |
| Camera Board Size | 30x30mm |
| Camera Overall Weight (Net) | 17g |
| Overall Size | 33x33x17 mm |
| Standard and Certifications | |
| Temperature range (Storage) | -4°F-167°F (-20°C to +75°C) |
| Temperature range (Operating) | 32°F-122°F (0°C to +50°C) |
| Certification | RoHS, CE |
Package Including
- 1 x Arducam New-Gen 5MP Mega SPI Autofocus Camera module for MCU
- 1 x 300mm 6pin Dupont cable
Notes
- The package contains small contents, please keep it away from children to avoid accidental ingestion.
- After receiving the package, please confirm whether the contents of the package are consistent with the description.
- No MCU board (Arduino, STM8/STM32, ESP8266/ESP32, Rpi Pico, etc) is included in the package.
- When outputting JPEG images, the camera supports a maximum resolution of 2592x1944. In YUV/RAW format, the maximum output resolution is 1920x1080.
- Arducam Mega Camera can be used on any Microcontroller board, but note that you will need the corresponding code and software to use it, please refer to the following documentation for details.
Documentation
- Arducam Mega SPI Camera
- Quick Start for Mega Camera
- Mega SPI Camera Application Note
- Troubleshooting
Video
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
