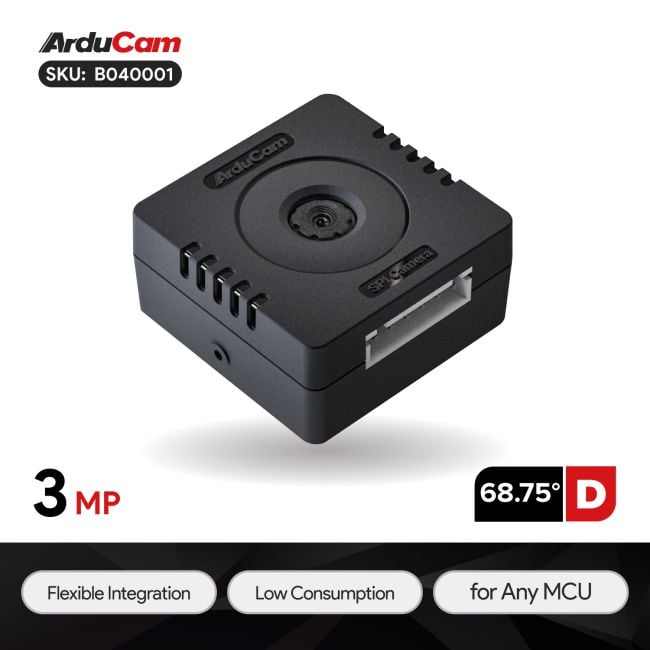

Arducam New 3MP Mega SPI Camera Module for Any Microcontroller
SKU
B040001
- Super Easy Using: High-level commands built-in, easy as a DSLR
- Quick Response & Power Saving: 42ms wake-up and consumption low as under 100mW
- Tiny Size: Ultra tiny size which will save more space for embedded vision
- Wide Compatibility: Compatible with any Microcontroller with a single standard SPI interface
- Check Mega SPI 3MP M12 Lens version here: B043401
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
Arducam New Mega 3MP SPI camera is the latest product developed by Arducam Team. The Ultra High Stability&Accuracy and Open Source API and SDK of this camera module can realize your project more effectively. The camera is featured Low Power Consumption and 42ms quick response. We equip the camera module with a 68.75-degree(DFOV) stock lens, ensuring zero focus latency and rock-solid stability in high-vibration IoT environments. What’s more, if off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
Applications
- loT Automation
- Assets Monitoring
- Space Journey
- Environmental Observation
- Dynamics Capture
Features
- Easy Using: Extremely easy to use. High-level commands were built in so you manipulate the camera through API access like using a DSLR camera via button clicks.
- Robust Fixed-Focus Reliability: Solid-state fixed-focus design eliminates moving mechanical parts, ensuring zero focus latency and rock-solid stability in high-vibration IoT environments.
- Open Source SDK: The SDK is fully open-source with MIT license. A lean architecture with a hardware abstraction layer, enabling you to add a new MCU without effort.
- One Fits All: It fits any microcontroller with a single standard SPI interface (either native or mimic). 8-bit, 16-bit, or 32-bit, ARM, RISC-V, or others. Arduino, STM8/STM32, ESP8266/ESP32, MSP430, Nordic, Renesas, Raspberry Pi Pico and countless more.
- Ultra-Low Power Profile: Consumes only 90mW at idle and 550mW under active workload, perfect for power-constrained IoT environments.
Specifications
| Camera Module | |
| Collection | Arducam Mega SPI Camera |
| Resolution | 3 Megapixels |
| Chroma | Color |
| Shutter Type | Rolling Shutter |
| Optical Format | 1/4" |
| Output Format | RGB/YUV/JPEG |
| Pixel Size | 1.78µm x 1.78µm |
| Sensor Active Area | 2048(H)×1536(V) |
| Sensor Image Area | 3.65 mm x 2.74 mm (4.567 mm diagonal) |
| Resolution List (JPEG/RAW/YUV) | 2048x1536, 1920x1080, 1600x1200; 1280x1024, 1024x768, 800x600; 640x480, 352x288, 320x240; 176x144, 160x120, 128x128, 96x96; |
| Default Lens | |
| Focus Type | Fixed Focus |
| FOV(DxHxV) | 68.75°(D)x50°(H)x37.5°(V) |
| Lens Mount | Stock Lens Mount |
| F.NO | F2.8 |
| E.F.L | 3.3mm |
| Default Focus Distance | 60cm~INF |
| IR Sensitivity | Integral 650nm IR Filter, visible light only |
| Functionality and Compatibility | |
| Interface | SPI |
| Supported Platforms | Arduino, ESP32, Raspberry Pi Pico, etc.. |
| SDK Support | Support |
| SPI Speed | Max 8MHz |
| Frame Buffer | 8MByte |
| Camera Controls | Saturation, Brightness, Contrast, Ev, White Balance, Special Effects, Exposure Time Adjustment, Gain, Image Quality, Rotation, Framerate Control; |
| Electrical and Mechanical | |
| Operating Voltage | 3.3V/5V |
| Electric Current (Idle/Working) | 40mA~160mA |
| Power Consumption (Idle/Working) | 90mW~550mW |
| Camera Board Size | 30x30mm |
| Camera Overall Weight (Net) | 17g |
| Overall Size | 33x33x17 mm |
| Standard and Certifications | |
| Temperature range (Storage) | -4°F-167°F (-20°C to +75°C) |
| Temperature range (Operating) | 32°F-122°F (0°C to +50°C) |
| Certification | RoHS, CE |
Package Including
- 1 x Arducam New Mega 3MP SPI Fixed-Focus Camera Module
- 1 x 300mm 6pin Dupont cable
Notes
- The package contains small contents, please keep it away from children to avoid accidental ingestion
- After receiving the package, please confirm whether the contents of the package are consistent with the description.
- No MCU board (Arduino, STM8/STM32, ESP8266/ESP32, Rpi Pico, etc) is included in the package.
- Arducam Mega Camera can be used on any Microcontroller board, but note that you will need the corresponding code and software to use it, please refer to the following documentation for details.
Documentation
- Arducam Mega SPI Camera
- Quick Start for Mega Camera
- Mega SPI Camera Application Note
- Troubleshooting
Video
"
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
