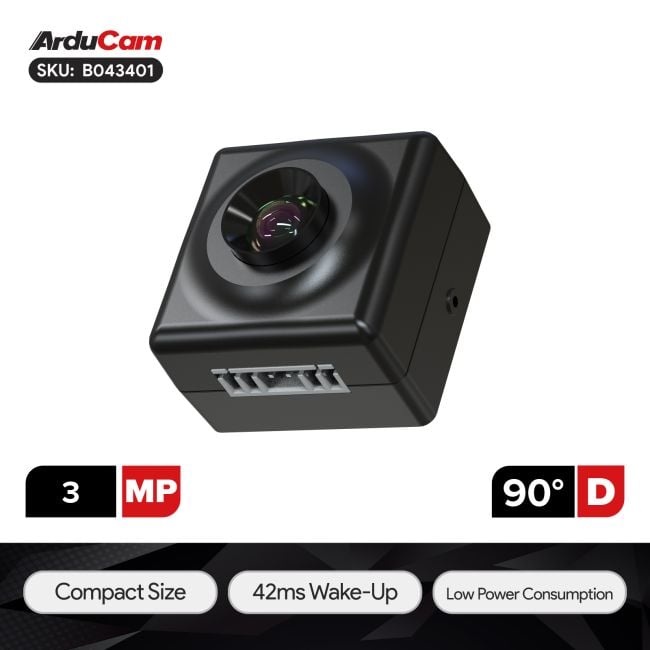

Arducam New 3MP Mega SPI Camera Module with M12 Lens for Any MCU
SKU
B043401
- Super Easy Using: High-level commands built-in, easy as a DSLR
- Quick Response & Power Saving: 42ms wake-up and consumption low as under 200mW
- Tiny Size: Ultra tiny size which will save more space for embedded vision.
- Wide Compatibility: Compatible with any Microcontroller with a single standard SPI interface
- Check Mega SPI 3MP Stock Lens version here: B0400.
$29.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
Arducam New Mega 3MP SPI camera is the latest product developed by Arducam Team. The Ultra High Stability&Accuracy and Open Source API and SDK of this camera module can realize your project more effectively. The camera is featured Low Power Consumption and 42ms quick response. Different from the Standard Mega 3MP Stock Lens FF Camera, we equip the camera with a Low Distortion 90-degree(DFOV) Wide Angle M12 Lens (TV Distortion<1.53%) for more realistic image output and more flexible lens options. What’s more, if off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
Applications
- loT Automation
- Assets Monitoring
- Space Journey
- Environmental Observation
Features
- Easy Using: Extremely easy to use. High-level commands were built in so you manipulate the camera through API access like using a DSLR camera via button clicks.
- Low Distortion M12 Lens: Equipped with an Low Distortion M12 Lens with 90-degree DFOV by default.
- Open Source SDK: The SDK is fully open-source with MIT license. A lean architecture with a hardware abstraction layer, enabling you to add a new MCU without effort.
- One Fits All: It fits any microcontroller with a single standard SPI interface (either native or mimic). 8-bit, 16-bit, or 32-bit, ARM, RISC-V, or others. Arduino, STM8/STM32, ESP8266/ESP32, MSP430, Nordic, Renesas, Raspberry Pi Pico and countless more.
- Multiplexing Support: Up to 4 cameras running on a single MCU by using an adapter board. They capture at the same time with sequential readout then.
Specifications
| Camera | |
| Collection | Arducam Mega SPI Camera |
| Resolution | 3 Megapixels |
| Chroma | Color |
| Shutter Type | Rolling Shutter |
| Optical Format | 1/4" |
| Output Format | RGB/YUV/JPEG |
| Pixel Size | 1.78µm x 1.78µm |
| Sensor Active Area | 2048(H)×1536(V) |
| Sensor Image Area | 3.65 mm x 2.74 mm (4.567 mm diagonal) |
| Resolution List (JPEG) | 2048x1536, 1920x1080; 1600x1200, 1280x1024, 1024x768; 800x600, 640x480, 352x288; 320x240, 176x144, 160x120; |
| Lens | |
| Focus Type | Fixed Focus |
| FOV(DxHxV) | 90°(D)x75°(H)x56.4°(V) |
| Lens Mount | M12 Mount |
| F.NO | F2.8 |
| E.F.L | 2.8mm |
| TV-Distortion | <1.53% |
| IR Sensitivity | Integral 650nm IR Filter, visible light only |
| Default Focus Distance | 60cm~INF |
| Weight | 5g |
| Functionality and Compatibility | |
| Interface | SPI |
| Supported Platforms | Arduino, ESP32, Raspberry Pi Pico, etc.. |
| SDK Support | Support |
| SPI Speed | Max 8MHz |
| Frame Buffer | 8MByte |
| Camera Controls | Saturation, Brightness, Contrast, Ev, White Balance(Auto, Sunny, Office, Cloudy, Home), Special Effects(Normal, BW, Negative, Blueish, Reddish, etc.), Exposure Time Adjustment, Gain, Image Quality, Rotation(0, 180) |
| Electrical and Mechanical | |
| Operating Voltage | 3.3V/5V |
| Electric Current (Idle/Working) | Max:69mA/317mA |
| Power Consumption (Idle/Working) | Max:0.3w/1.58w |
| Camera Board Size | 30x30mm |
| Camera Overall Weight (Net) | 19.2g |
| Overall Size | 34x34x25.6mm |
| Standard and Certifications | |
| Temperature range (Storage) | -4°F-167°F (-20°C to +75°C) |
| Temperature range (Operating) | 32°F-122°F (0°C to +50°C) |
| Certification | RoHS |
Package Including
- 1 x Arducam New 3MP Mega SPI M12 Camera module for MCU
- 1 x 300mm 6pin Dupont cable
Notes
- The package contains small contents, please keep it away from children to avoid accidental ingestion
- After receiving the package, please confirm whether the contents of the package are consistent with the description.
- No MCU board (Arduino, STM8/STM32, ESP8266/ESP32, Rpi Pico, etc) is included in the package.
- When outputting JPEG images, the camera supports a maximum resolution of 2048x1536. In YUV/RAW format, the maximum output resolution is 1920x1080.
- Arducam Mega Camera can be used on any Microcontroller board, but note that you will need the corresponding code and software to use it, please refer to the following documentation for details.
- To protect the optimized focus achieved at the factory, the lens is fixed with adhesive. If you need to install a different M12 lens, please remove the existing adhesive first to avoid damage to the module.
Documentation
- Arducam Mega SPI Camera
- Quick Start for Mega Camera
- Mega SPI Camera Application Note
- Troubleshooting
Video
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
