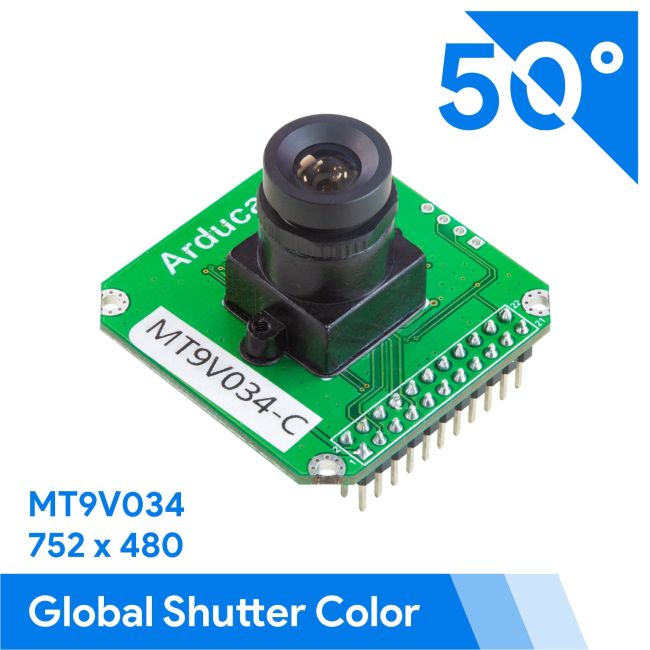

[Discontinued] Arducam 0.36MP MT9V034 Color 1/3" CMOS Camera Module
SKU
B0099
Note: This product was discontinued. Check alternative solutions B0368, EK031
USB 3.0 quick development and evaluation board for sensors like MT9V034.
$49.99
Overview
Specifications
Wiki
Documents
Video
Customization
Overview
The MT9V034 is a 1/3-inch color wide-VGA format CMOS active-pixel digital image sensor with a global shutter and high dynamic range (HDR) operation. The sensor has specifically been designed to support the demanding interior and exterior surveillance imaging needs, which makes this part ideal for a wide variety of imaging applications in real-world environments. High frame rate, high dynamic range, good sensitivity for machine vision with an external trigger.
Features
- 1/3" optical format
- 0.36MP 752 x 480 MT9V034 global shutter sensor
- 6.0 x 6.0 um Pixel size
- 60fps at full resolution
- 4.8V/lux-sec responsivity
- 55db linear, 110db HDR dynamic range
- single 3.3V power input
- Default M12 mount 6mm LS-6020 lens
Applications
- Security
- High dynamic range imaging
- Unattended surveillance
- Stereo vision
- Video as input
- Machine vision
- Automation
Package including
- 1 pcs Arducam CMOS MT9V034 1/3-Inch 0.36MP color Camera Module
- NOTE: The camera module only can be used together with Arducam USB shield
Documentation
Camera Breakout Board Introduction
Arducam now offers the camera breakout boards for customers who want to build prototypes or put the boards into their products. Users don’t need to handle with the tiny and fine pin pitch camera module connector and high speed signal connectivity, just take it for granted. The camera resolution is ranging from 0.3MP to 16MP […]
User guide.pdf
Datasheet.pdf
Application note.pdf |
Blog
Arducam USB3.0 Camera Shield
Introduction Arducam USB3 camera shield is the latest USB3.0 camera shields, it offers the improved performance and enhanced functions than the previous USB2.0 camera shield. It not only supports high resolution and high frame rate image sensors, but also supports stereoscopy camera and IRCUT control feature. With the given camera configuration files, user can switch […]
Video
GitHub
How to purchase
You can purchase this item from Arducam distributors
Customization
About Arducam's Customization Services:
If off-the-shelf solutions don't meet your needs, Arducam offers end-to-end custom camera design services to help you turn your ideas into real products. From early concept to mass production, we work closely with you to tailor an imaging solution to meet your unique technical requirements and product goals.
What can Arducam customize?
Sensor/Lens/circuit/interface;
Optical filter/housing/ISP, and more.
For more information about Arducam's custom design, please refer to: Arducam Custom Design
